RY 420 EVO

ASSEMBLING FOR FIELD REPAIR
BENCHTOP CRIMPING MACHINE

KEY FEATURES:
• High crimping force of 420 tonnes
• Robust design for transport and operation in harsh environments
• Protected cylinders for trouble-free operation in high dust environments
• Large opening suitable for large bore hoses
• Easy maintenance due to dust collector foam pads

CAPACITY*:
6ws: 3” max.
Industrial: 4” max.

CRIMP RANGE:
4 – 130 mm (0.157 – 5.118”)

CRIMP FORCE:
420 t

OPENING WITH DIES:
+48 mm (+1.9 inch)

COMPLETE OPENING:
178 mm (7.0 inch)

MASTER DIE LENGTH:
120 mm (4.724 inch)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76

NOISE LEVEL:
<70 dB A

MOTOR:
5.5 kW

VOLTAGES:
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz

DIMENSIONS:
765 x 500 x 800 mm
(30 x 20 x 32“)

PACKAGING:
745 x 1150 x 945 mm

NET WEIGHT:
396 kg (871 lb)

*Indicative capacities depending on hose and fitting type.

Available on request.


SC	SCE	SCS

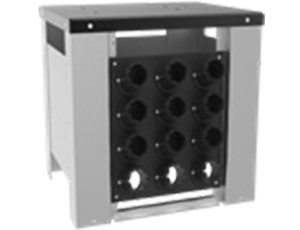

Maintenance Kits	Die Storage Panel	Electrical Footswitch	Die Storage Table EVO	Die Storage Table

Aluminium Quick Change Gun	Digital Caliper	Die Sets for Brake & Air Conditioning Hoses	Mechanical Backstop	Die Storage Panel EVO

Marking Dies

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
