RY 350 EVO / L

FULL SERVICE WORKSHOP
BENCHTOP; VERY HIGH CRIMP FORCE

KEY FEATURES:
• Crimp force up to 350 tonnes for hoses up to 3”
• Easy to use and robust
• Automatic maintenance alerts
• Groove for 90° long drop fittings
• Also available as S CRIMP 350 L with 4.0 kW motor

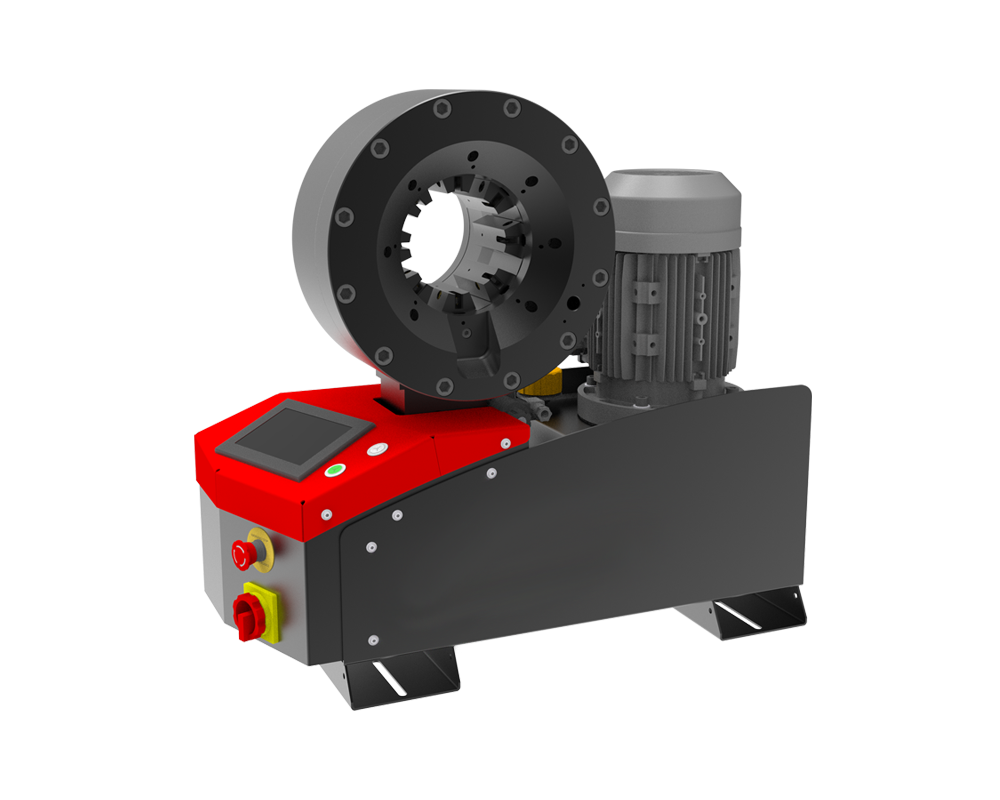

• Model shown equipped with SCS control panel

CAPACITY*:
2wb: 3” max.
Industrial: 4” max.
4ws: 2” max.
6ws: 2” max.

CRIMP RANGE:
4 – 130 mm (0.157 – 5.118”)

CRIMP FORCE:
350 t

OPENING WITH DIES:
+54 mm (+2.125”)

COMPLETE OPENING:
180 mm (7.086”)

MASTER DIE LENGTH:
115 mm (4.523”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70, 73, 76

NOISE LEVEL:
<70 dB A

MOTOR:
5.5 kW / 4 kW

VOLTAGES:
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
380/415 V, 3Ph, 60 Hz

DIMENSIONS:
765 x 400 x 750 mm
(30 x 16 x 30”)

NET WEIGHT:
262 kg (578 lb)

TECHNICAL FEATURES:
Automatic maintenance alerts
-Cylinder protection against dust – durable design
-Also available as S CRIMP 350 EVO L with 4.0 kW Motor

*Indicative capacities depending on hose and fitting type.

Available on request.


SC	SCE	SCS


Maintenance Kits	Die Storage Panel	Electrical Footswitch	Die Storage Table EVO	Die Storage Table

Aluminium Quick Change Gun	Digital Caliper	Die Sets for Brake & Air Conditioning Hoses	Marking Dies	Die Storage Panel EVO

Mechanical Backstop
