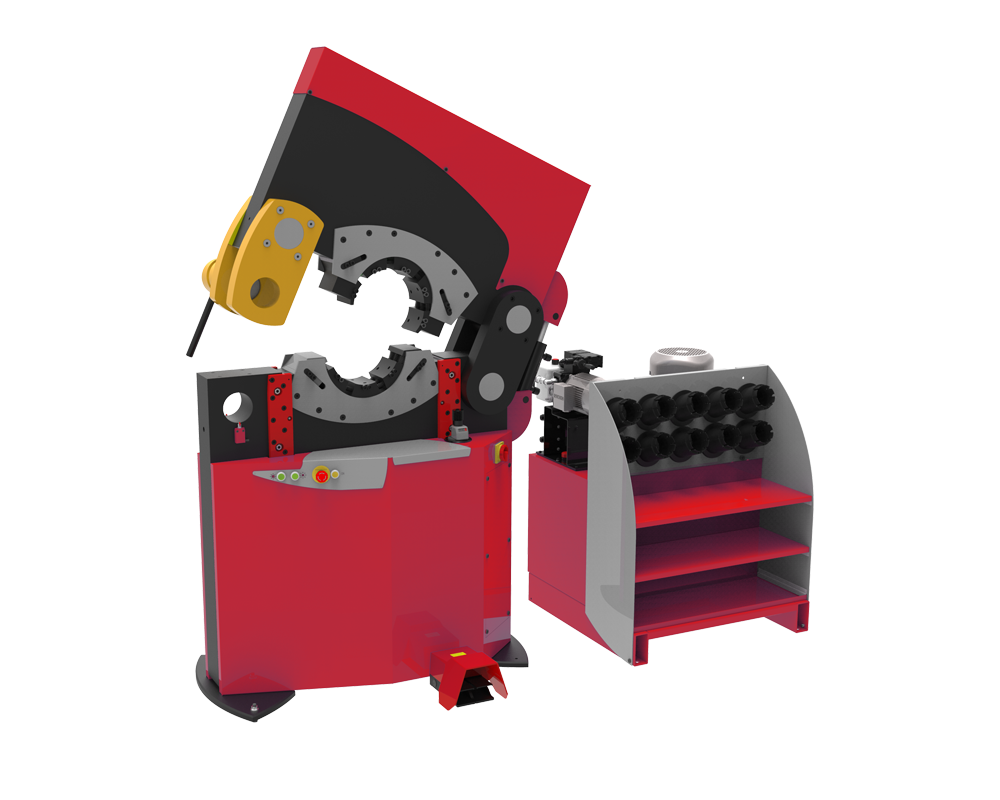

RY 320 OH XL

XXL WORKSHOP

KEY FEATURES:
• Unique on market
• Lateral opening
• No limit on end connection diameter
• Easy to use
• Separated power pack
• Integrated safety system

CAPACITY*:
Industrial: 6”

CRIMP RANGE:
4 – 230 mm (0.157 – 9.055”)

CRIMP FORCE:
320 t

OPENING WITH DIES:
+55 mm (+2.165 ”)

COMPLETE OPENING:
260 mm (10.236”)

LATERAL OPENING:
247 mm (9.724”)

MASTER DIE LENGTH:
125 mm (4.921”)

MOTOR:
5.5 kW

VOLTAGES:
230 V, 3 Ph
400 V, 3 Ph

MACHINE DIMENSIONS:
1265 x 680 x 1800 mm
(50 x 27 x 71”)

POWER PACK-DIMENSIONS:
890 x 800 x 1050 mm
(35 x 31 x 41”)

MACHINE WEIGHT:
1700 kg (3748 lb)

TECHNICAL FEATURES:
Die sizes available upon request

*Indicative capacities depending on hose and fitting type.


Electrical Footswitch	Die Storage Penel


Double Footswitch	SCS Safe Crimp System

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
