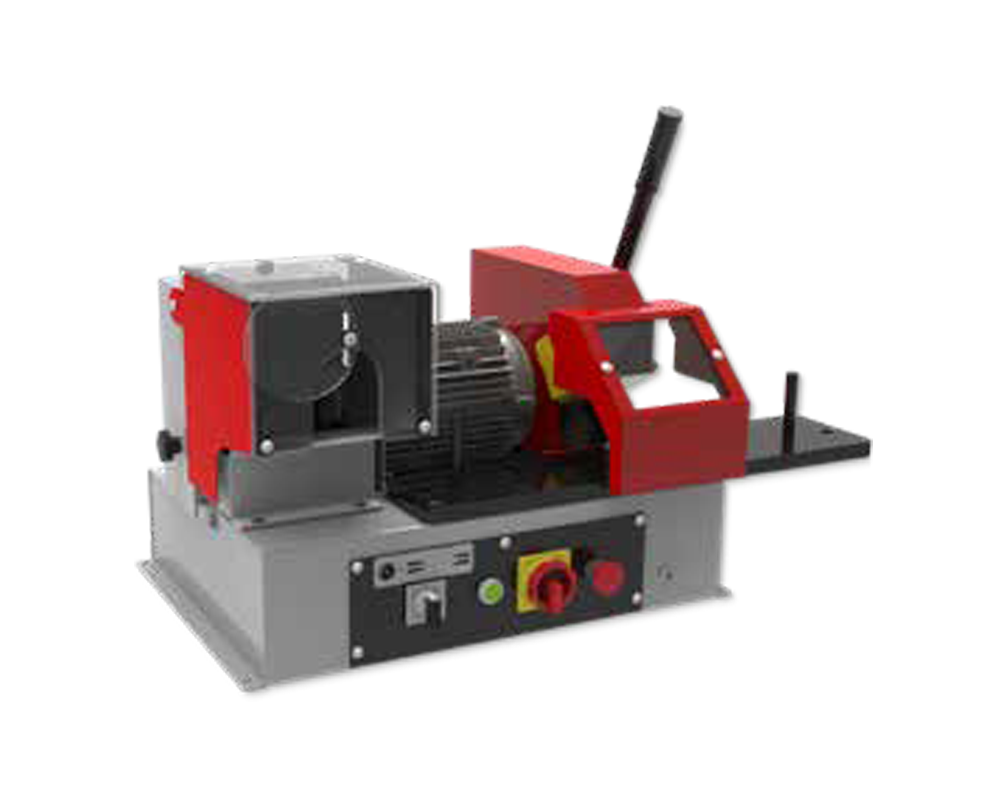

RY 30 CUT & SKIVE

STARTER & PROFESSIONAL WORKSHOP
BENCHTOP CUTTING MACHINE, OPTIONAL SKIVING

KEY FEATURES:
• Compact design
• Two operations in one machine
• Easy and safe to use
• Versatile, scalloped blade for high performance and efficient cutting with minimal smoke
• Dust free skive operation (drawers for dust collection)
• Electronic brake

CAPACITY:
2wb: 2” max.
4ws: 2” max.
6ws: 1¼” max.
Industrial: 2” max.

ROTATION SPEED (CUT):
3000 rpm

ROTATION SPEED (SKIVE):
200 rpm

SCALLOPED BLADE DIAMETER:
300 mm (11.8”)

MAX HOSE OD.:
85 mm (3.346”)

MOTOR:
2.2 kW

VOLTAGES:
220/240 V, 1Ph, 50/60 Hz
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz
Other voltages available on request

DIMENSIONS:
835 x 545 x 640 mm
(33 x 21 x 25”)

PACKAGING:
1170 x 770 x 1100 mm
46 x 30 x 43”

NET WEIGHT:
85 kg (187 lb)

GROSS WEIGHT:
100 kg (220 lb)

TECHNICAL FEATURES:
Skiving tools for External Skiving (ESE) and for Internal Skiving (IS) to be ordered separately.


Scalloped Blade	2 Dust Collectors


Cutting Rail	Tool Kit ESE	Smoke Extractor *except version 12/24V	Tool Kit IS
