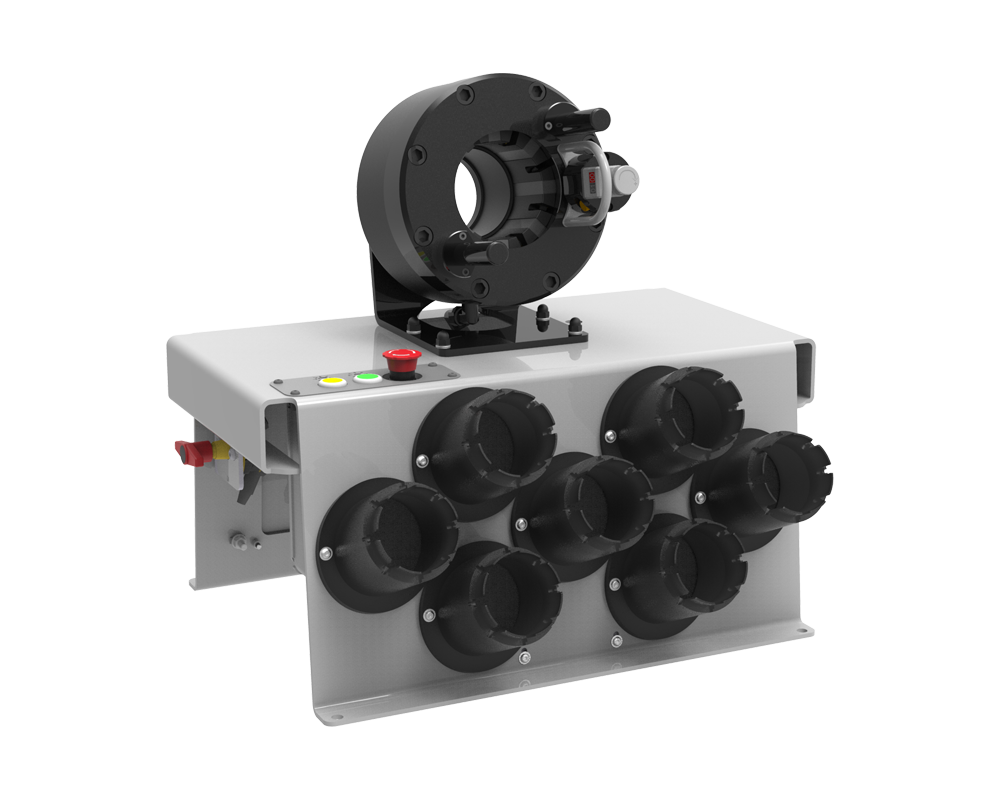

RY 240 V / RY 240 VL

FIELD SERVICE & MOBILE WORKSHOP
MOBILE VAN

KEY FEATURES:
• Robust design
• Ergonomic micrometer
• High crimping speed
• Radial movement of the dies
• Cylinder protection
• Remote head mounting option possible

CAPACITY*:
2wb: 2” max.
4ws: 2” max.
6ws: 1” 1/4 max.

CRIMP RANGE:
4 – 76 mm (0.157 – 2.992”)

CRIMP FORCE:
240 t

OPENING WITH DIES:
+38 mm (+1.496”)

COMPLETE OPENING:
118 mm (4.646”)

MASTER DIE LENGTH:
100 mm (3.937”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36, 39, 42, 45, 48, 51, 57, 63, 66, 70

NOISE LEVEL:
72 dB A

MOTOR:
2.0 kW

VOLTAGES:
12 / 24 V
220/240 V, 3Ph, 50 Hz
380/415 V, 3Ph, 50 Hz
208/240 V, 3Ph, 60 Hz

DIMENSIONS:
650 x 550 x 670 mm
320 x 360 x 350 mm**

PACKAGING:
800 x 600 x 830 mm

NET WEIGHT:
118 kg / 130 kg**

GROSS WEIGHT:
180 kg / 180 kg**

DIMENSIONS OF POWER PACK:
440 x 320 x 320 mm**

*Indicative capacities depending on hose and fitting type.
** L Version


Maintenance Kits	Die Storage Panel	Aluminium Quick Change Gun	Battery	Die Sets for Brake & Air Conditioning Hoses

Front Die Storage	Marking Dies

Remote Head Mounting

RY-137-V-137-VL-head-mounting
