Additional information

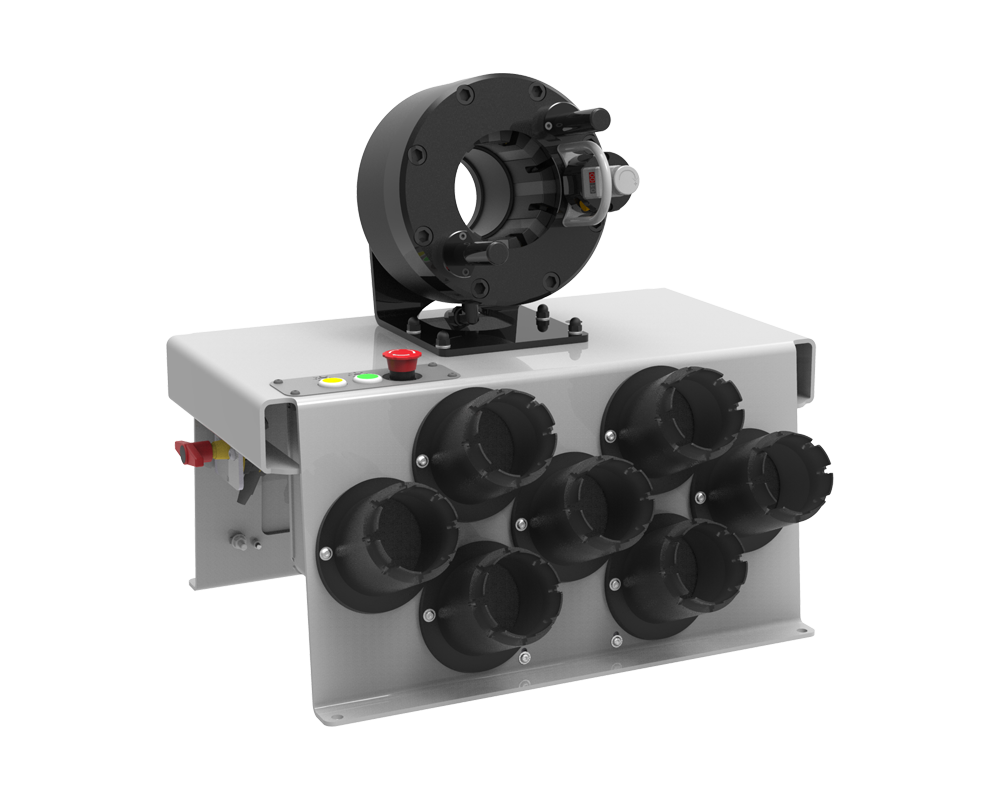

RY 137 V / 137 VL

FIELD SERVICE & MOBILE WORKSHOP
MOBILE VAN

KEY FEATURES:
• Robust and compact design
• Lightweight
• High crimping speed
• Suitable also for 90° elbow fittings
• Cylinder protection
• Remote head mounting option possible

CAPACITY*:
2wb / 4ws: 1”¼ max.
Industrial: 1”1/2 max.

CRIMP RANGE:
4-70 mm (0.157 – 2.756”)

CRIMP FORCE:
137 t

OPENING WITH DIES:
+28 mm (+1.102”)

COMPLETE OPENING:
108 mm (4,252”)

MASTER DIE LENGTH:
75 mm (2.953”)

STANDARD DIES:
14, 16, 18, 20, 22, 24, 27, 30, 33, 36,
39, 42, 45, 48, 51

NOISE LEVEL:
<72 dB A

MOTOR:
2.0 kW

VOLTAGES:
+12/24V

DIMENSIONS:
650 x 550 x 610 mm
250 x 320 x 300 mm**

PACKAGING:
800 x 600 x 830 mm

NET WEIGHT:
103 kg / 86 kg**

GROSS WEIGHT:
120 kg / 102 kg**

DIMENSIONS OF POWER PACK:
440 x 320 x 320 mm**

*Indicative capacities depending on hose and fitting type.
** L Version


Maintenance Kits	Die Storage Panel	Aluminium Quick Change Gun	Battery	Die Sets for Brake & Air Conditioning Hoses

Marking Dies

Remote Head Mounting

RY-137-V-137-VL-head-mounting

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
