RSG

CONSTRUCTION:
Polyethylene plastic spiral, with rounded edges to protect hose cover. RSG Black; RSGY Yellow; RSGF FRAS (Dark Grey).
Polyethylene is not affected by exposure to air, water, hydraulic oil and many other fluids.

TEMPERATURE RANGE:
From -40°C to +120°C (-40°F to +248°F).

ASSEMBLY INSTRUCTIONS:
RYCO Spiral Guard can easily be applied after hose assembly because of its spiral form. Place one end of completed hose assembly in a vice. Wrap coil onto hose. It is recommended to choose RYCO Spiral Guard size so that it is a tight fit on the hose.

This will keep the Spiral Guard in place on the hose. The Spiral Guard expands to fit the hose or hose bundle. Allow extra length of Spiral Guard to allow for this expansion.

SIZE SELECTION:

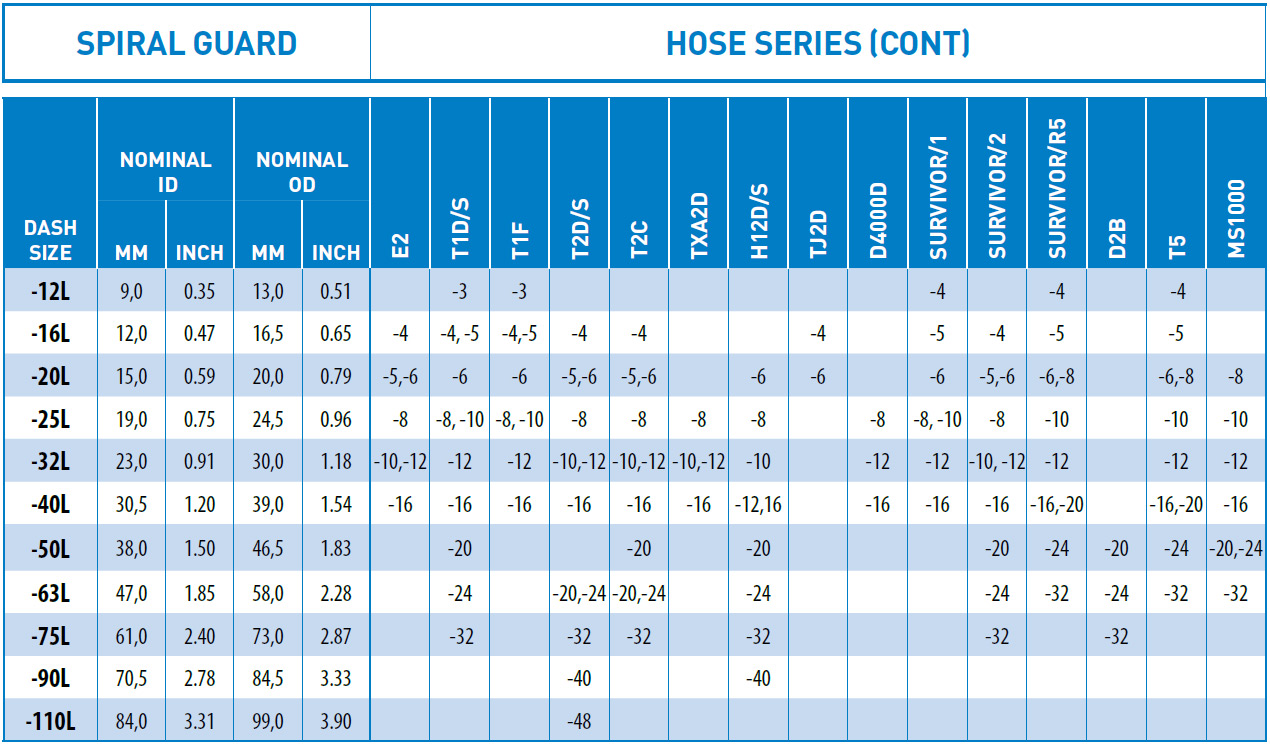

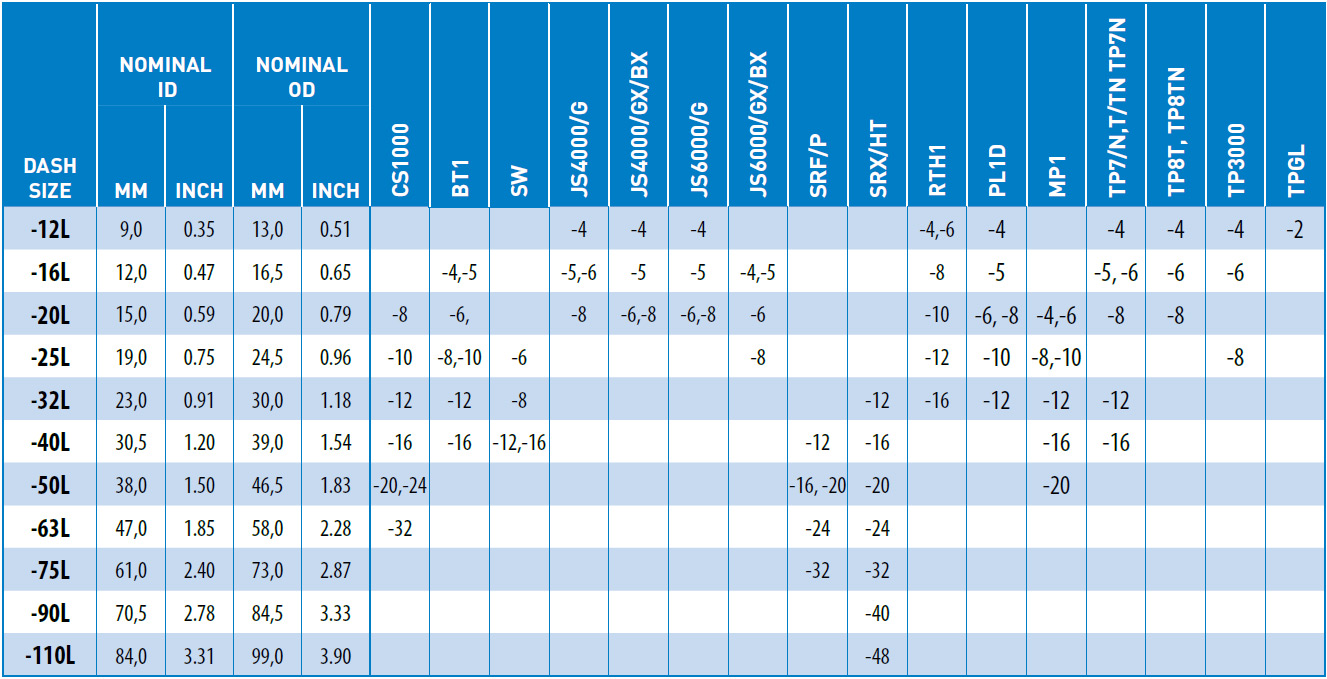

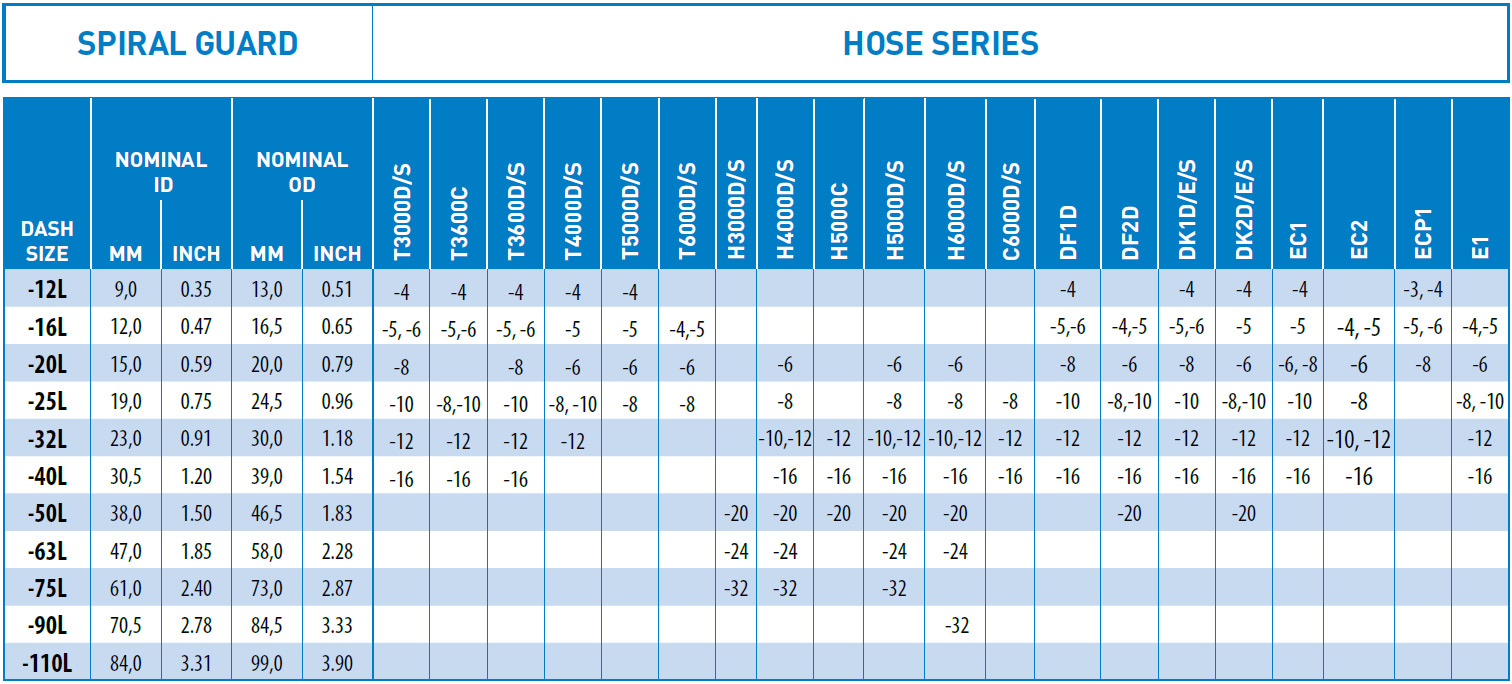

The tables below show RYCO Spiral Guard size selection for a tight fit on the hose. Due to the Spiral Guard expanding to fit the hose, extra length of Spiral Guard must be allowed. This extra length can be estimated as follows:
T26A Nominal OD = 18.9 mm
RSG-20L Nominal ID = 15.0 mm (from chart below)
Estimated length of RSG-20L to cover 2.3 metres of T26A
= 18.9
 15.0 x 2.3 m = 2.9 metres

HOW TO ORDER:
Complete the Part Number: RSG-16L, RSGY-75L, RSGF-50L etc. Sizes -16L to -90L: 20 m (65.6 ft) coils or cut to length. Size -110L: 10 m (32.8 ft) coils or cut to length.
