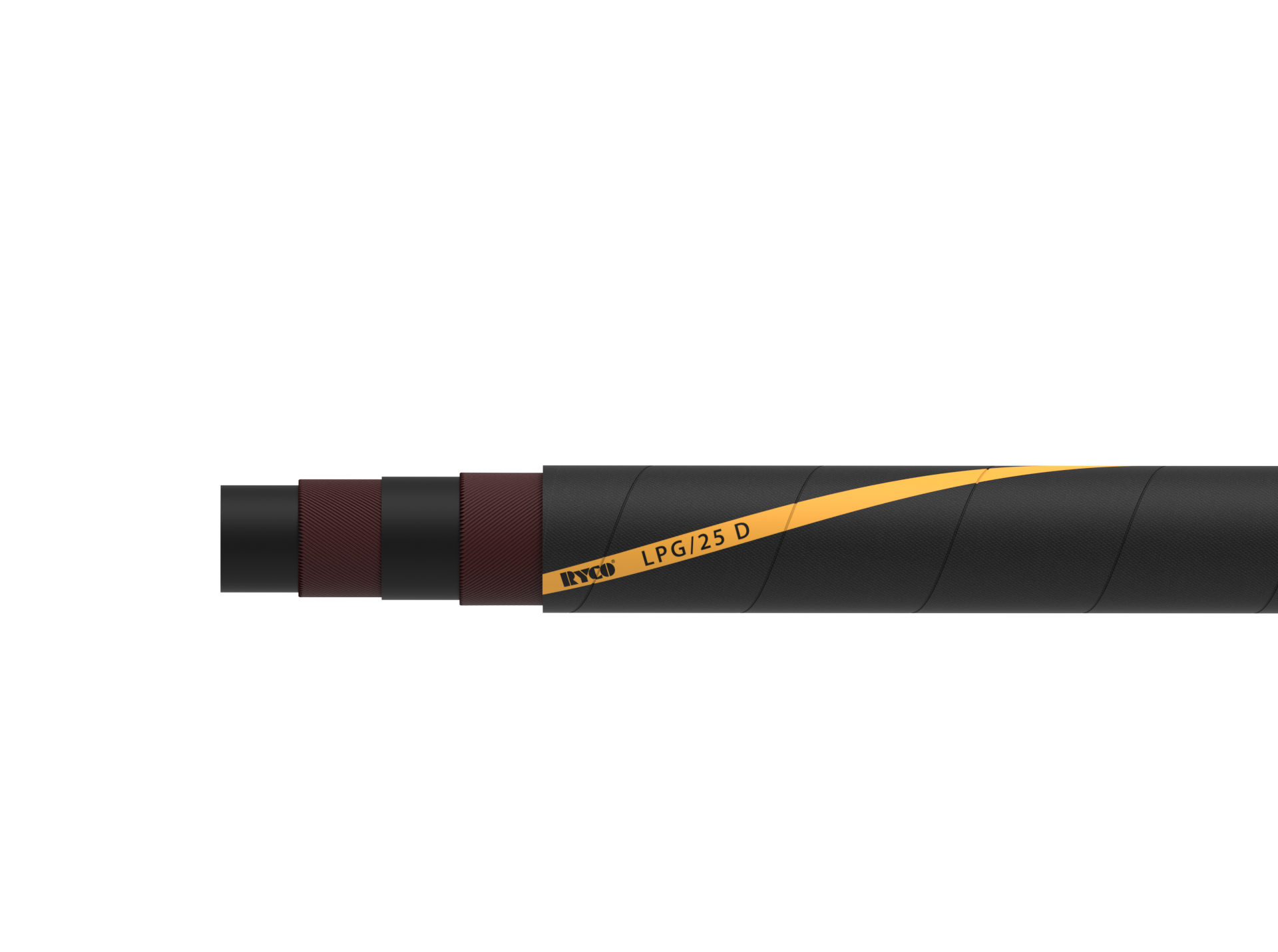

LPG/25 D
Additional information
LPG/25 D

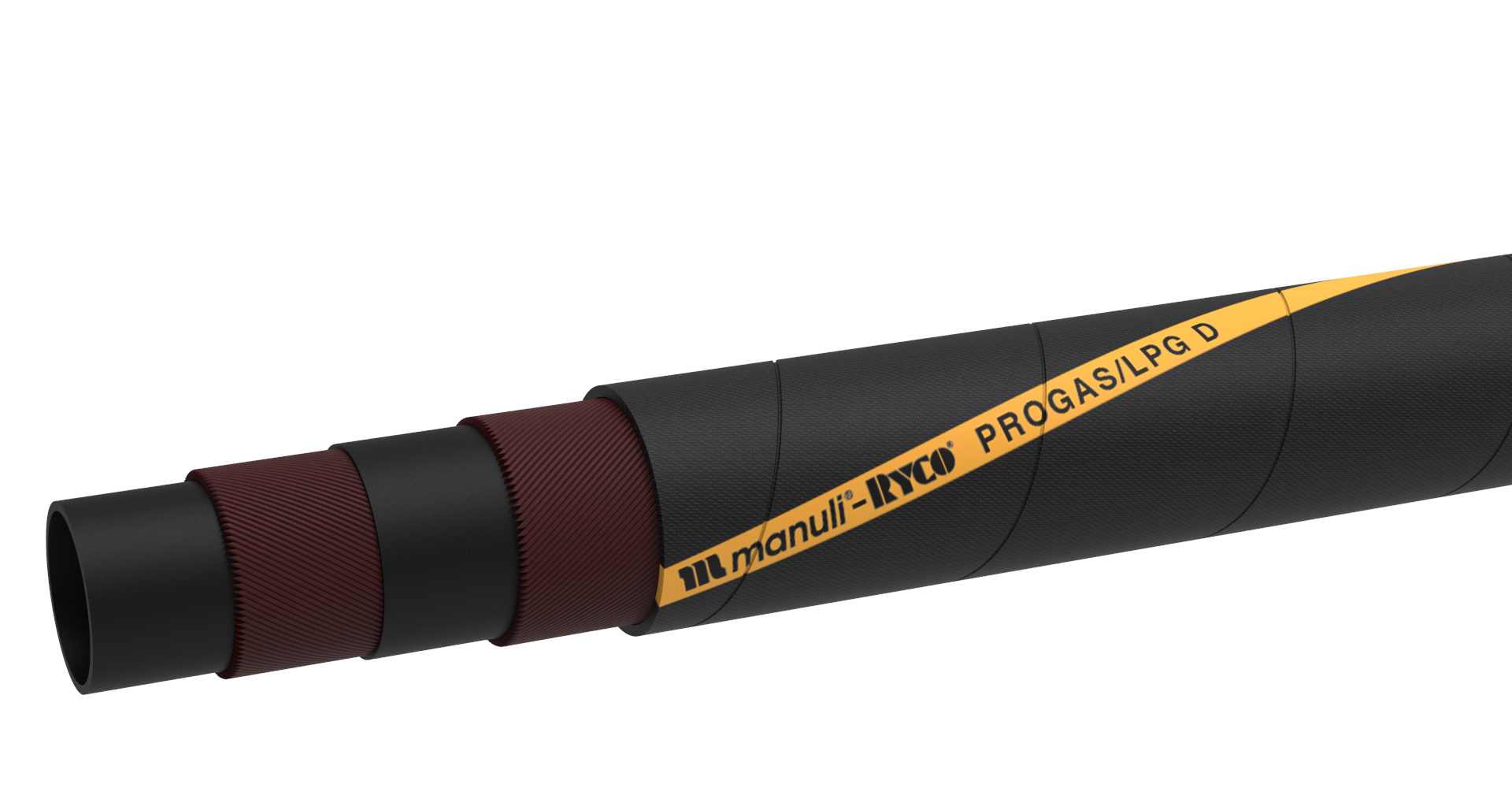

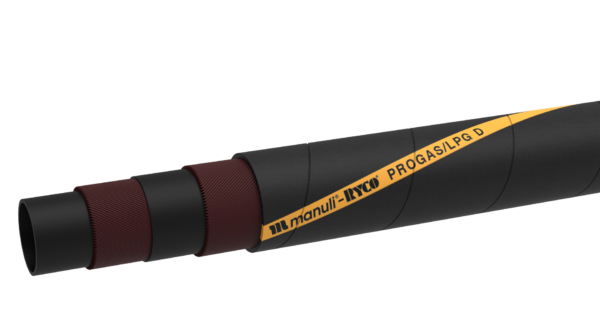

Delivery hose for LPG.
TUBE:
Black NBR conductive rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black, pin-pricked CR rubber, fire-proof, anti-static (R<106 Ohm/m), oil, abrasion and weathering resistant.
KEY FEATURES:
Hardwall delivery structure.
Compact, lightweight and flexible.
Robust hose structure for longer life in severe applications.
Long length assemblies available – Max length: 40m (DN12 -DN19); 50m (DN25 – DN 51); 61m (DN 63 – DN 102).
APPLICATION & FLUIDS:
Delivery hose for LPG.
TEMPERATURE RANGE:
From -30°C to + 70°C (-22°F to +158°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN 1762 Type D / TRbF.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| LPG/25 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| LPG25D8 | 12 | 1/2″ | SR+D08000 SERIES |
| LPG25D10 | 16 | 5/8″ | SR+D08000 SERIES |
| LPG25D12 | 19 | 3/4″ | SR+D08000 SERIES |
| LPG25D16 | 25 | 1″ | SR+D08000 SERIES |
| LPG25D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| LPG25D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| LPG25D32 | 51 | 2″ | SR+D08000 SERIES |
| LPG25D40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| LPG25D48 | 76 | 3″ | SR+D08000 SERIES |
| LPG25D64 | 102 | 4″ | SR+D08000 SERIES |
