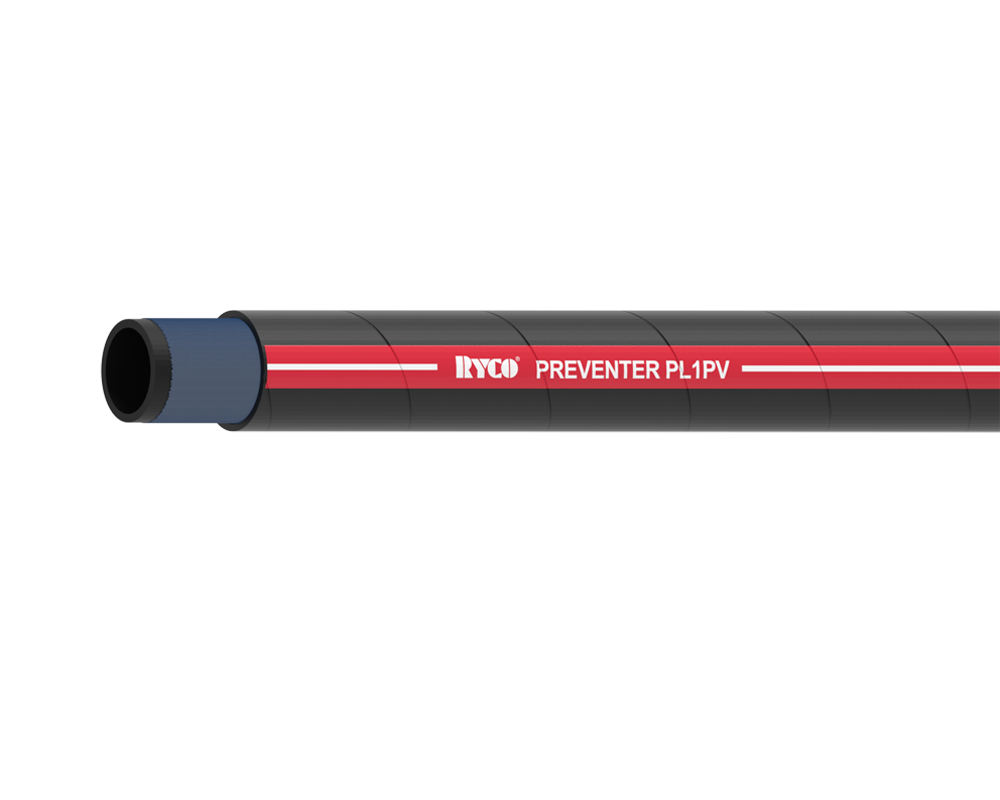

PL1PV-Preventer-Textile-Braid

Additional information

PL1PV

RYCO PREVENTER

FIRE RESISTANT UL94 V-0
ONE TEXTILE BRAID HOSE
PUSH ON HOSE

RECOMMENDED FOR:
Petroleum base hydraulic oils, glycol antifreeze solutions, water, diesel fuels, and air.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
AS 3791 100R6, ISO 4079 Type 1, SAE 100R6.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
One textile braid.

COVER:
Black, oil and flame resistant synthetic rubber. Highly visible layline branding for easy and permanent identification. No skiving required with T4000 Series Crimp Couplings.

FLAME RESISTANCE:
Meets flame resistance requirements of UL94 V-0 – Standard for tests of flammability of plastic materials for parts and appliances. Certification No 20170622-E489804.

 TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure). PL1PV Hose, and 8000 Series Push-On Fittings, are recommended for use in systems with Static Working Pressures (constant loads without pressure spikes) only. They are not recommended for vibration or pressure surge applications. PL1PV Hose should not be used at both maximum working pressure and maximum temperature simultaneously.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T4000 Series (Sizes -04 to -12).

FIELD ATTACHABLE NON-SKIVE
8000 Series Push-On (sizes -04 to -12).
PL1PV Hose simply pushes on to 8000 Series Couplings.
For diesel fuel and other potentially dangerous, or critical applications crimp fittings are required.

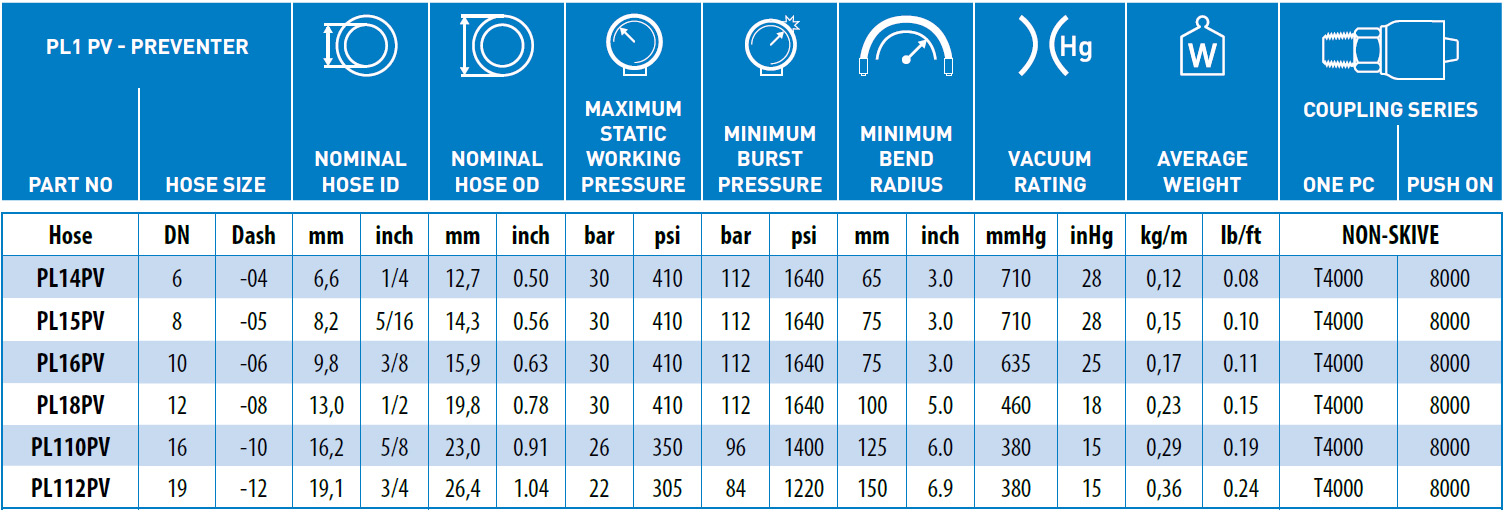

PL1-PV-Preventer-data

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
