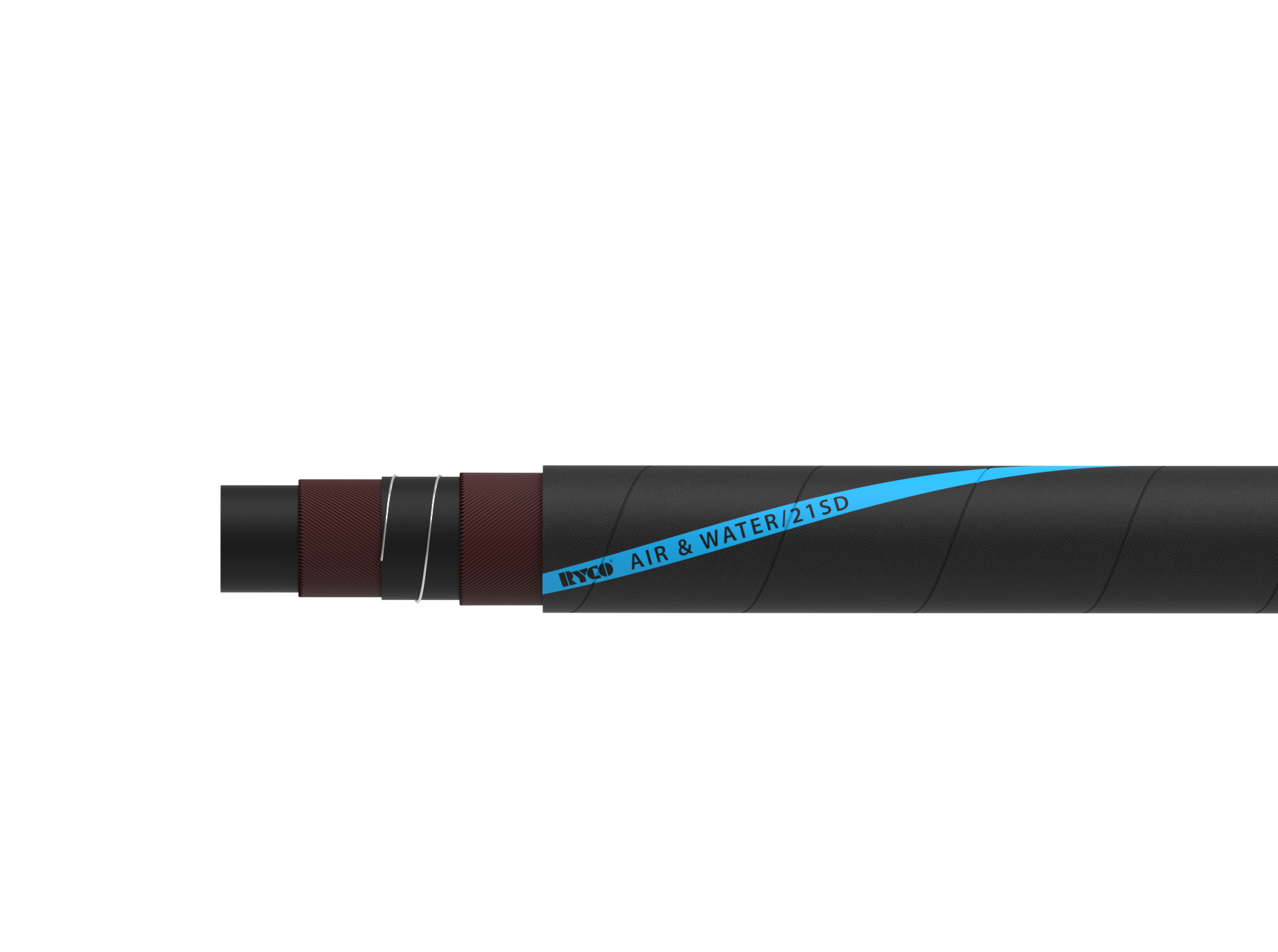

AIR & WATER/21 SD
Additional information
AIR & WATER/21SD
Water & air hose heavy duty.
TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air, to be used in heavy duty mining, construction, shipyards, etc.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
Market Fittings.
| AIR & WATER/21 SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AW21SD32 | 51 | 2″ | SR+D08000 SERIES |
| AW21SD48 | 76 | 3″ | SR+D08000 SERIES |
| AW21SD64 | 102 | 4″ | SR+D08000 SERIES |
| AW21SD96 | 152 | 6″ | SR+D08000 SERIES |
