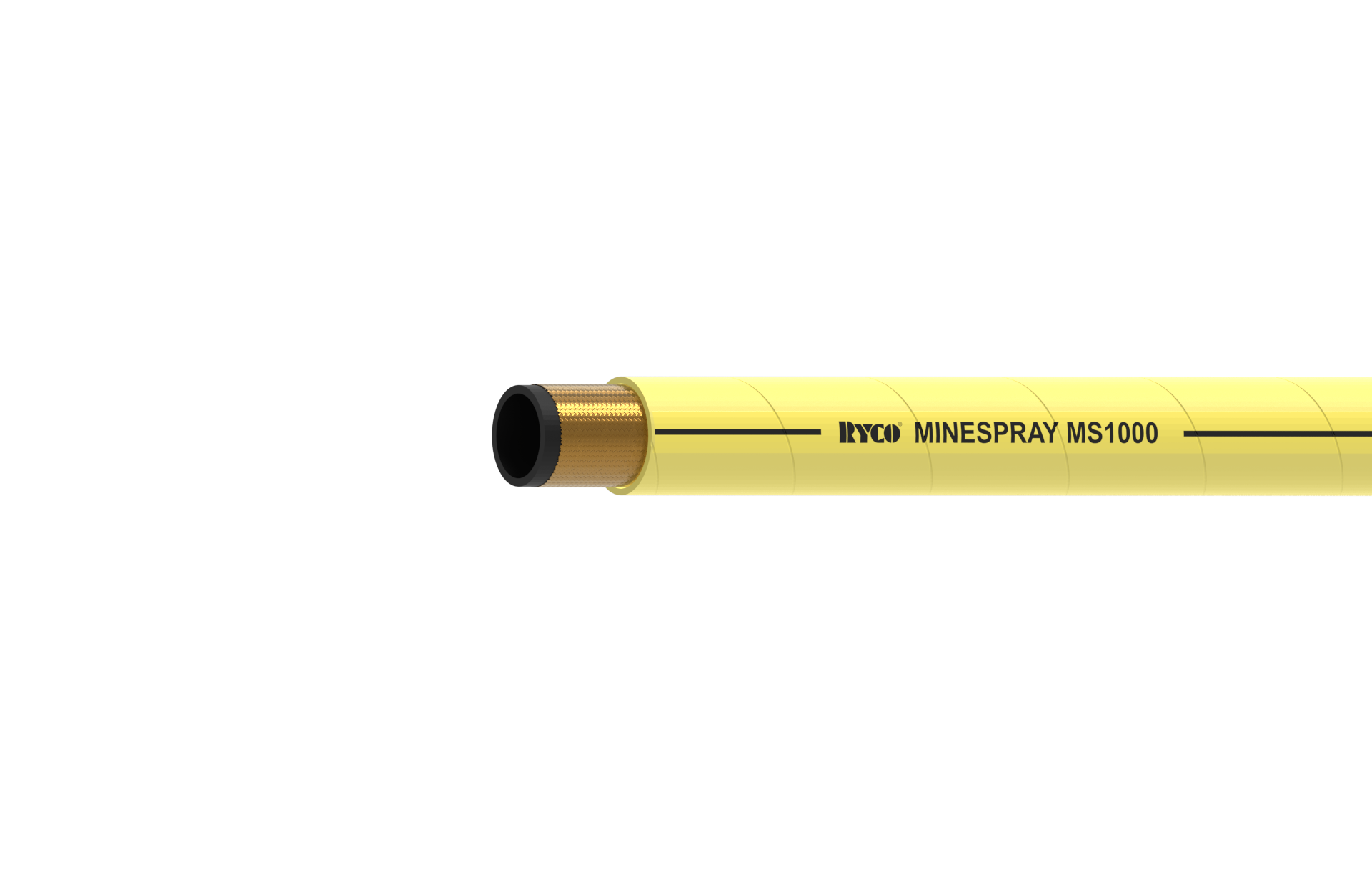

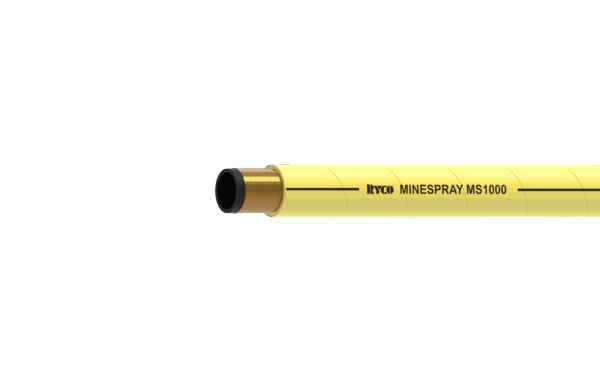

MS1000 MINESPRAY

RECOMMENDED FOR:
Water and air spray suited for dust control in all industrial and mining applications.

TUBE:
Black, oil resistant synthetic rubber. Cover is perforated (pin-pricked).

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Yellow, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

MSHA – FLAME RESISTANCE:
Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series.
