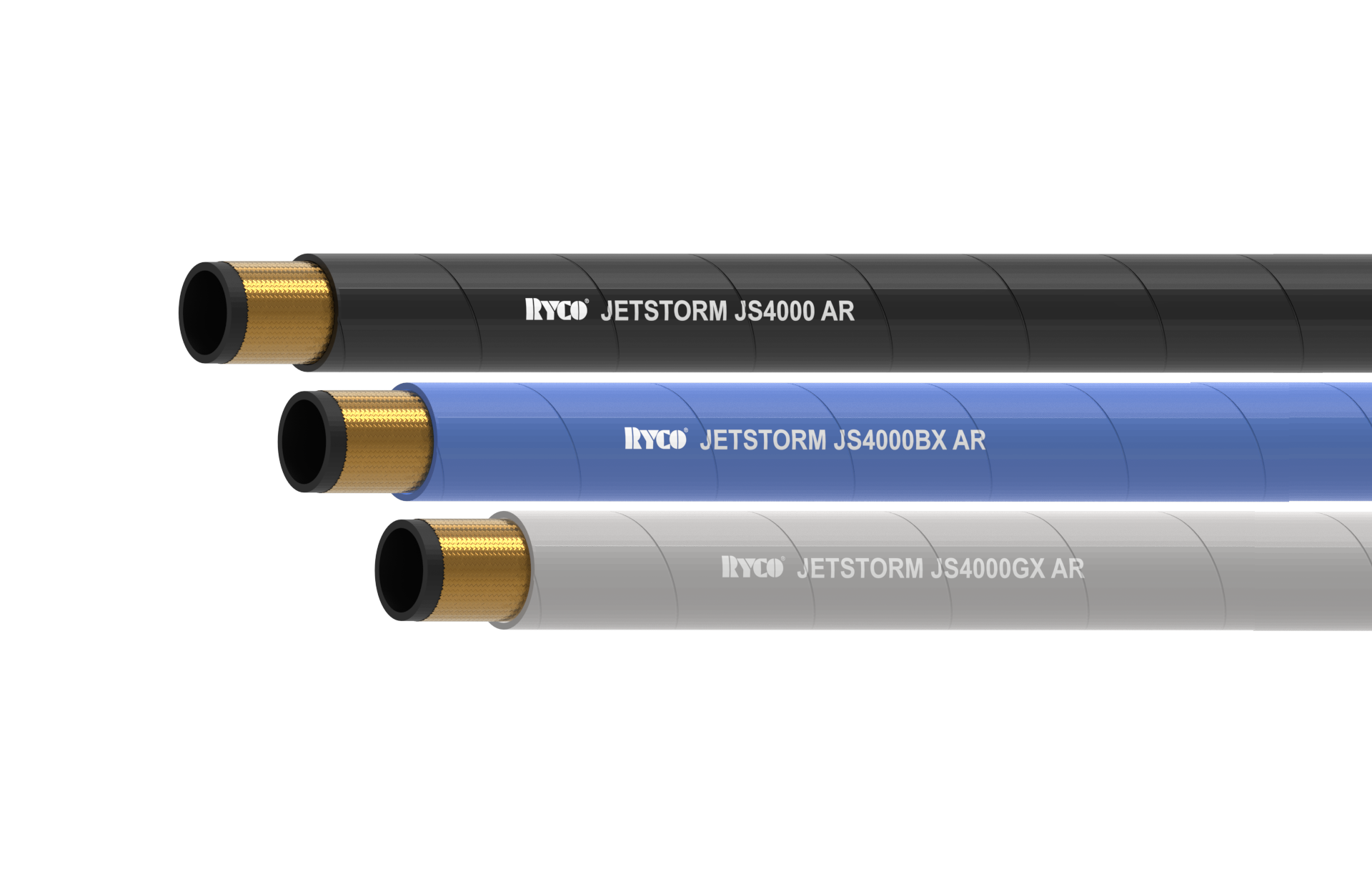

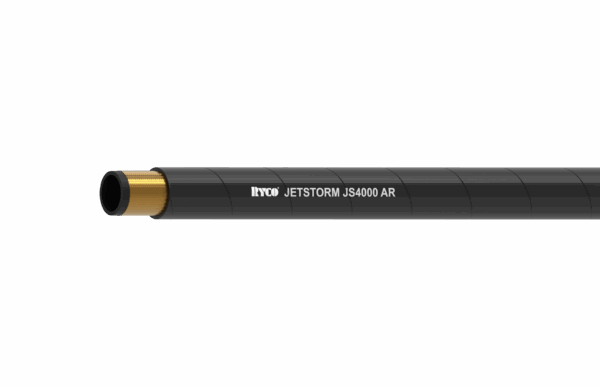

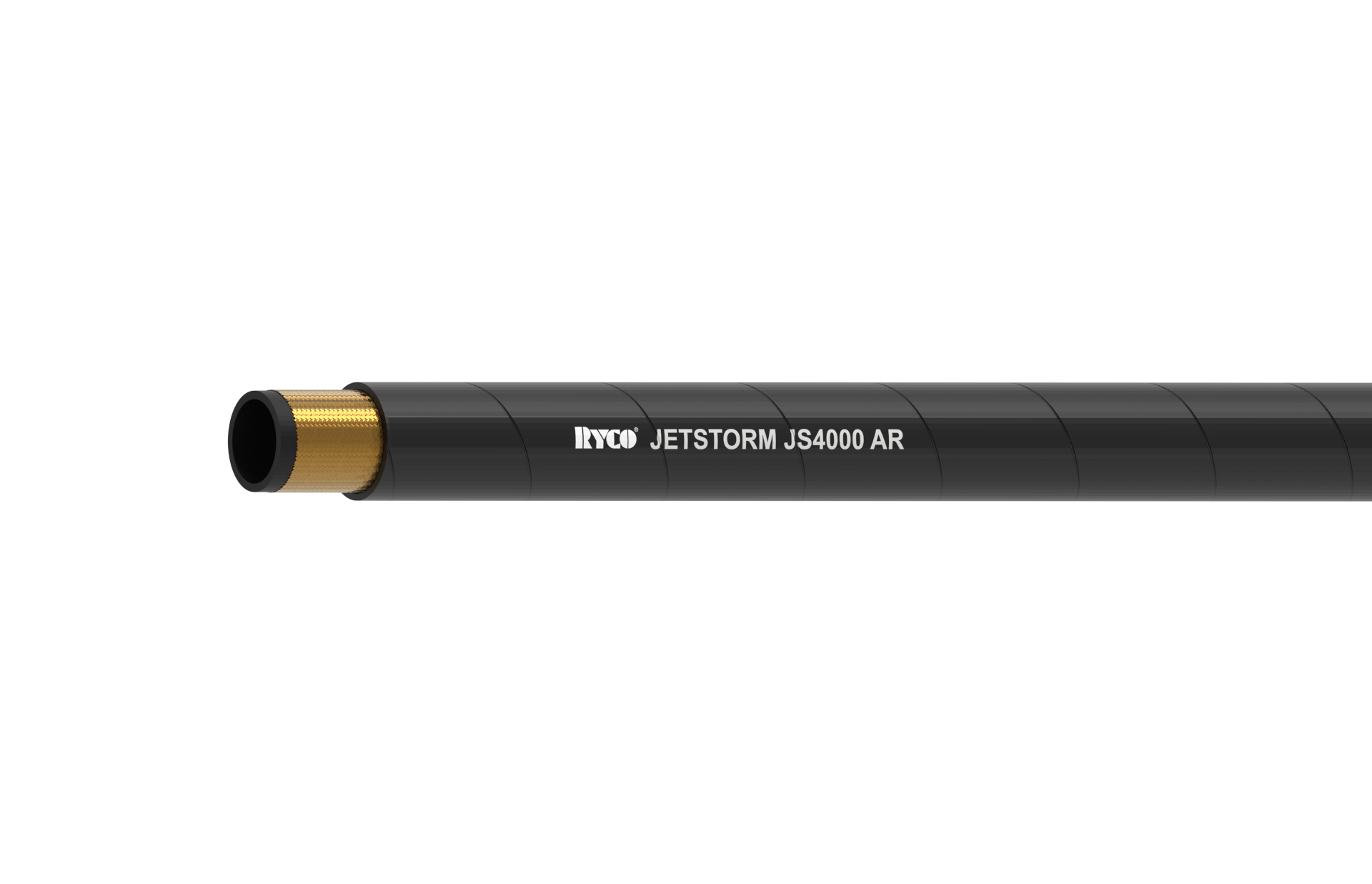

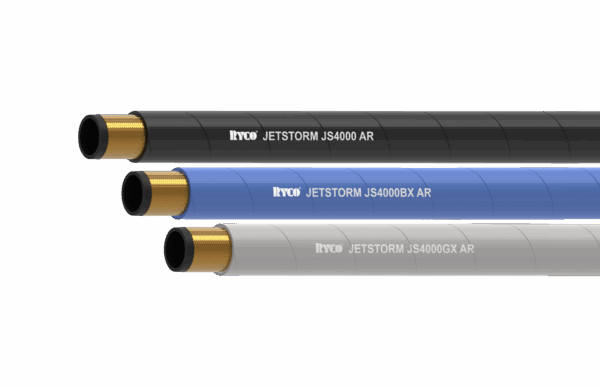

JS4000/G/BX/GX JETSTORM Pressure Washer Hose
Additional information
RECOMMENDED FOR:
Hot Water Pressure Washer Machines.
DO NOT USE with Steam.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 1829-2.
TUBE:
Black, heat resistant synthetic rubber.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
Oil resistant synthetic rubber formulated to resist marking.

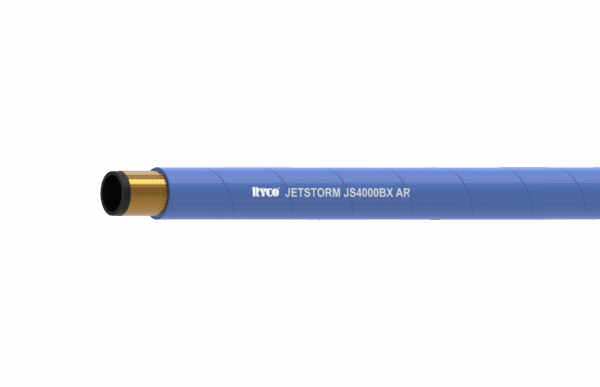

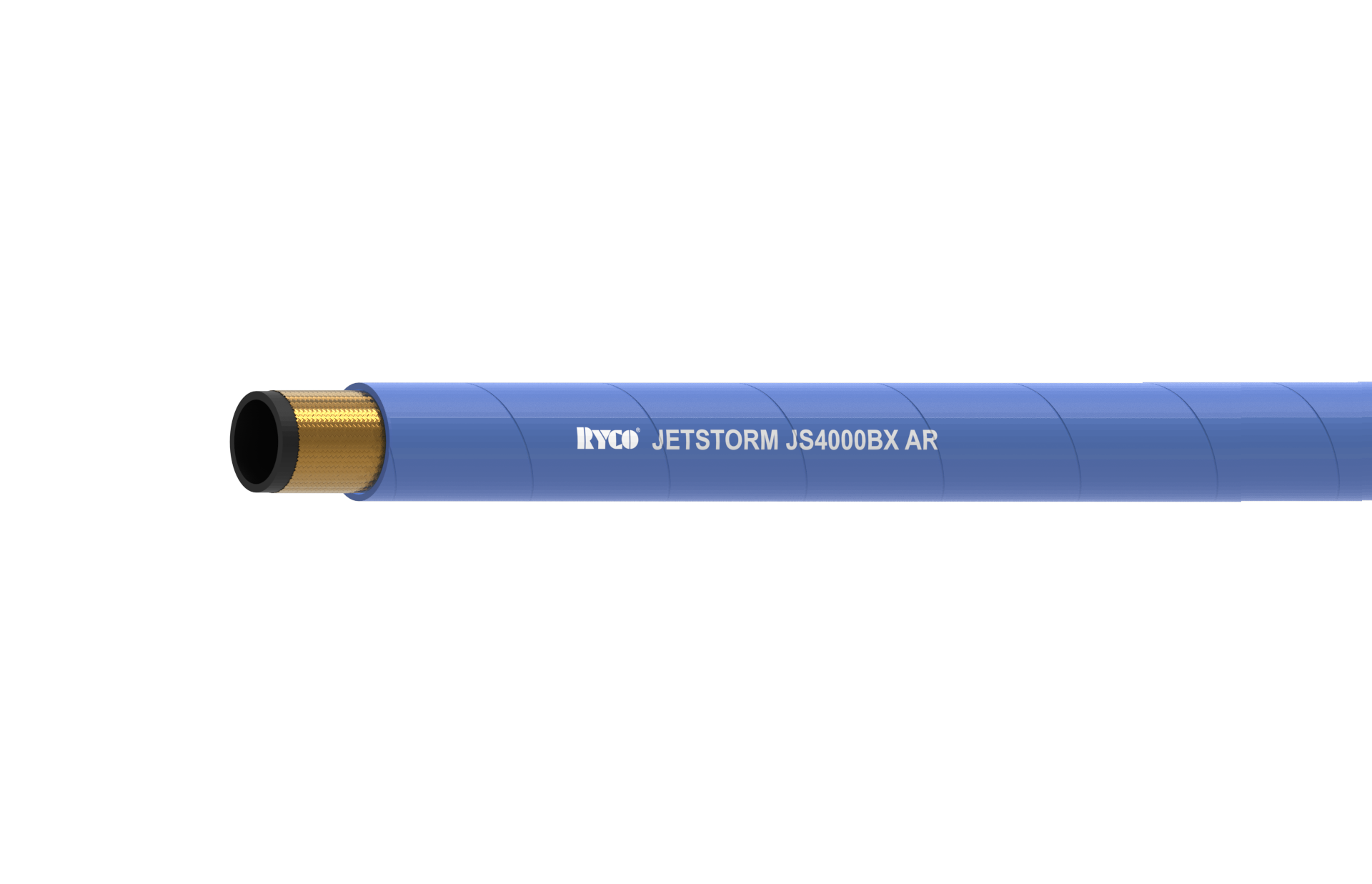

JS4000BX, blue, highly abrasion resistant (AR), non marking

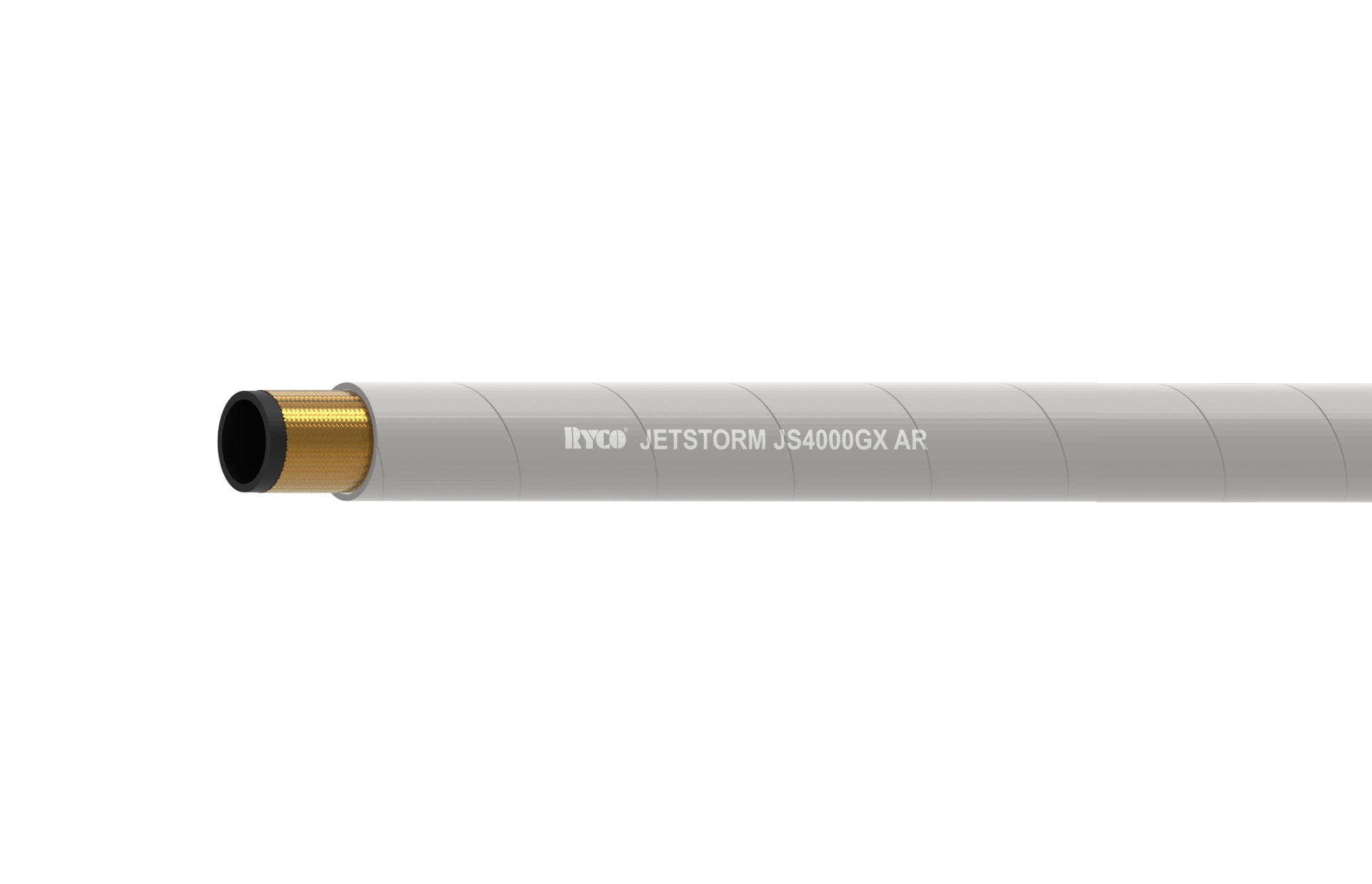

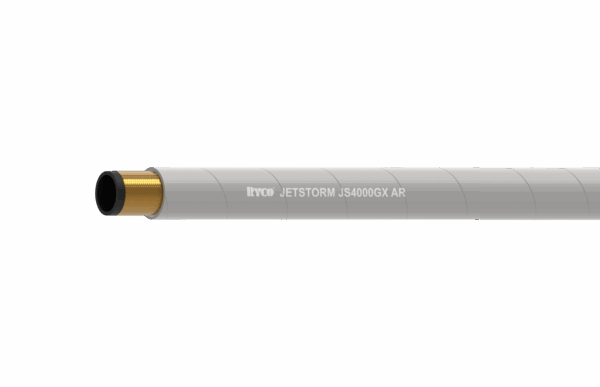

JS4000GX, grey, highly abrasion resistant (AR), non marking.
Embossed layline for positive, permanent identification.
No skiving required for T2000 Series Crimp Couplings.
TEMPERATURE RANGE:
JS4000BX/GX JETSTORM Hoses handle hot water up to +135°C (+275°F) with intermittent service to +150°C (+302°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -08).
A MEMBER OF:
The Waterjet Technology Association (WJTA) and Industrial & Municipal Cleaning Association (IMCA)
The Australasian High Pressure Water Jetting Association.
| JS4000 JETSTORM – PRESSURE WASHER HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| JS4004/G | 6 | -04 | T2000 |
| JS4005/G | 8 | -05 | T2000 |
| JS4006/G | 10 | -06 | T2000 |
| JS4008/G | 12 | -08 | T2000 |
