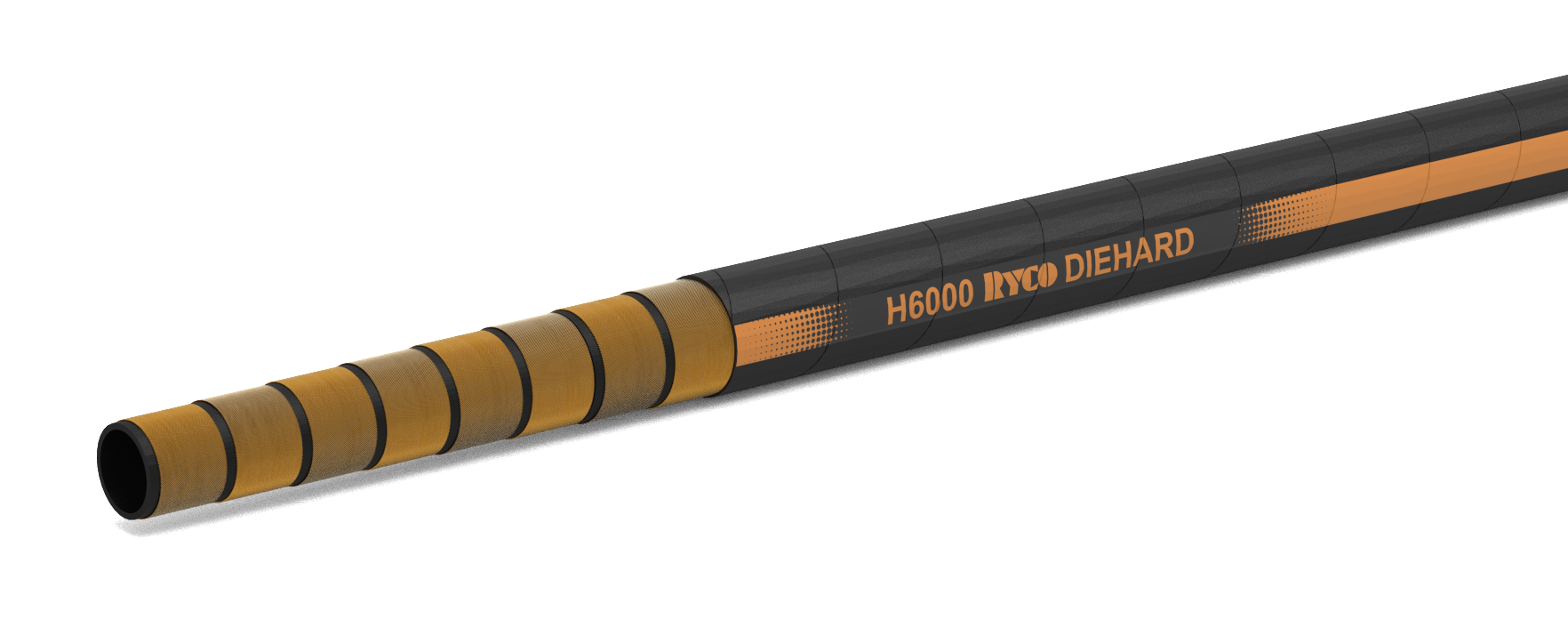

H6000D ISOBARIC – Four-Six-Eight Wire Spiral 6100 psi Hose DIEHARD™ Cover

Additional information

Technical Specifications:

Extremely high pressure hydraulic oil lines. Constant pressure (Isobaric) 420 bar / 6100 psi in all sizes. Small bend radius is an advantage in installations.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: Four (-06 to -16 size), six (-20 to -24 size) and eight (-32 size) alternating layers of spiralled high tensile steel wire.

COVER: DIEHARD™ Black, oil and extra abrasion resistant synthetic rubber. Flame Resistant, Anti-Static (FRAS) & MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 and T7000 Series Crimp Couplings.
Meets or Exceeds the Performance Requirements of:
EN 856 Type R15, ISO 18752-CC, SAE 100R15.

FEATURES: Tested to 1 million impulse cycles at up to 1/2 SAE 100R15 Minimum Bend Radius. World First: World’s first 2” (-32) hose tested to 1 million impulse cycles at 400mm (15.8”) Minimum Bend Radius. Constant pressure 420 bar / 6100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

FRAS – FLAME RESISTANCE AND ANTI-STATIC: DIEHARD™ complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE: -40°C to +121°C (-40°F to +250°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

H6000D – DIEHARD ISOBARIC SPIRAL HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
H6006D 10 -06 T7000
H6008D 12 -08 T7000
H6010D 16 -10 T7000
H6012D 19 -12 T6000 T7000
H6016D 25 -16 T6000 T7000
H6020D 31 -20 T6000 T7000
H6024D 38 -24 T6000
H6032D 51 -32 T6000
