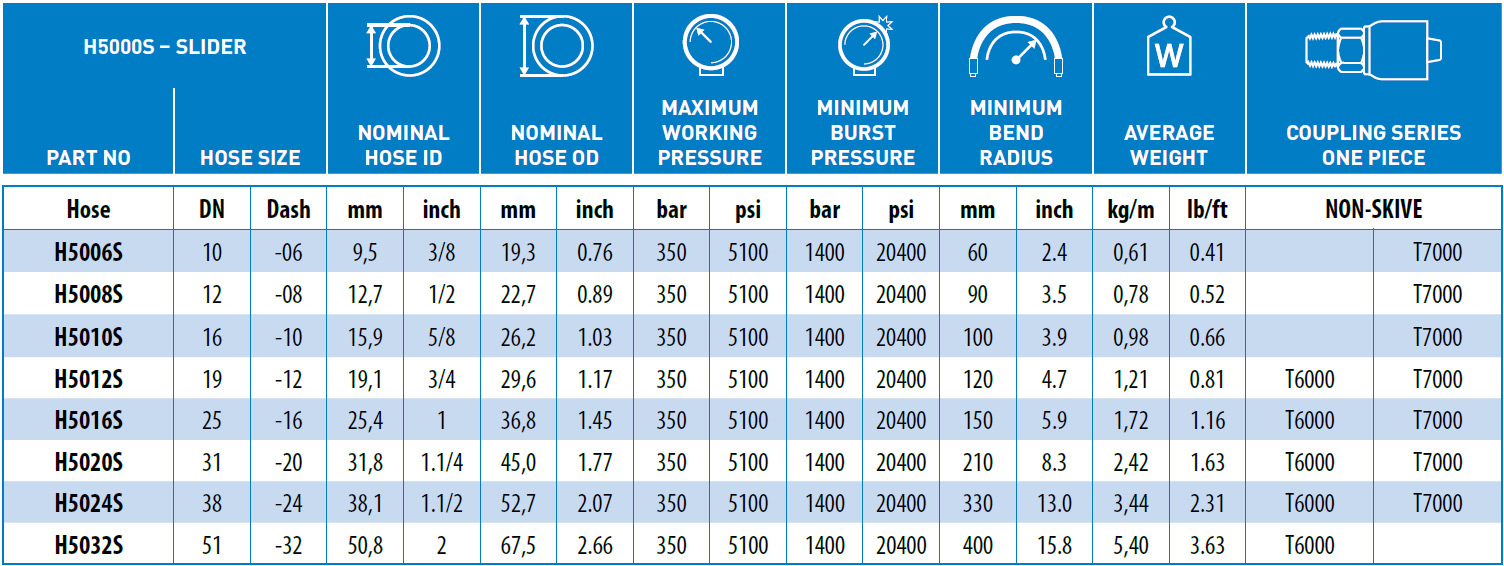

H5000S

RYCO SLIDER

EXTREMELY ABRASION RESISTANT
MSHA
ISOBARIC SPIRAL HOSE
350 BAR / 5100 PSI
MILLION CYCLE

RECOMMENDED FOR:
Very high pressure hydraulic oil lines. Constant pressure (Isobaric) 350 bar / 5100 psi in all sizes. Small bend radius is an advantage in installations.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 856 Type R13, ISO 18752-CC, SAE 100R13.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
Four (-06 to -20 size) and six (-24 to -32 size) alternating layers of spiralled high tensile steel wire.

COVER:
SLIDER Black, oil and extremely abrasion resistant synthetic rubber sheathed with a layer of extremely abrasion resistant polyethylene. Flame Resistant, MSHA compliant. Highly visible layline branding for easy and permanent identification. No skiving required with T6000 & T7000 Series Crimp Couplings.

FEATURES:
Tested to 1 million impulse cycles at up to 1/2 SAE 100R13 Minimum Bend Radius. Constant pressure 350 bar / 5100 psi in all sizes for easy system design and hose selection. Small bend radius is an advantage in installations.

MSHA – FLAME RESISTANCE:
SLIDER complies with Flame Resistant requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
-40°C to +121°C, (-40°F to +250°F.)

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -06 to -24).
T6000 Series (size -12 to -32).

Refer to the Ryco Crimp App for the latest crimping parameters.

DISCLAIMER

We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. This document supersedes all previous versions and previously issued documentation. The only official source of technical crimping parameters regarding our products is our Digital Crimp Tools. Printed copies are uncontrolled therefore, please be sure to use the latest versions of our Ryco Crimp App or Ryco Crimp Web Tool. Don’t mix and match: always use original hoses and fittings. For more information, see our Safety Guide.
