H5000C ICEBREAKER
Additional information

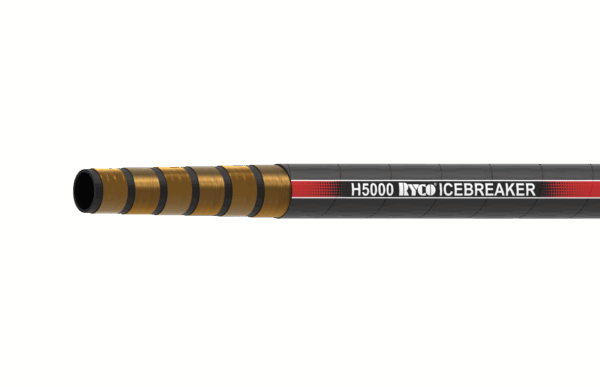

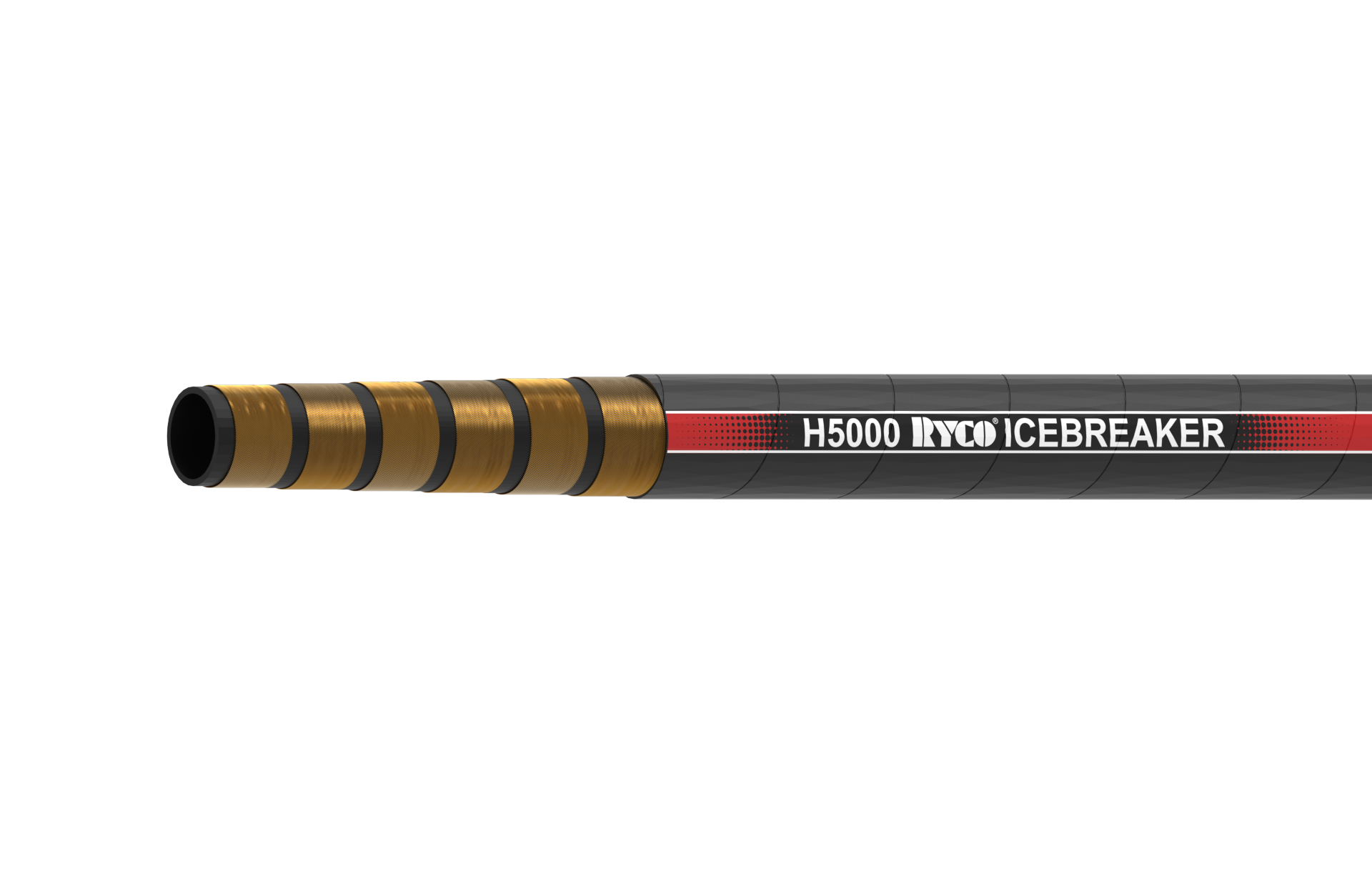

H5000C ICEBREAKER
Low temperature isobaric spiral hose 350 BAR / 5100 PSI.
RECOMMENDED FOR:
Very high pressure hydraulic oil lines in application where low temprature enviromental conditions exist. Constant pressure (Isobaric) 350 bar / 5100 psi in all sizes. Small bend
radius is an advantage in installations.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 856 Type R13, ISO 18752-CC, SAE100R13.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Four (-12 to -20 size) and six (-32 size) alternating layers of spiralled high tensile steel wire.
COVER:
Black, oil and abrasion resistant synthetic rubber.
FEATURES:
Low temperature hose (-60°C/-76°F). Constant pressure 350 bar / 5100 psi in all sizes for easy system design and hose selection.
Small bend radius is an advantage in installations.
TEMPERATURE RANGE:
-60°C to +100°C (-76°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, GOST-R, BV, RINA and KR.
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T7000 Series (sizes -12 to -20).
| H5000C – ICEBREAKER ISOBARIC SPIRAL HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| H5012C | 19 | -12 | T7000 |
| H5016C | 25 | -16 | T7000 |
| H5020C | 31 | -20 | T7000 |
| H5024C | 38 | -24 | T7000 |
