FUEL/D
Additional information

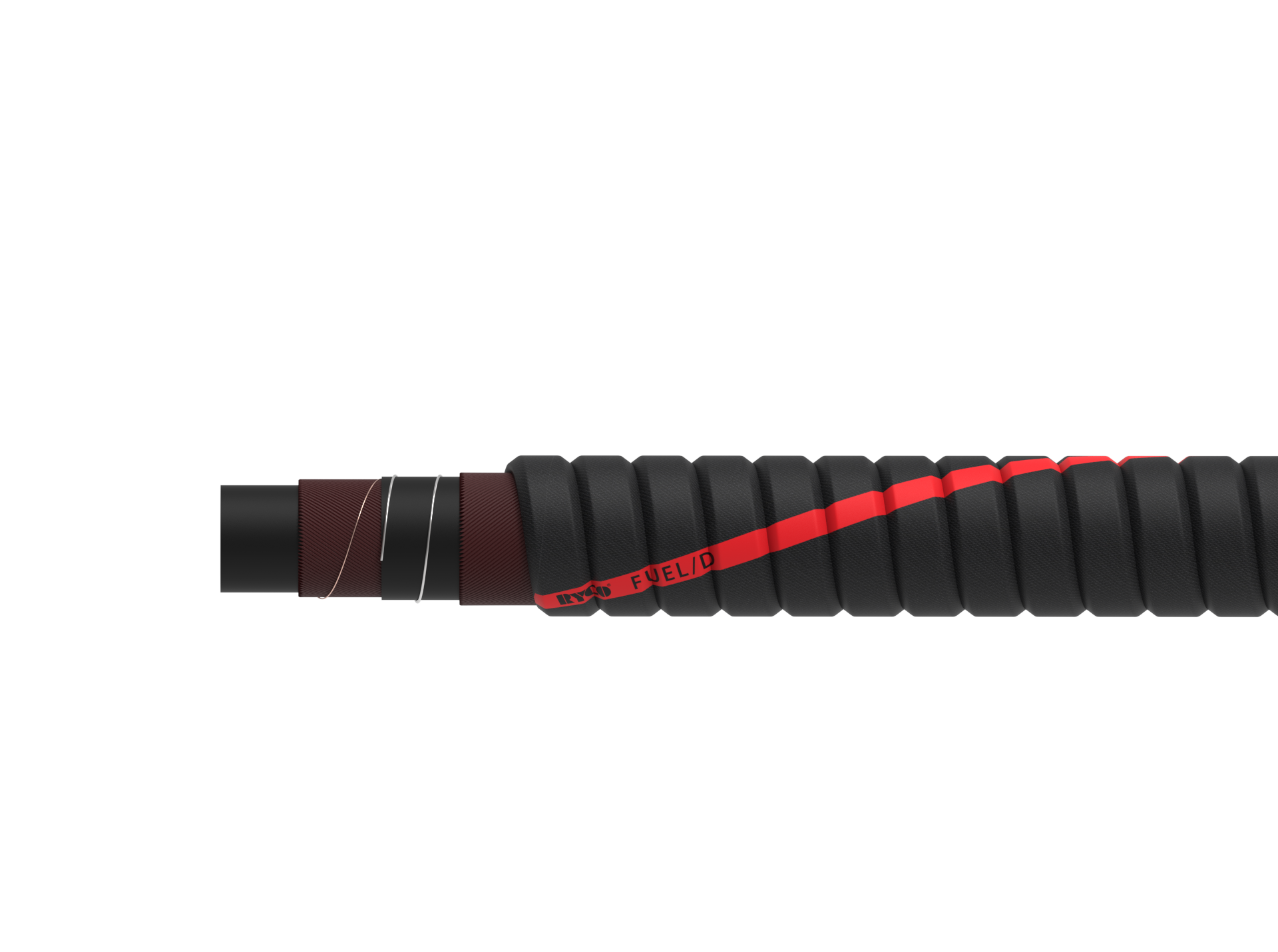

FUEL/D
Fuel & mineral oil delivery EN 1360 Type 1.
TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 61m.
APPLICATION & FLUIDS:
Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 70°C (-22°F to +158°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN 1360 Type 1.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| FUEL/D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| FD8 | 12 | 1/2″ | SR+D08000 SERIES |
| FD10 | 16 | 5/8″ | SR+D08000 SERIES |
| FD12 | 19 | 3/4″ | SR+D08000 SERIES |
| FD16 | 25 | 1″ | SR+D08000 SERIES |
| FD20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| FD24 | 38 | 1.1/2″ | SR+D08000 SERIES |
