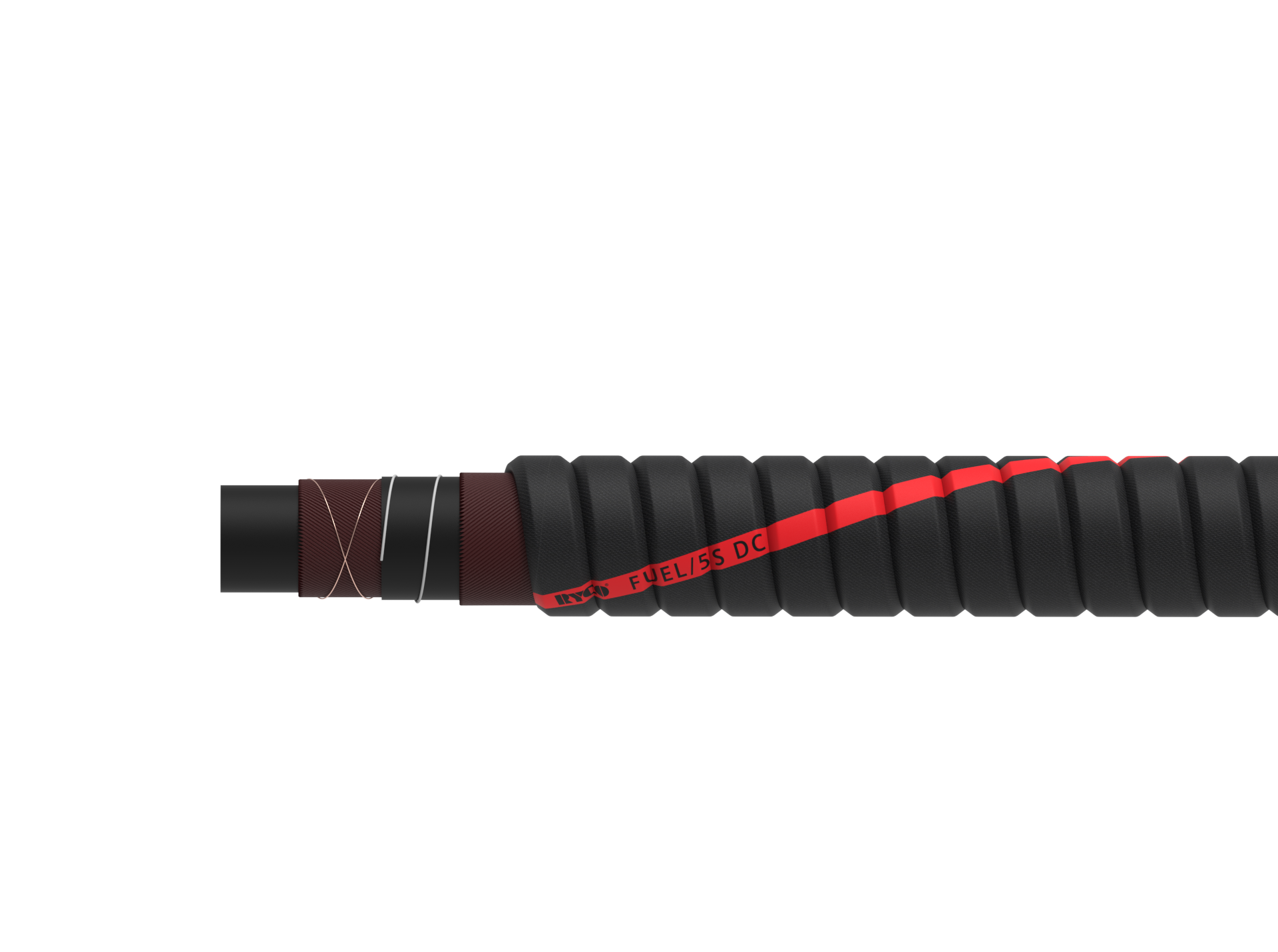

FUEL/5 SDC

FUEL SUCTION & DELIVERY
HOSE WITH HIGH FLEXIBILITY

KEY FEATURES:

Hardwall suction and delivery structure
Normal corrugated cover offers lowest bend radius in category
Compact, lightweight and extremely flexible
Robust hose structure for longer life in severe applications
Long length assemblies available – Max length: 40m

TUBE:
Black NBR rubber.

REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.

COVER:
Black synthetic, normal corrugated CR rubber, anti-static (R<106 Ohm/m), oil, fuel, abrasion and weathering resistant.

APPLICATION & FLUIDS:
Fuels, oils, petroleum & its derivatives with aromatic content up to 50%.

TEMPERATURE RANGE:
From -30°C to + 100°C (-22°F to +212°F).

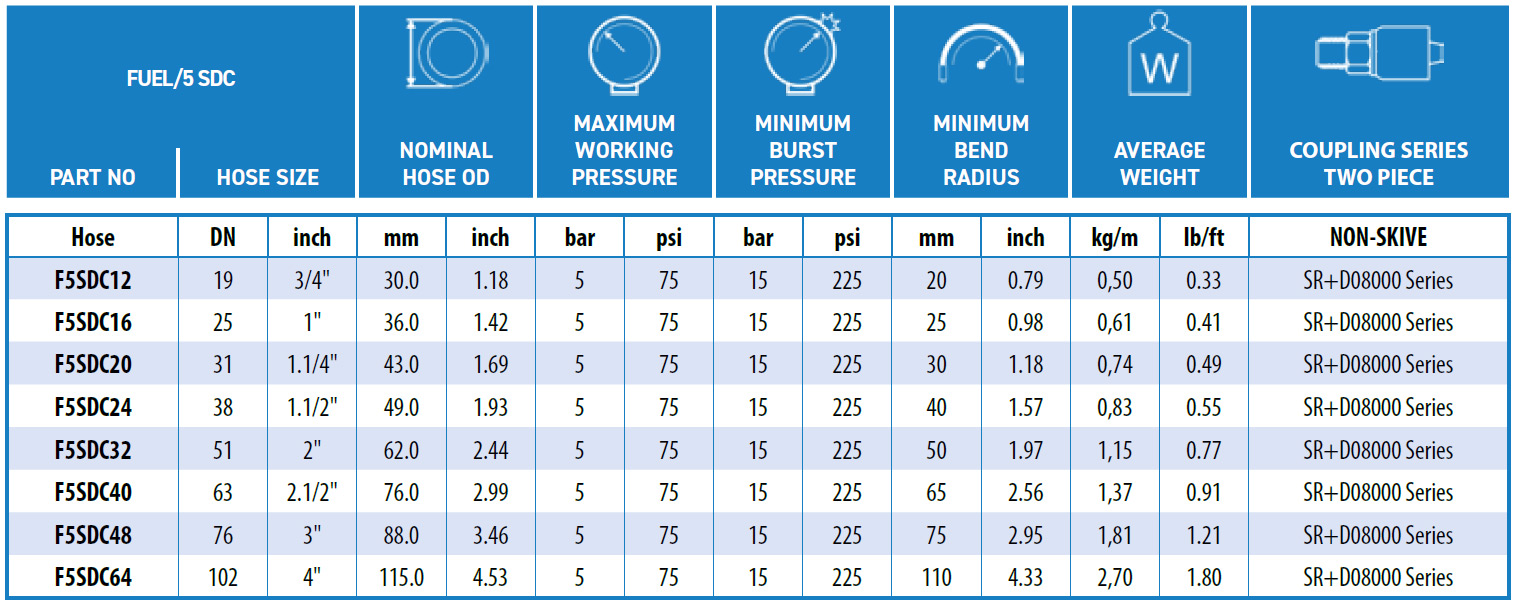

WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

Refer to the Ryco Crimp App for the latest crimping parameters.
