| FUEL/21 SD | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| F21SD32 | 51 | 2″ | SR+D08000 SERIES |
| F21SD48 | 76 | 3″ | SR+D08000 SERIES |
| F21SD64 | 102 | 4″ | SR+D08000 SERIES |
| F21SD96 | 152 | 6″ | MARKET FITTINGS |
| F21SD128 | 203 | 8″ | MARKET FITTINGS |
Additional information

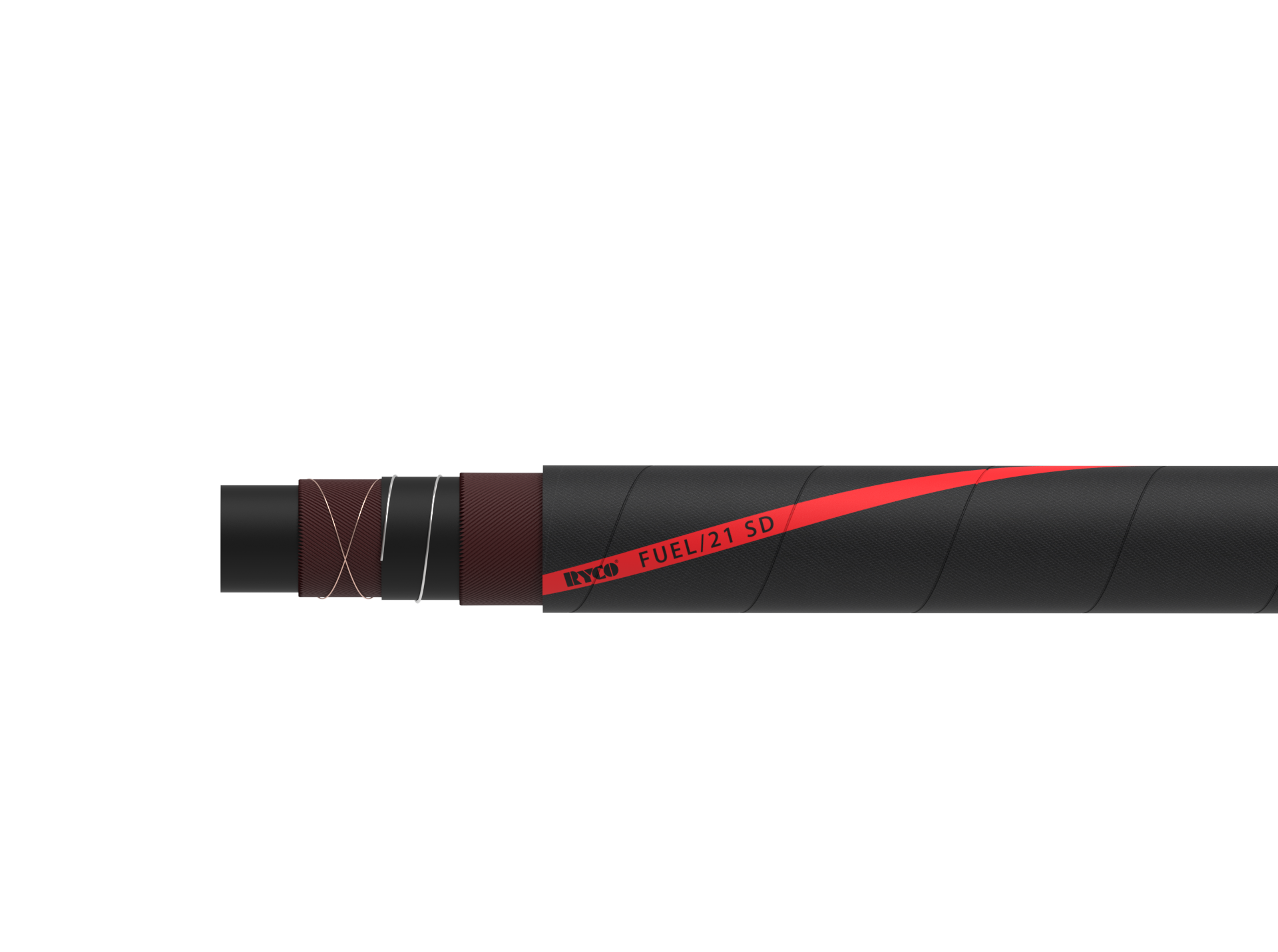

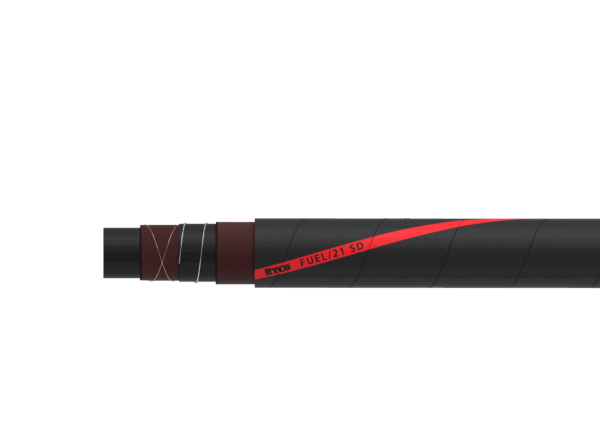

FUEL/21 SD
FUEL/21 SD
Fuel & oil hose heavy duty.
TUBE:
NBR rubber, abrasion resistant, thick tube.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, ozone and weathering resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Fuels, oils, & diesel with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
Market Fittings.
