FUEL/10 R4
Additional information
FUEL/10 R4

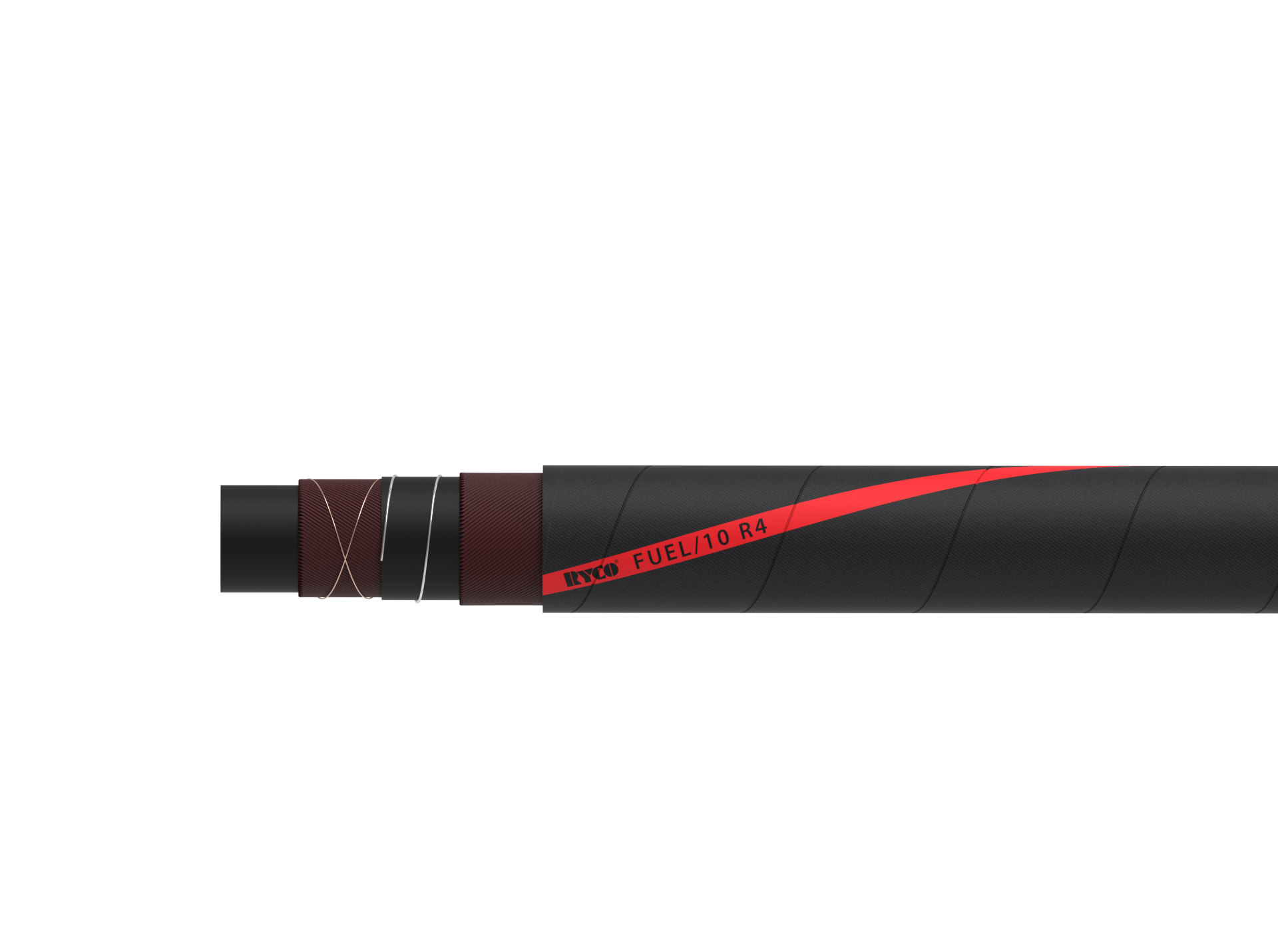

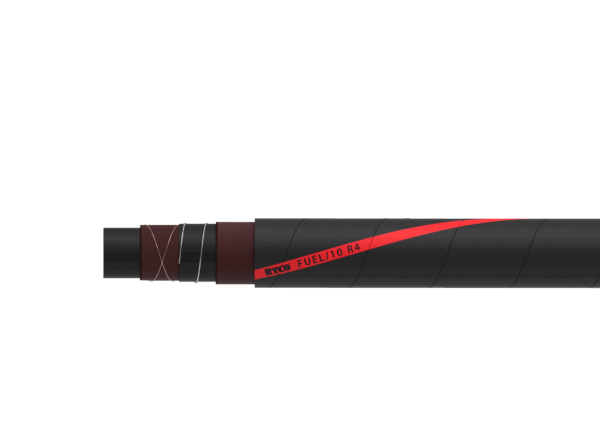

Fuel & Oil Hose.
TUBE:
Black NBR rubber.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone and oil resistant.
KEY FEATURES:
- Suitable as SAE j517 Type 100R4.
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
- Vacuum performance: -0.9 bar.
APPLICATION & FLUIDS:
Fuels and oils with aromatic content up to 50%.
TEMPERATURE RANGE:
From -30°C to + 90°C (-22°F to +194°F).
Hydraulic oils temperature range: -40°C to 100°C (-40°F to 212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
Exceeds SAE 100R4.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
Market Fittings.
| FUEL/10 R4 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| F10R412 | 19 | 3/4″ | SR+D08000 SERIES |
| F10R416 | 25 | 1″ | SR+D08000 SERIES |
| F10R420 | 31 | 1.1/4″ | SR+D08000 SERIES |
| F10R424 | 38 | 1.1/2″ | SR+D08000 SERIES |
| F10R425 | 40 | 1.9/16″ | MARKET FITTINGS |
| F10R428 | 45 | 1.3/4″ | MARKET FITTINGS |
| F10R432 | 51 | 2″ | SR+D08000 SERIES |
| F10R440 | 63 | 2.1/2″ | SR+D08000 SERIES |
| F10R448 | 76 | 3″ | SR+D08000 SERIES |
| F10R464 | 102 | 4″ | SR+D08000 SERIES |
| F10R480 | 127 | 5″ | MARKET FITTINGS |
