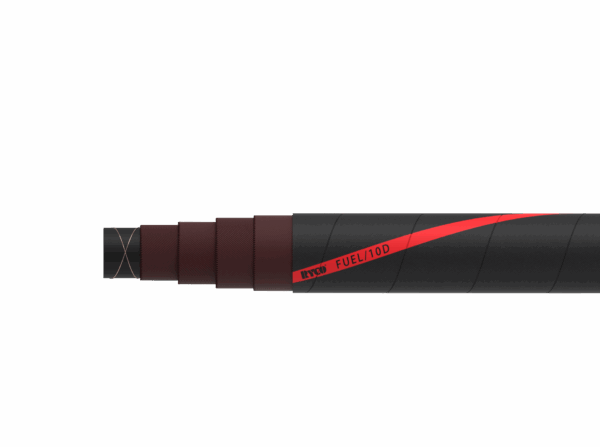

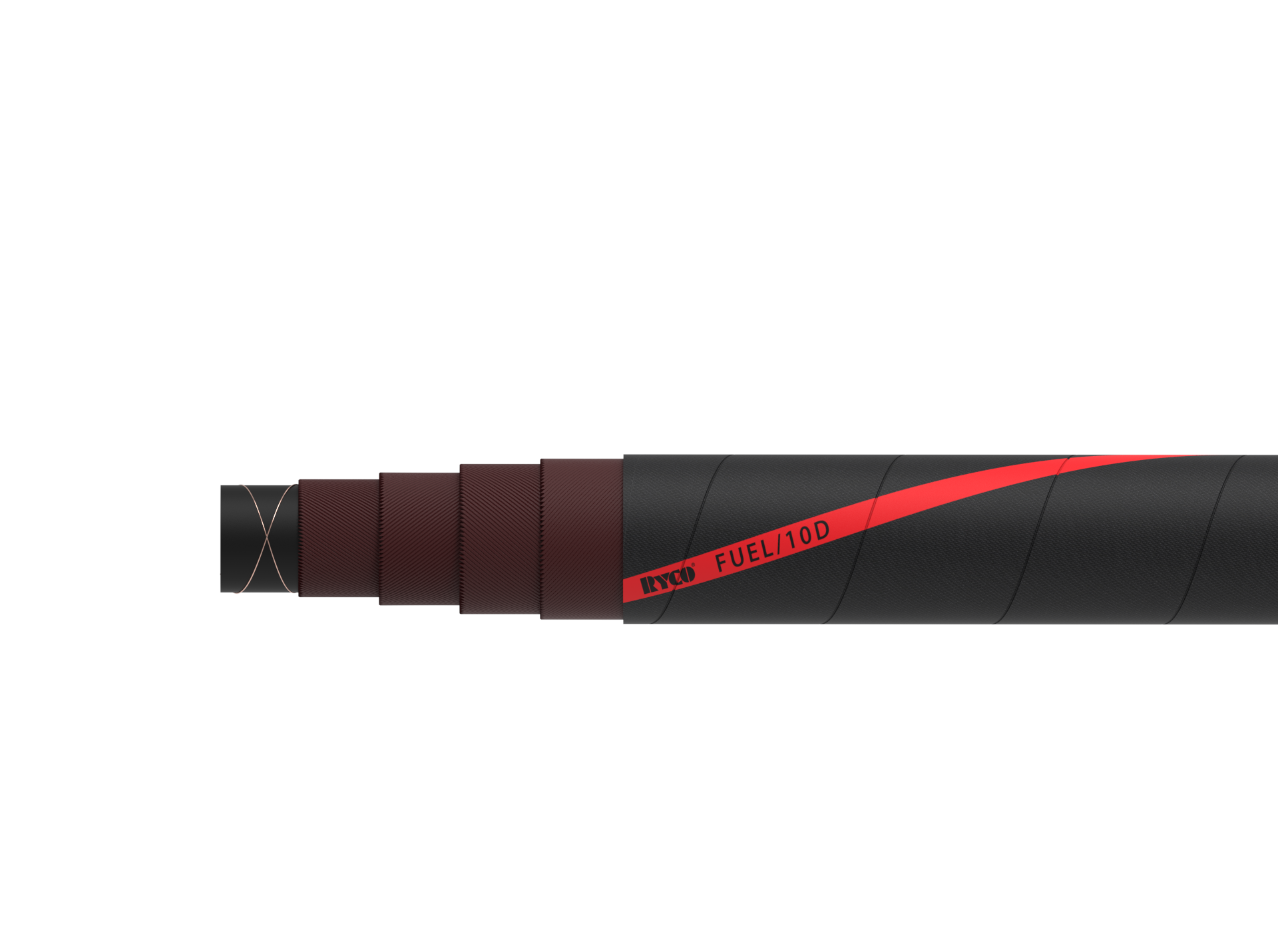

FUEL/10 D

FUEL/10 D

Fuel & oil hose.

TUBE:

Black NBR rubber.

REINFORCEMENT:

High tensile synthetic cord and 2 crossing copper wires for grounding.

COVER:

Black synthetic SBR rubber, long lasting, weathering and ozone resistant.

KEY FEATURES:

• Softwall delivery structure.
• Highly robust hose structure.
• Long lasting in severe applications.
• Long length assemblies available – Max length: 60m.

APPLICATION & FLUIDS:

Fuels, oils and diesel with aromatic content up to 50%.

TEMPERATURE RANGE:

From -30°C to + 90°C (-22°F to +194°F).

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.
