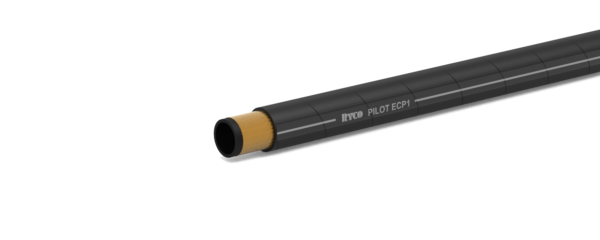

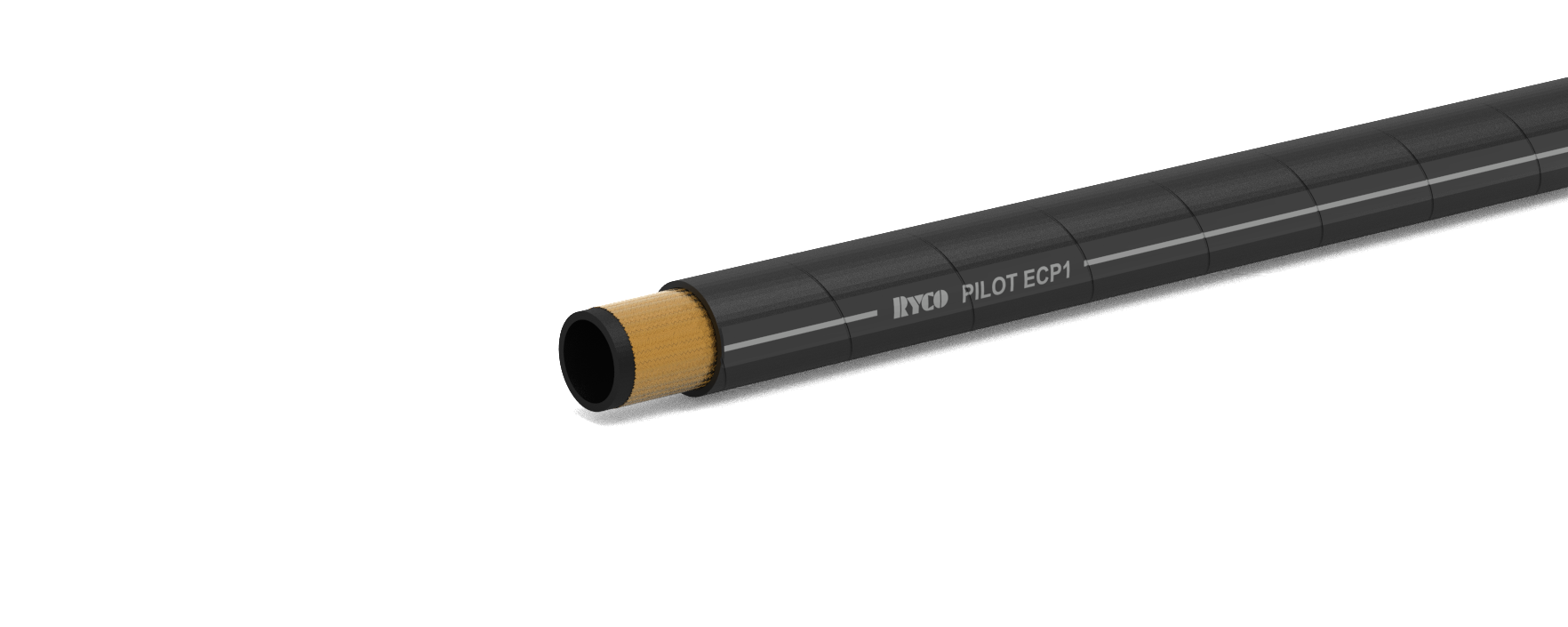

ECP1 Pilot – One Wire Braid 1800 psi Compact Hose ENERGY Cover

Additional information

Technical Specifications:

High pressure hydraulic oil pilot lines. Compact dimensions and very small bend radius are advantages in installations where space is limited.

TUBE: Black, oil resistant synthetic rubber.

REINFORCEMENT: One braid of high tensile steel wire.

COVER: Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

FEATURES: Light and extremely flexible, with compact dimensions and a very small bend radius that are advantages in installations where space is limited. Low volumetric expansion ensures maximum responsiveness of hydraulic controls.

TEMPERATURE RANGE: From -40°C to +100°C (-40°F to +212°F), with intermittent operation up to +121°C (+250°F).

WORKING PRESSURE: Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

ECP1 – PILOT COMPACT HOSE MATCHED COUPLINGS SERIES
PART NO HOSE SIZE ONE PIECE
HOSE DN DASH NON-SKIVE
ECP13 5 -03 T2000
ECP14 6 -04 T2000
ECP15 8 -05 T2000
ECP16 10 -06 T2000
ECP18 12 -08 T2000
