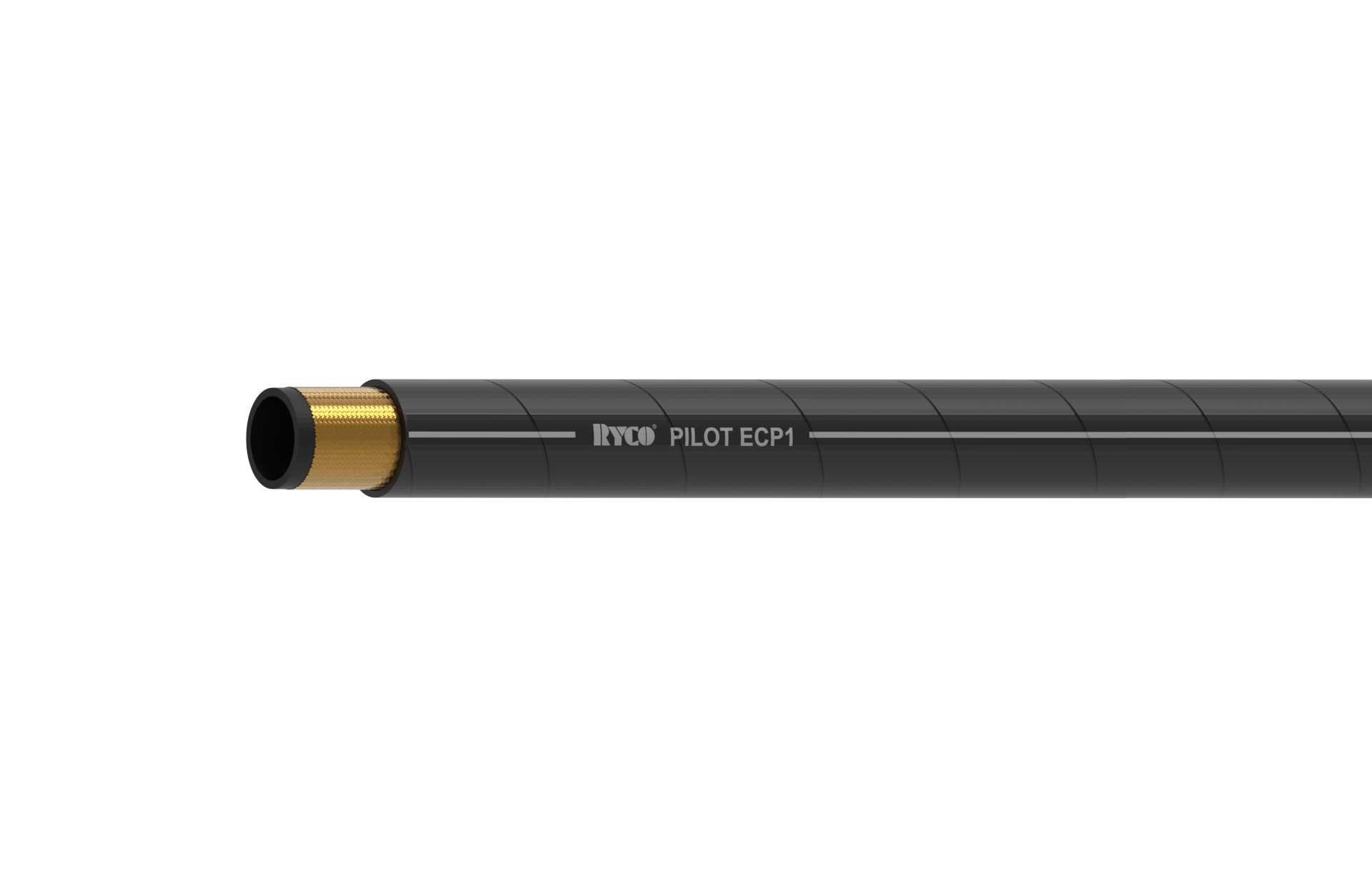

ECP1 Pilot – Compact One Wire Braid Hose

RECOMMENDED FOR:
High pressure hydraulic oil pilot lines. Compact dimensions and very small bend radius are advantages in installations where space is limited.

CONSTRUCTION:
Ryco Proprietary ECP1 Design.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

FEATURES:
Light and extremely flexible, with compact dimensions and a very small bend radius that are advantages in installations where space is limited. Low volumetric expansion ensures maximum responsiveness of hydraulic controls.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F), with intermittent operation up to +121°C (+250°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -03 to -08).
