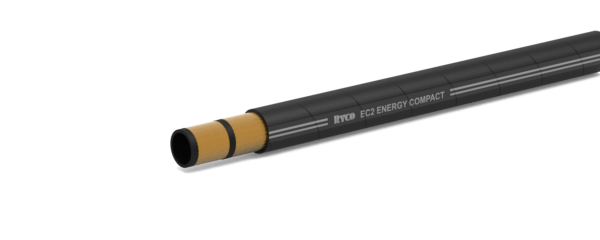

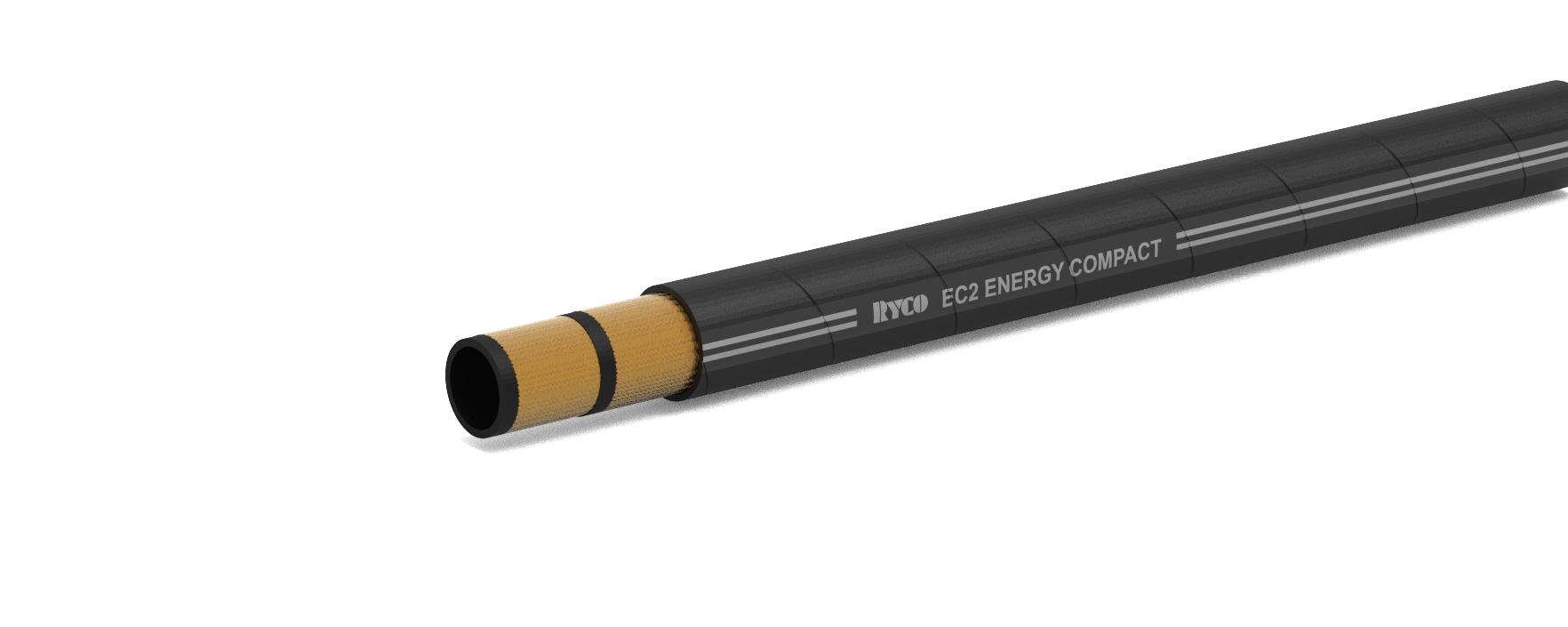

EC2 – ENERGY Compact Two Wire Braid Hose
Additional information
EC2 – ENERGY
Compact two wire braid hose.
RECOMMENDED FOR:
High pressure hydraulic oil lines. Ideal for high pressure use that requires a compact outside diameter and smaller bend radius than some other two wire braid hoses.
PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
EN 857 Type 2SC, ISO 11237 Type 2SC, SAE 100R16.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
Two braids of high tensile steel wire.
COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).
| EC2 – ENERGY COMPACT HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| EC24 | 6 | -04 | T2000 |
| EC25 | 8 | -05 | T2000 |
| EC26 | 10 | -06 | T2000 |
| EC28 | 12 | -08 | T2000 |
| EC210 | 16 | -10 | T2000 |
| EC212 | 19 | -12 | T2000 |
| EC216 | 25 | -16 | T2000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
