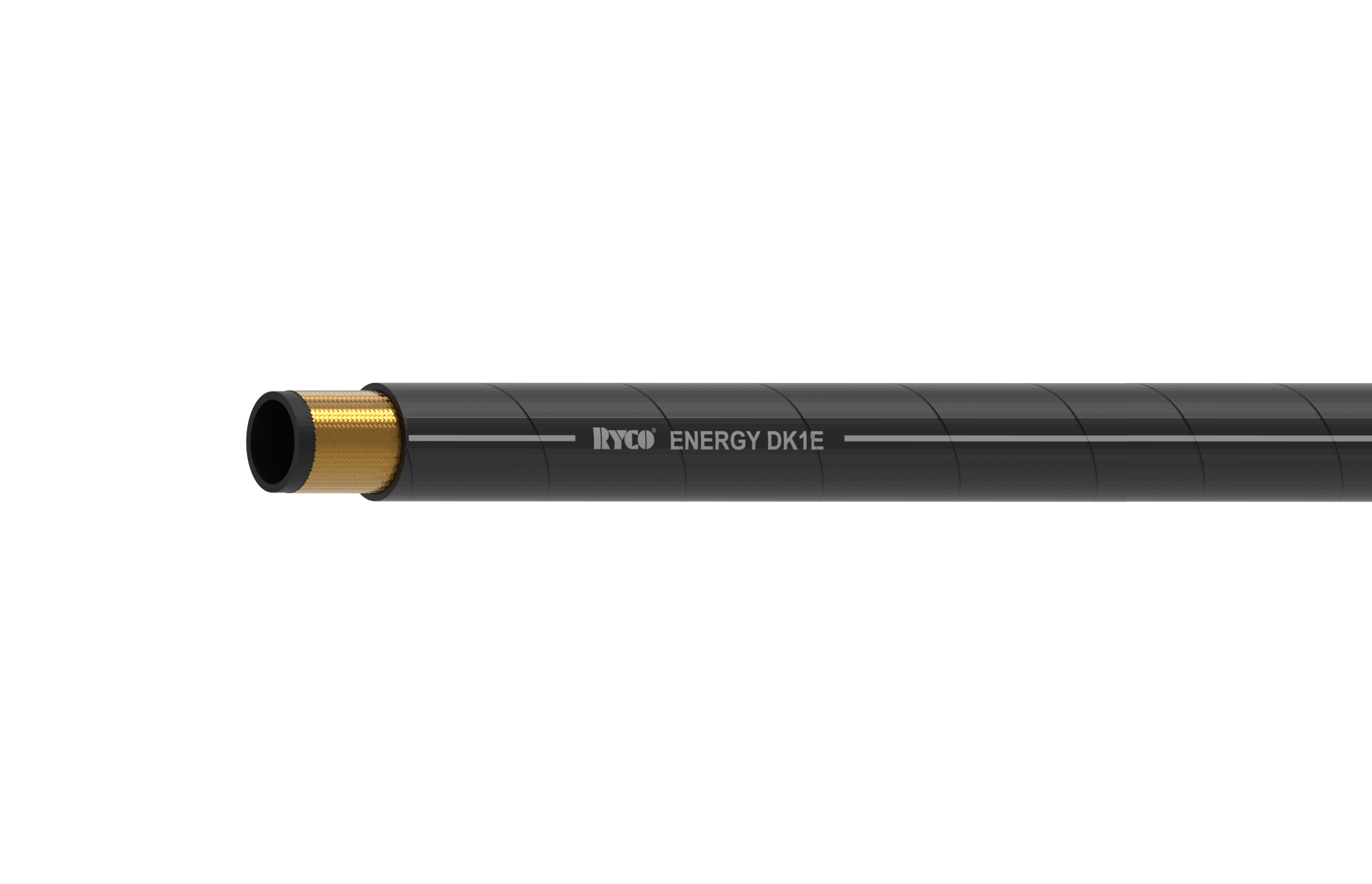

DK1E – Extra High Pressure Compact One Wire Braid Hose
Additional information
RECOMMENDED FOR:
Extra high pressure hydraulic oil lines in applications.
Compact dimensions and small bend radius are advantages in installations where space is limited.
PERFORMANCE:
Exceeds the Performance Requirements of:
EN 857 Type 1SC, ISO 11237 Type 1SC.
CONSTRUCTION:
Ryco Proprietary DK1E design.
TUBE:
Black, oil resistant synthetic rubber.
REINFORCEMENT:
One braid of high tensile steel wire.
COVER:
Black, oil resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.
FEATURES:
The extra high working pressures and excellent impulse life, results in increased service life and minimises equipment downtime. Compact dimensions and small bend radius are advantages in installations where space is limited.
TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -20).
Not suitable for use with field attachable couplings.
| DK1E – ENERGY EXTRA HIGH PRESSURE NON-SKIVE HOSE | MATCHED COUPLINGS SERIES | ||
|---|---|---|---|
| PART NO | HOSE SIZE | ONE PIECE | |
| HOSE | DN | DASH | NON-SKIVE |
| DK14E | 6 | -04 | T2000 |
| DK15E | 8 | -05 | T2000 |
| DK16E | 10 | -06 | T2000 |
| DK18E | 12 | -08 | T2000 |
| DK110E | 16 | -10 | T2000 |
| DK112E | 19 | -12 | T2000 |
| DK116E | 25 | -16 | T2000 |
| DK120E | 31 | -20 | T2000 |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
