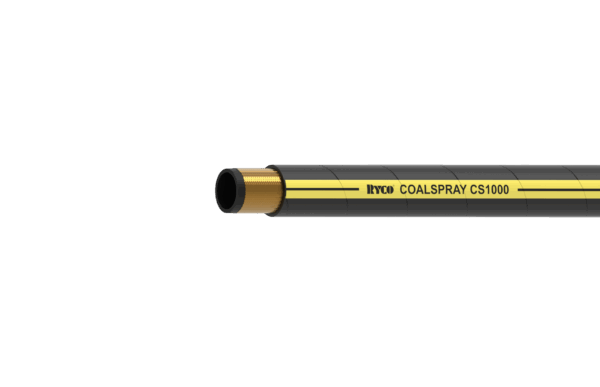

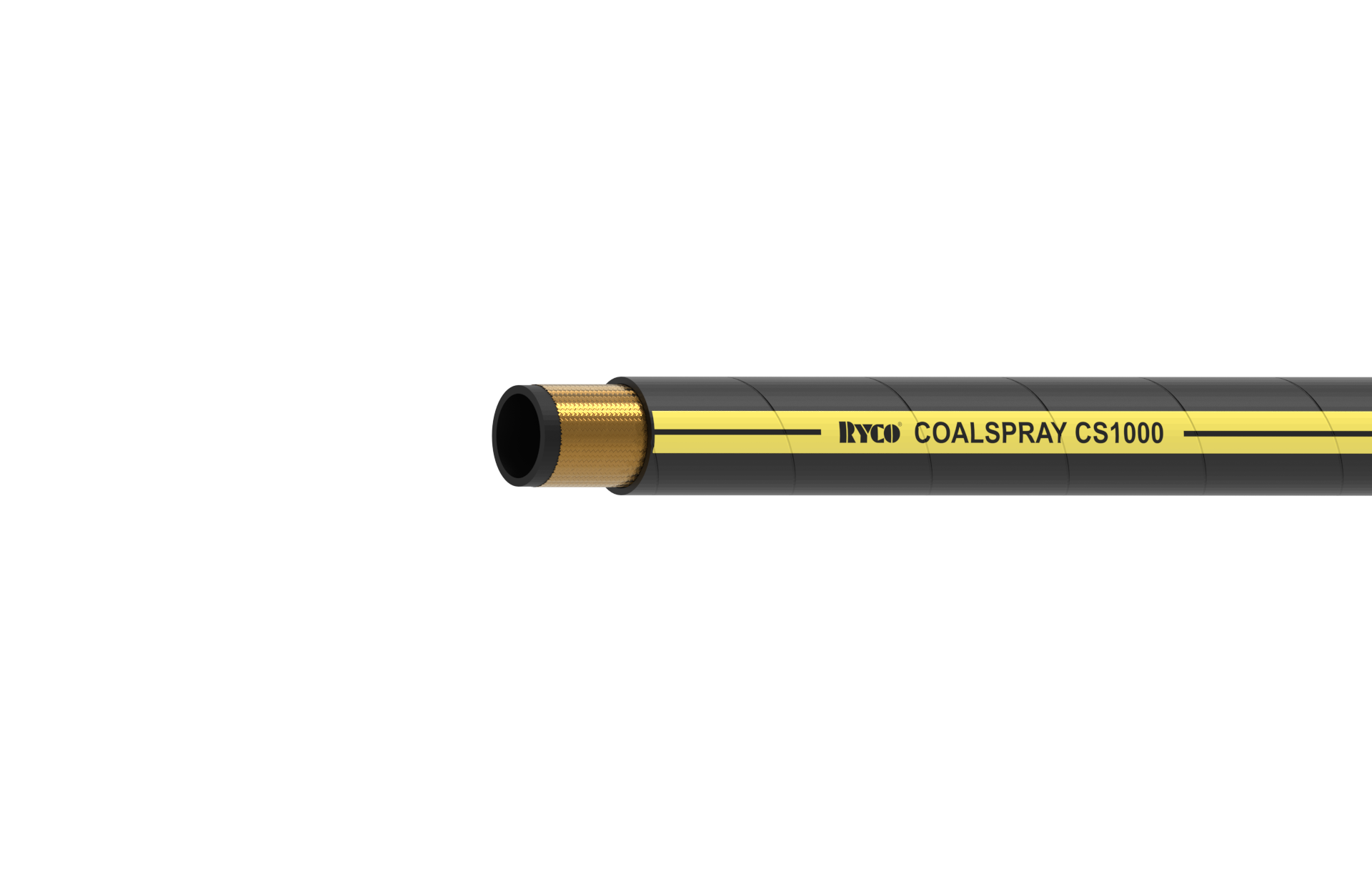

CS1000 COALSPRAY

RECOMMENDED FOR:
Water and air spray suited for dust control in all industrial and mining applications.

TUBE:
Black, oil resistant synthetic rubber. Cover is perforated (pin-pricked).

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Black, oil resistant and abrasion resistant synthetic rubber. No skiving required with T2000 Series Crimp Couplings.

FRAS – FLAME RESISTANCE AND ANTI-STATIC:
Complies with Flame Resistant and Electrical Resistance (Anti-Static) requirements of Australian Standard AS 2660 and Methods of Test AS 1180.10B and 13A. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

TEMPERATURE RANGE:
From -40°C to +100°C (-40°F to +212°F).

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series.
