COOLSING/SD
Additional information

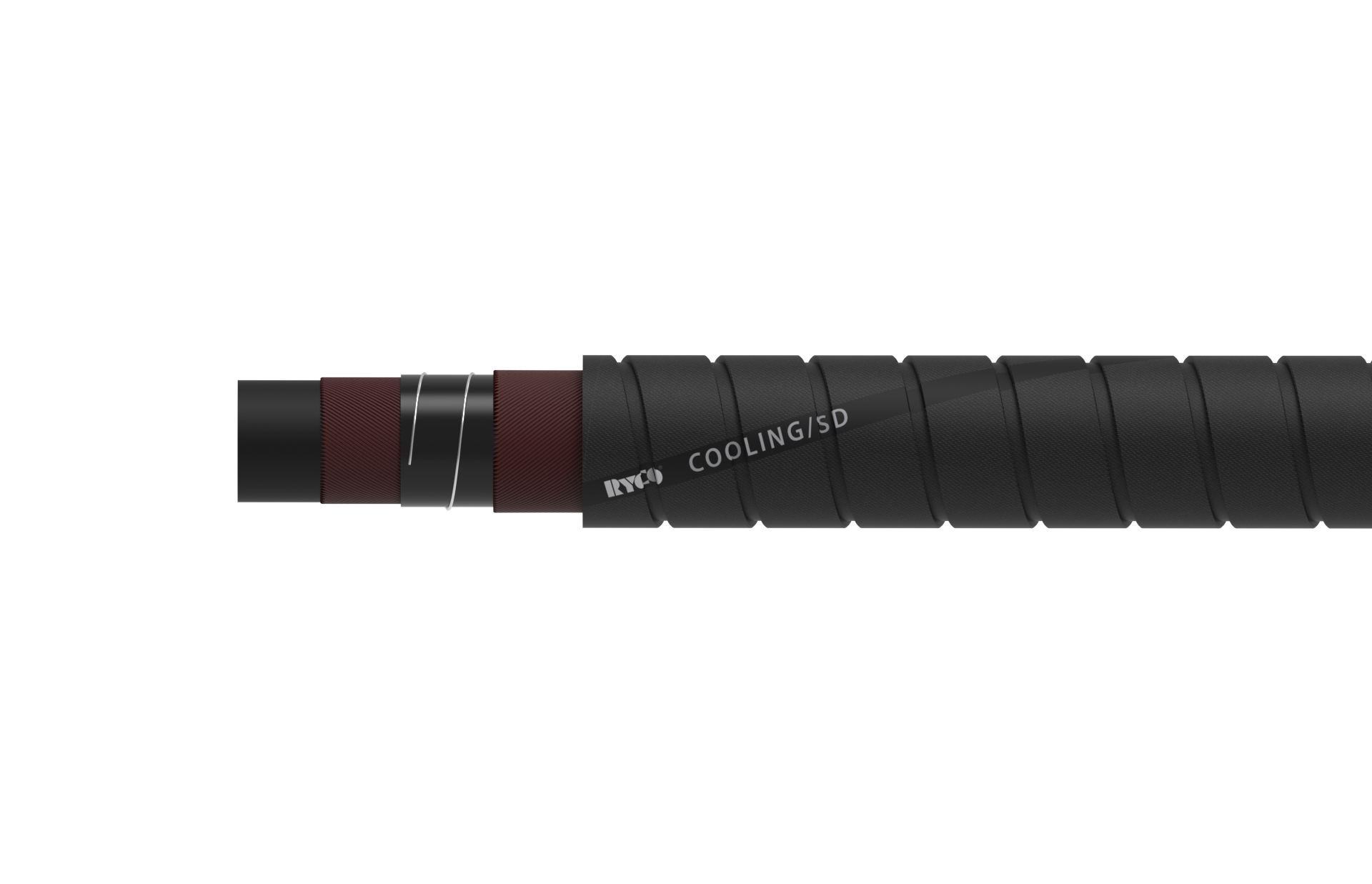

COOLING/SD
High flexibility water glycol cooling suction & delivery hose.
TUBE:
EPDM rubber.
REINFORCEMENT:
High tensile synthetic cord and steel helix body wire.
COVER:
Environmental resistant synthetic rubber, flat corrugated cover style.
KEY FEATURES:
- Hardwall hose used for the suction and delivery of water-glycol cooling lines at high temperature.
- Flat corrugated (grooved) cover for improved flexibility and reduced bend radius.
- Long lasting in severe applications.
- Resistance to Vacuum.
- length: 40m.
APPLICATION & FLUIDS:
- Suction and Delivery hose for hot water and coolant fluids, applied in engine cooling and heating systems.
- Radiator hose.
- Outstanding flexibility, installation in very narrow spaces.
- Water and water-glycol solutions.
TEMPERATURE RANGE:
From -40°C to + 125°C (-40°F to +257°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| COOLSERVICE/G | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| CLSD10 | 16 | 5/8″ | SR+D08000 SERIES |
| CLSD12 | 19 | 3/4″ | SR+D08000 SERIES |
| CLSD14 | 22 | 7/8″ | SR+D08000 SERIES |
| CLSD16 | 25 | 1″ | SR+D08000 SERIES |
| CLSD20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| CLSD24 | 38 | 1.1/2″ | SR+D08000 SERIES |
