| COOLING/5 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| CL510 | 16 | 5/8″ | SR+D08000 SERIES |
| CL512 | 19 | 3/4″ | SR+D08000 SERIES |
| CL516 | 25 | 1″ | SR+D08000 SERIES |
| CL520 | 31 | 1.1/4″ | SR+D08000 SERIES |
| CL524 | 38 | 1.1/2″ | SR+D08000 SERIES |
| CL532 | 51 | 2″ | SR+D08000 SERIES |
| CL548 | 76 | 3″ | SR+D08000 SERIES |
| CL564 | 102 | 4″ | SR+D08000 SERIES |
Additional information

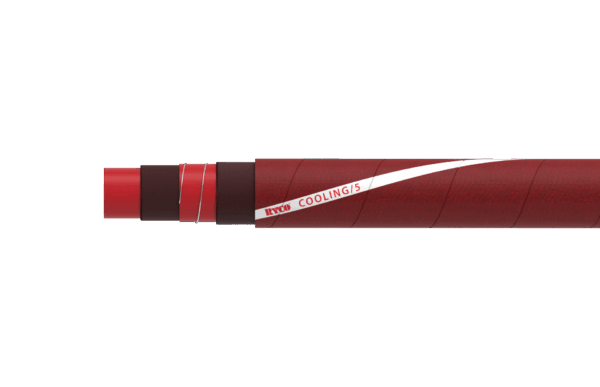

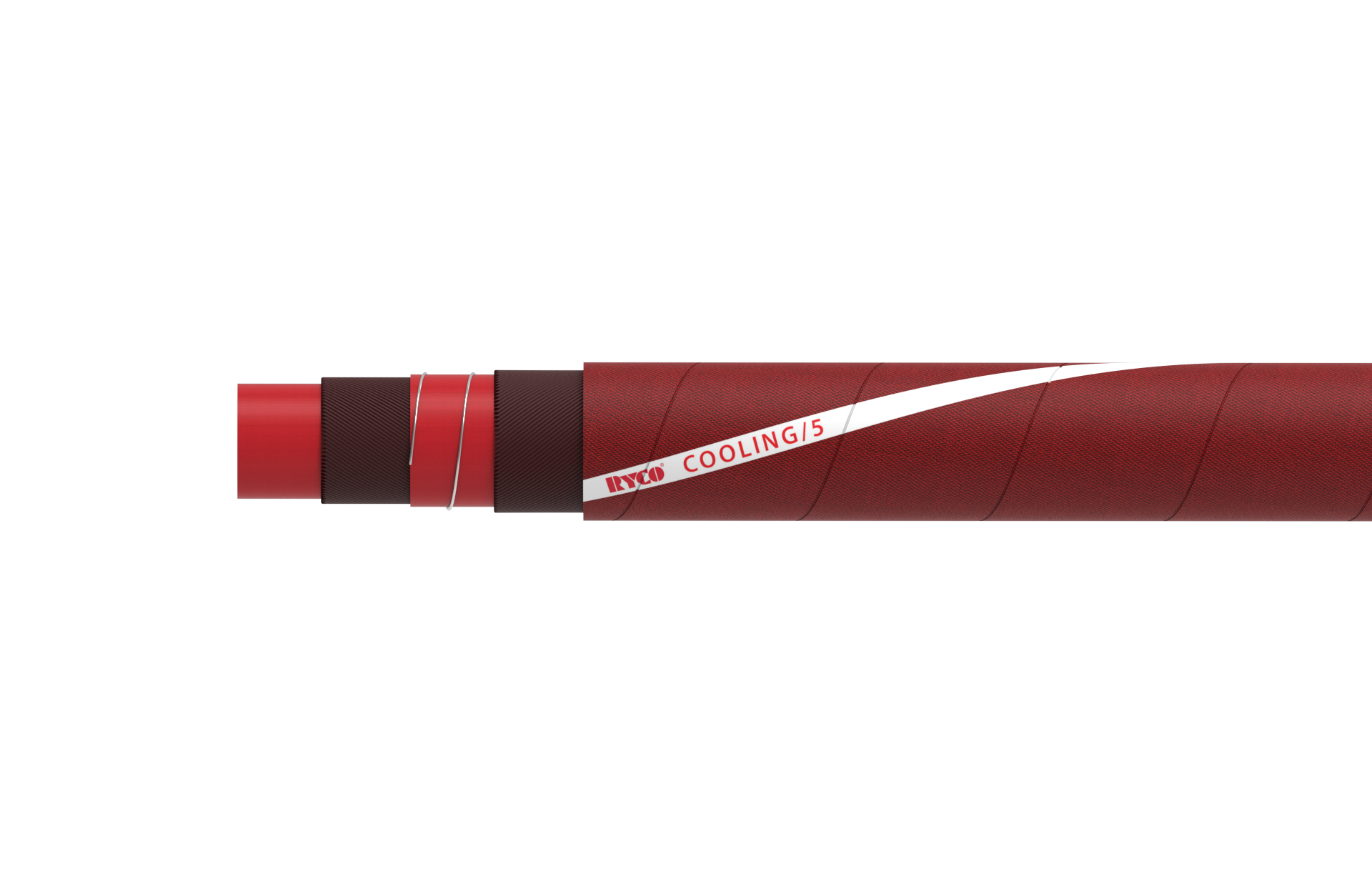

COOLING/5
COOLING/5
Industry & General purpose water cooling hose.
TUBE:
Red, VMQ silicone.
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire.
COVER:
Red VMQ sliicone, high temperature and weathering resistant.
KEY FEATURES:
- Hardwall suction and delivery structure.
- Compact, lightweight and flexible.
- Highly robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 40m (DN16 to DN76); 20m (DN102).
APPLICATION & FLUIDS:
Suction & delivery of hot air and water in engine cooling systems.
TEMPERATURE RANGE:
From -60°C to + 200°C (-76°F to +392°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
