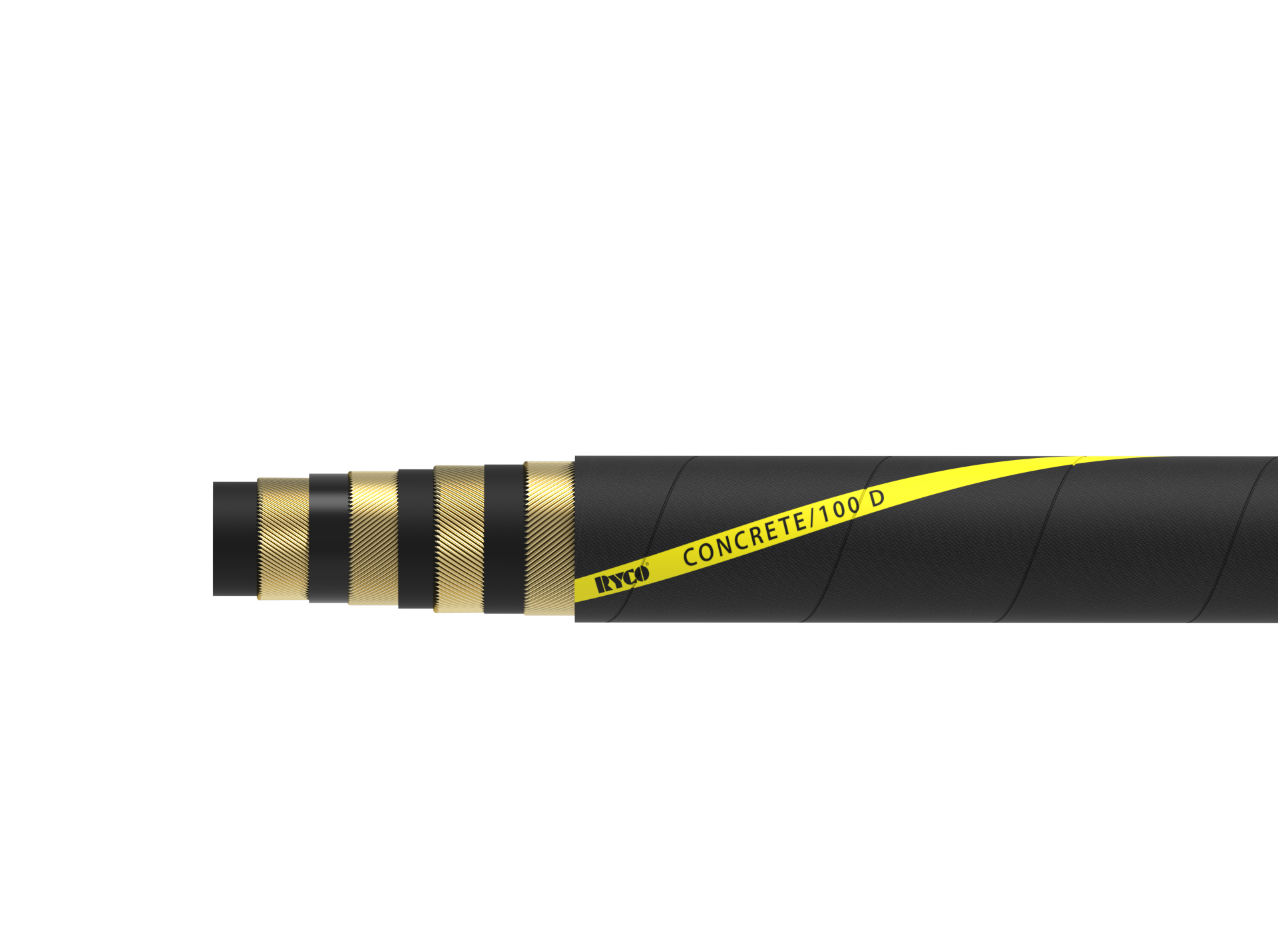

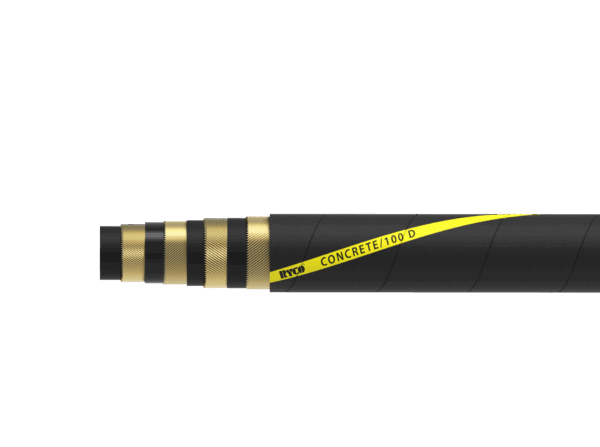

CONCRETE/100 D
Additional information
CONCRETE/100 D
Delivery hose for high-pressure concrete pumping.
TUBE:
Black, anti-static NR/SBR rubber, abrasion resistant thick tube.
REINFORCEMENT:
High tensile steel cord.
COVER:
Black, anti-static NR/SBR rubber, abrasion and weathering resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Robust hose structure for longer life in severe applications.
- High abrasion resistance.
- Integrated crimped fitting solution.
- Long length assemblies available – Max length: 40m.
APPLICATION & FLUIDS:
High-pressure pumping of concrete, plaster, bentonite etc. in construction.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
| CONCRETE/100 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| C100D32 | 51 | 2″ | FF+D08000 SERIES |
| C100D40 | 63 | 2.1/2″ | FF+D08000 SERIES |
| C100D48 | 76 | 3″ | FF+D08000 SERIES |
| C100D56 | 89 | 3.1/2″ | FF+D08000 SERIES |
| C100D64 | 102 | 4″ | FF+D08000 SERIES |
| C100D80 | 127 | 5″ | FF+D08000 SERIES |
