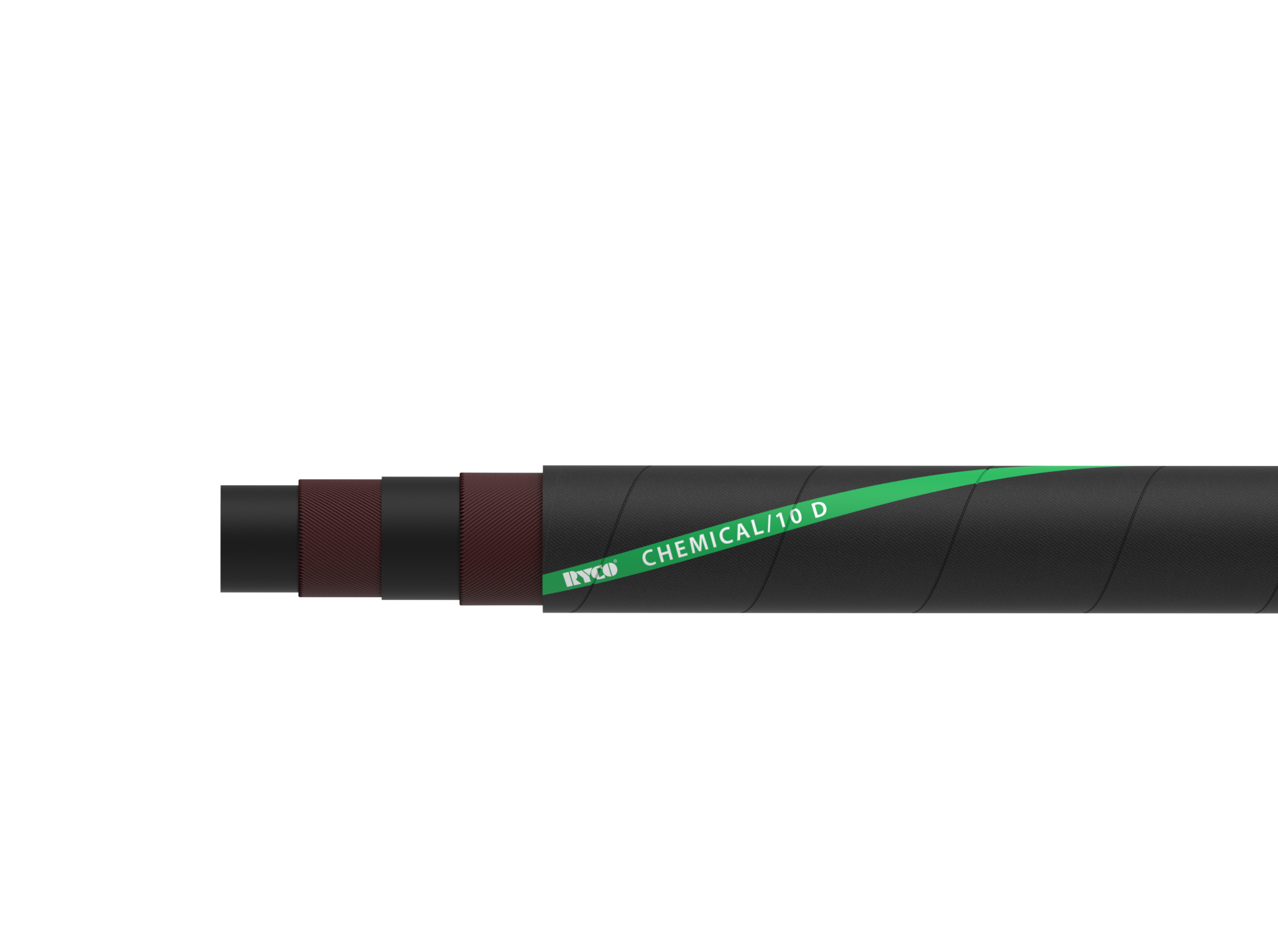

CHEMICAL/10 D
CHEMICAL/10 D

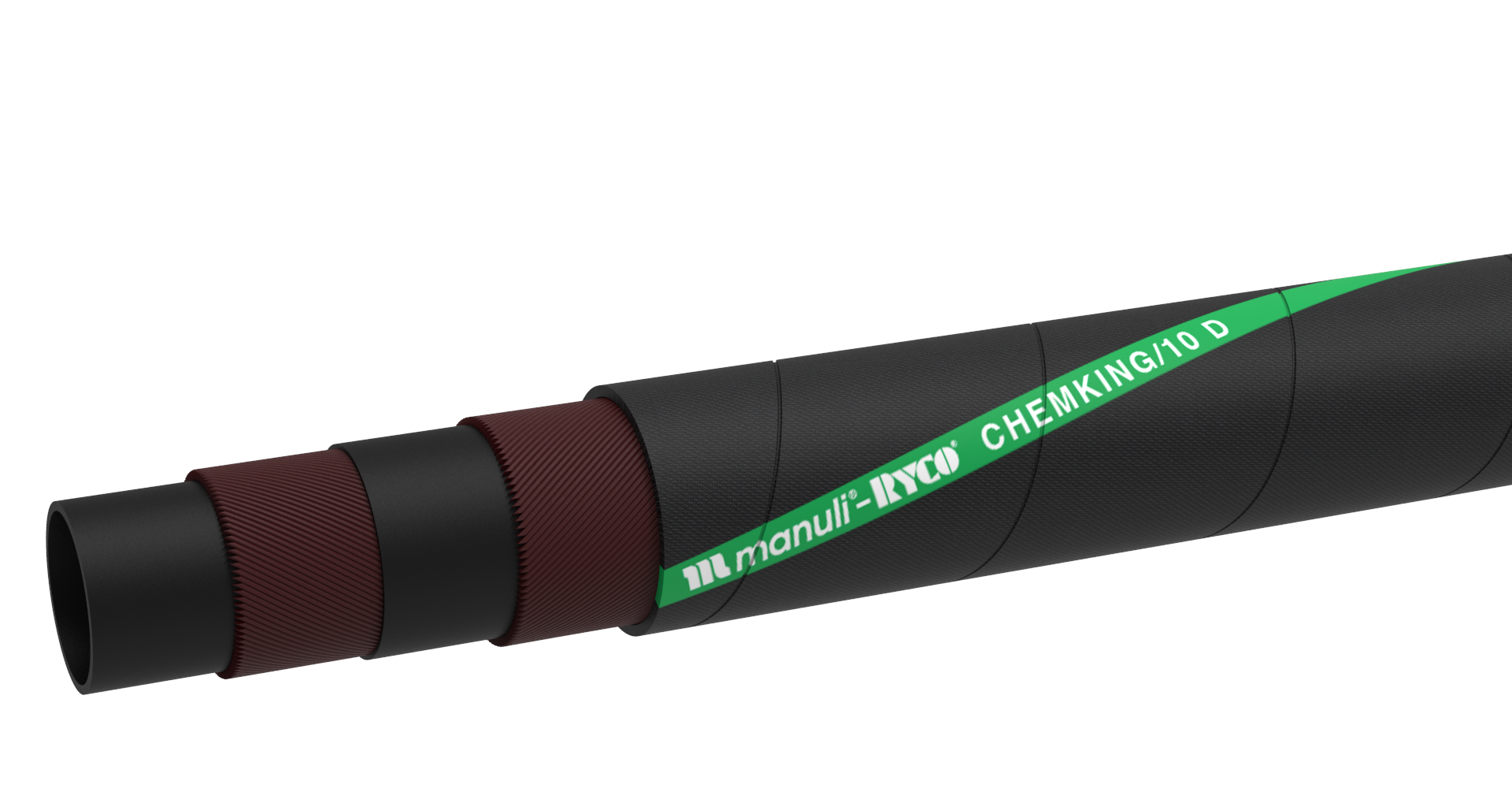

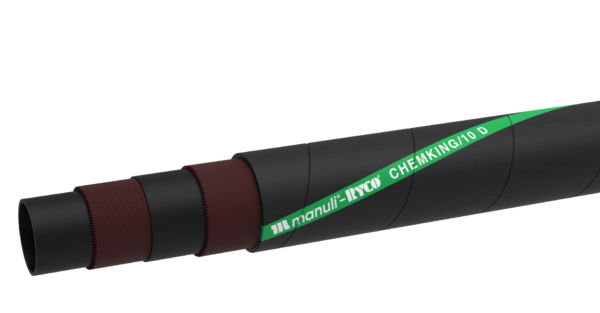

FKM delivery hose for aggressive chemicals.
TUBE:
Black FKM rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic CR rubber, chemical, oil, ozone and weathering resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 20m (DN6 – DN10); 40m (DN12 – DN51).
APPLICATION & FLUIDS:
Delivery of aggressive chemicals and acids in high concentrations.
TEMPERATURE RANGE:
From -35°C to + 100°C (-31°F to +212°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
