CHEMICAL/16 SDA EN 12115

CHEMICAL/16 SDA EN 12115

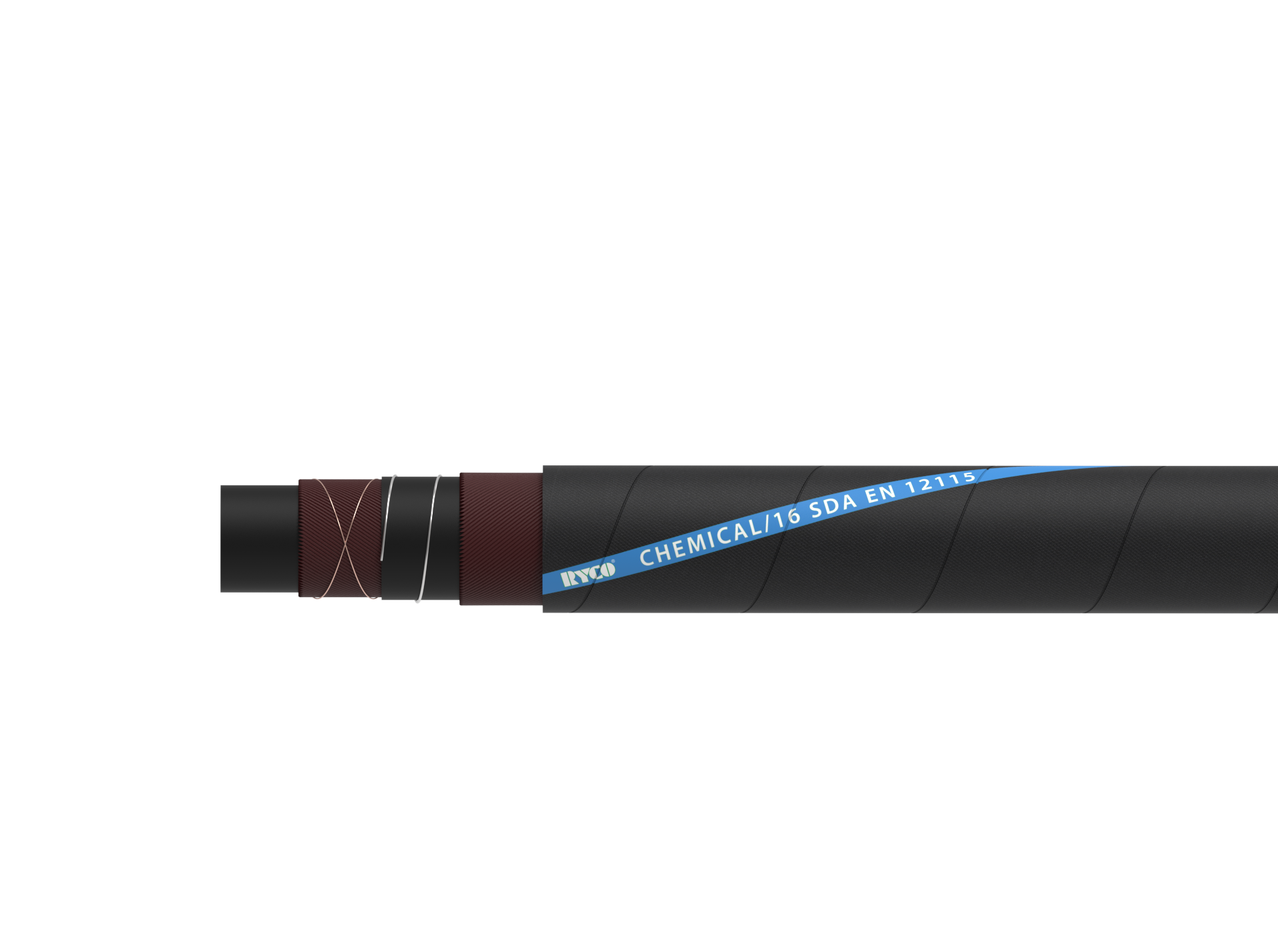

Anti-static UHMWPE suction & delivery hose for chemical products EN 12115.

TUBE:

Black conductive UHMWPE.

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.

COVER:

Black synthetic CR rubber, fire-proof, anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.

APPLICATION & FLUIDS:

Suction & delivery for chemicals, oils, fuels and bunkering.

Cover compound is tested an approved according to EN 60079- 0:2012 (R ≤ 109 Ohm/m).

Hose structure designed to assure and maintain the requirements for the ATEX working conditions.

TEMPERATURE RANGE:

From -20°C to + 100°C (-4°F to +212°F).

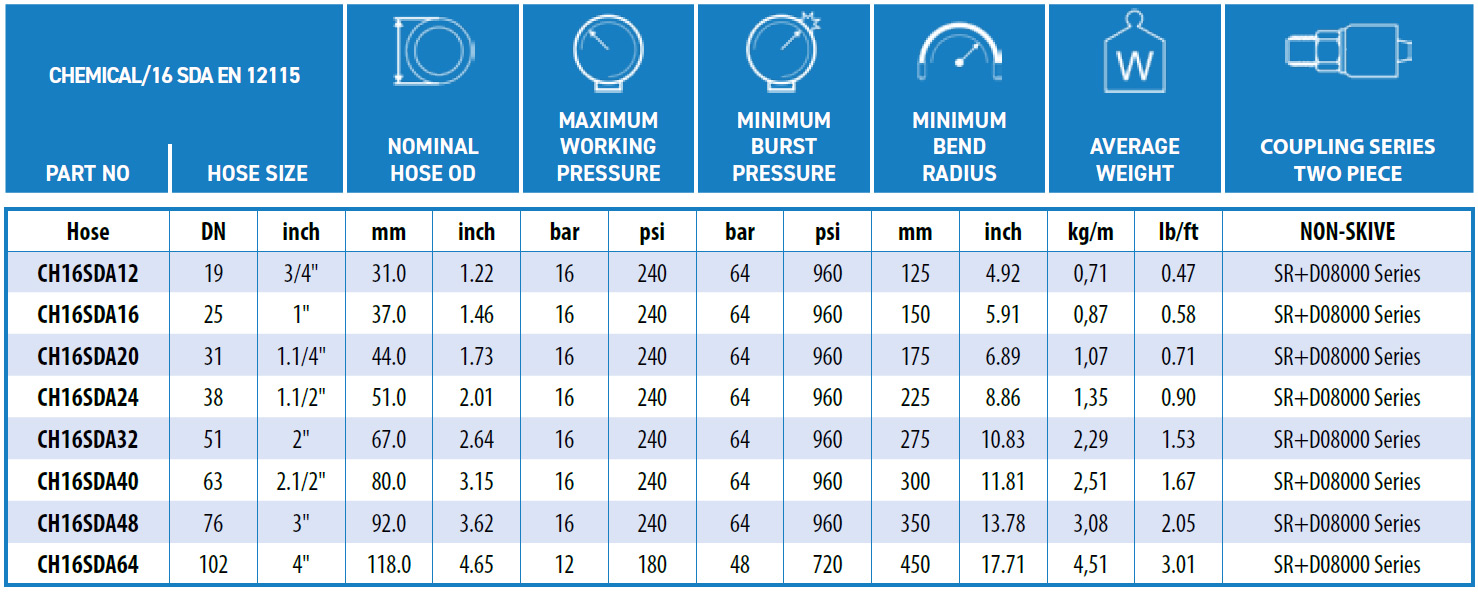

WORKING PRESSURE:

Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

APPLICABLE SPECS:

EN 12115 (Grade Ω/T) / TRbF / FDA; EN 60079-0.

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.
