CHEMICAL/16 SD EN 12115
Additional information
CHEMICAL/16 SD EN 12115

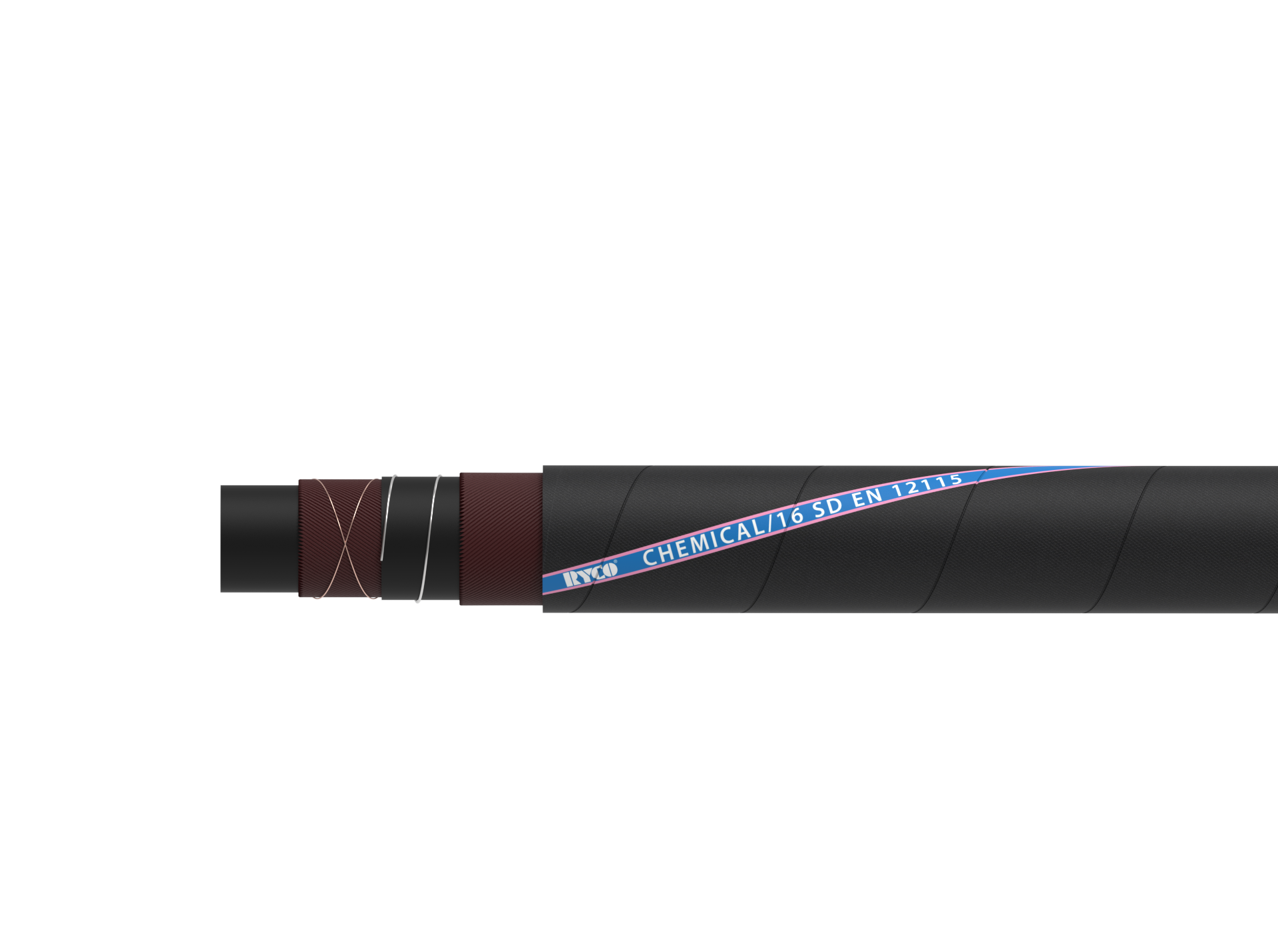

FEP suction & delivery hose for chemical products EN 12115.
TUBE:
White glossy non-conductive FEP (Fluorinated ethylene propylene).
REINFORCEMENT:
High tensile synthetic cord with steel helix body wire and 2 crossing copper wires for grounding.
COVER:
Black synthetic CR rubber, fire-proof, anti-static (R<106 Ohm/m), chemical, ozone and weathering resistant.
KEY FEATURES:
- Hardwall delivery structure.
- Compact, lightweight and flexible.
- Robust hose structure for longer life in severe applications.
- Long length assemblies available – Max length: 20m.
APPLICATION & FLUIDS:
Suction & delivery for chemicals, petroleum and food stuffs as per EN 12115 specifications.
Hose tube is FDA approved.
TEMPERATURE RANGE:
From -50°C to + 170°C (-58°F to +338°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).
APPLICABLE SPECS:
EN 12115 (Grade M) / TRbF / FDA.
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

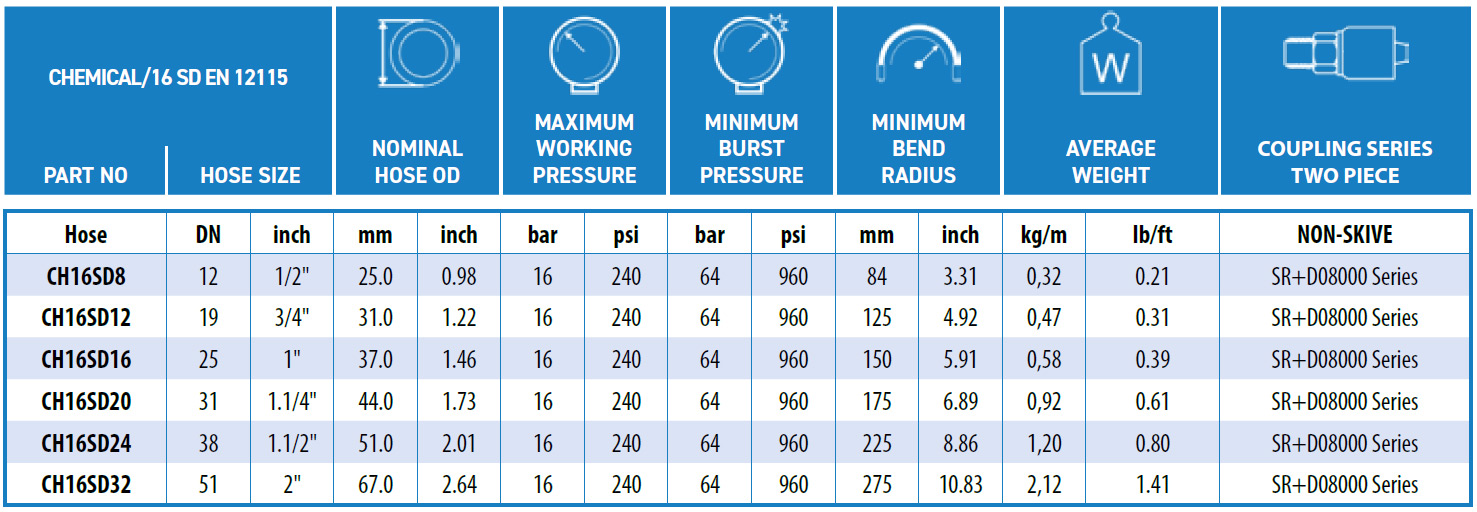

| CHEMICAL/16 SD EN 12115 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| CH16SD8 | 12 | 1/2″ | SR+D08000 SERIES |
| CH16SD12 | 19 | 3/4″ | SR+D08000 SERIES |
| CH16SD16 | 25 | 1″ | SR+D08000 SERIES |
| CH16SD20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| CH16SD24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| CH16SD32 | 51 | 2″ | SR+D08000 SERIES |
