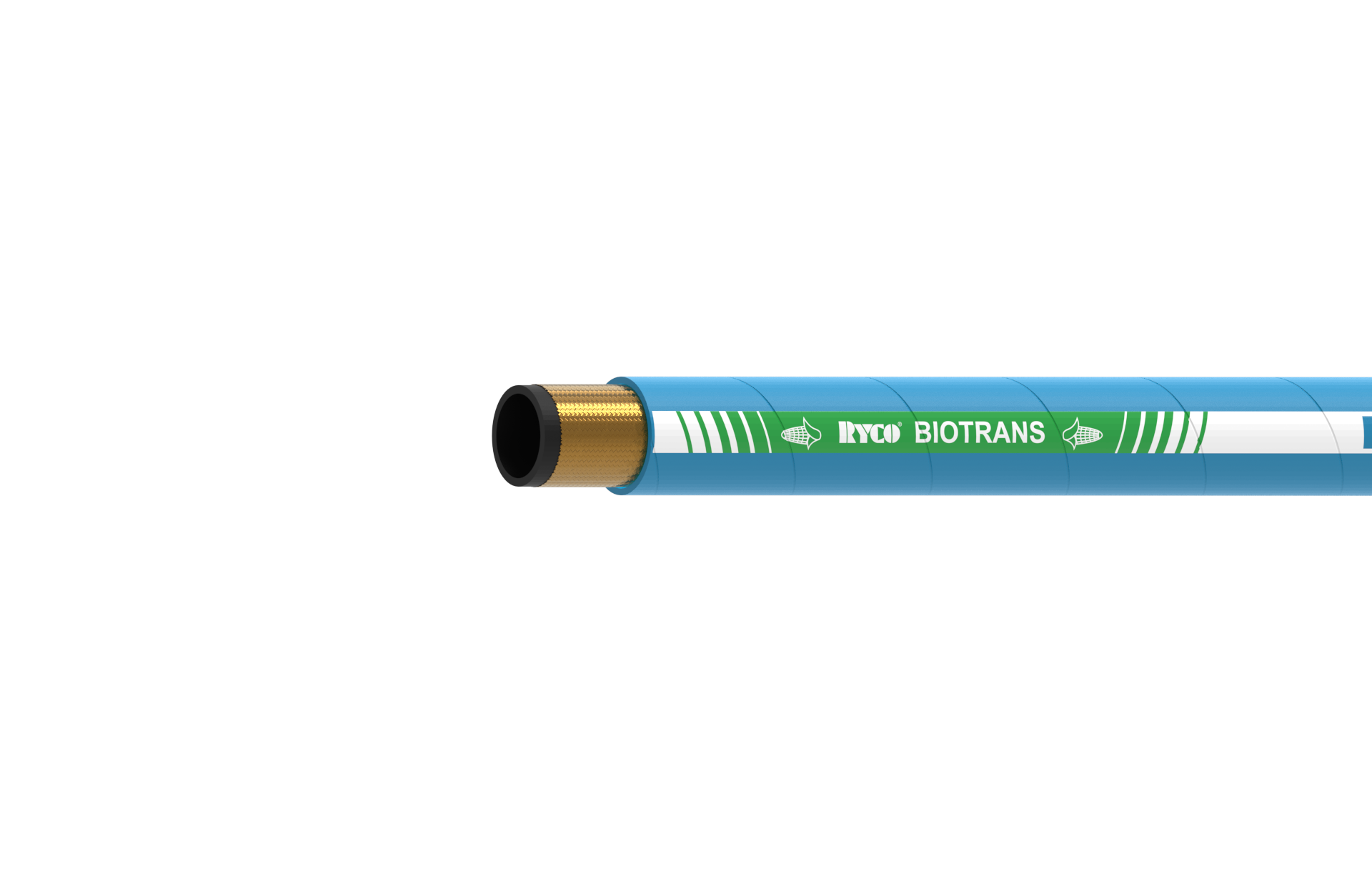

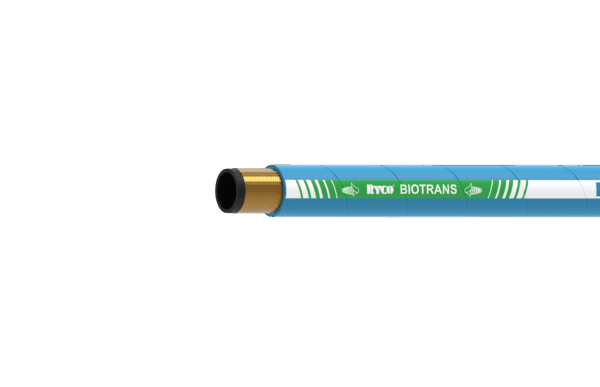

BT1 BIOTRANS

RECOMMENDED FOR:
Transportation, marine fuel and engine hose applications. Low pressure hydraulic oil return lines, general purpose water, glycol antifreeze solutions, biodiesel, diesel fuel, ethanol, gasoline/petrol or air.

PERFORMANCE:
Meets or Exceeds the Performance Requirements of:
SAE J1527 Type Class I, USCG SAE J1942, SAE J30R2 (non-marine). Meets SAE J30R2 performance requirements for non-marine applications and SAE J1527 Type Class I and USCG SAEJ1942 for marine applications.

TUBE:
Black, oil resistant synthetic rubber.

REINFORCEMENT:
One braid of high tensile steel wire.

COVER:
Blue, oil resistant and abrasion resistant synthetic rubber.

MSHA – FLAME RESISTANCE:
Complies with Flame Resistant requirements of Australian Standard AS 2660 and Method of Test AS 1180.10B. Meets Flame Resistant Designation “U.S. MSHA” of the US Department of Labor, Mine Safety and Health Administration.

WORKING PRESSURE:
Maximum working pressures are based on 4:1 safety factor (maximum working pressure to minimum burst pressure).

THIRD PARTY APPROVALS:
ABS, DNV-GL, LR, MED, USCG, DOT, GOST-R, BV, RINA and KR.

COUPLINGS:
NON-SKIVE ONE-PIECE CRIMP
T2000 Series (sizes -04 to -16).

FIELD ATTACHABLE NON-SKIVE
6000 Series insert (sizes -04 to -16).
K000 Series ferrule (sizes -04 to -16).
