AIR & WATER COMPRESSOR/27

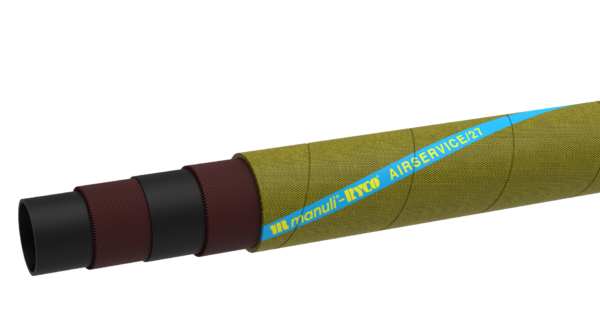

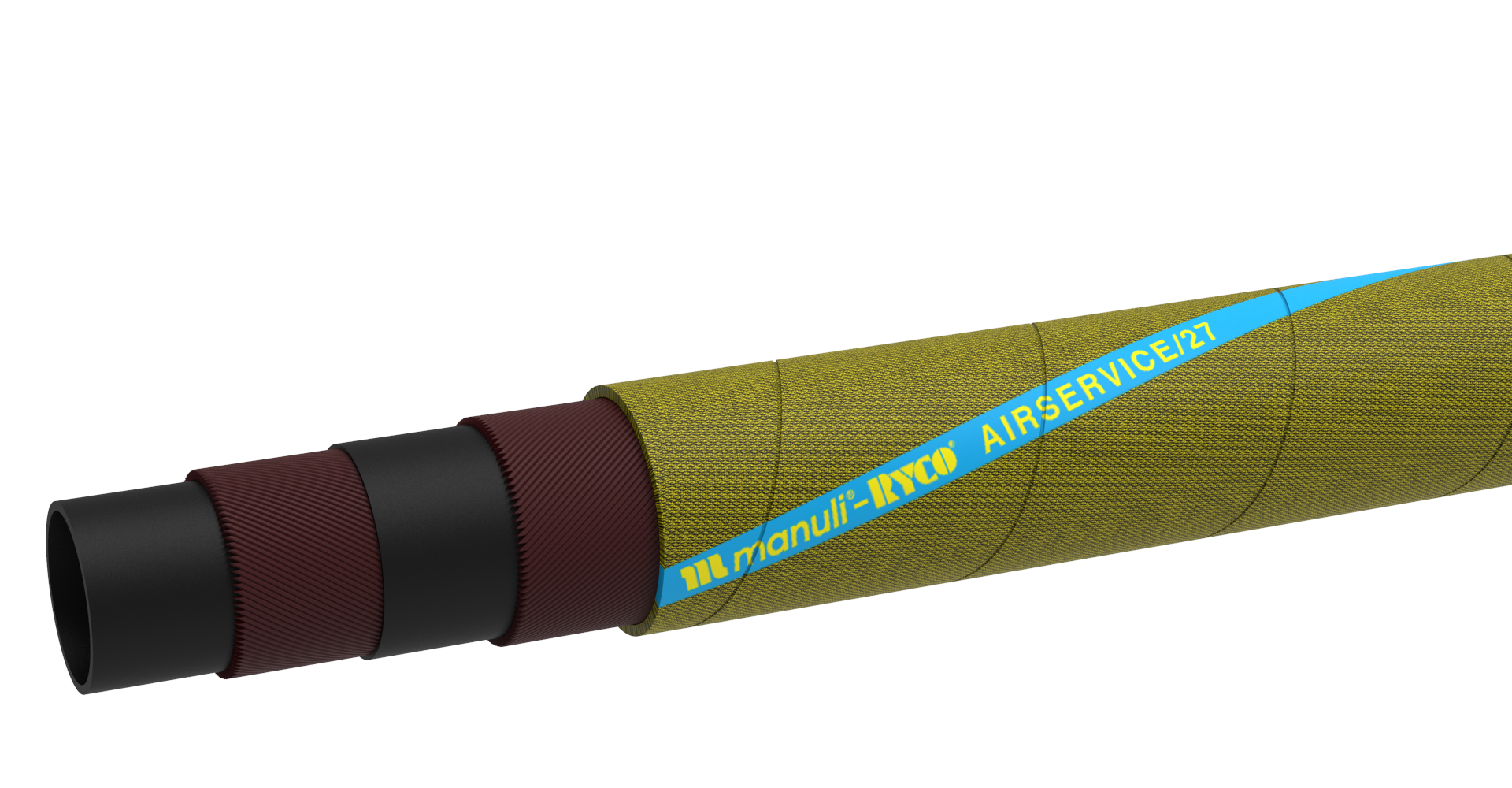

Water & Air compressor hose heavy duty.
TUBE:
Black, synthetic SBR rubber, resistant to oil traces.
REINFORCEMENT:
High tensile textile layers.
COVER:
Yellow synthetic NBR/PVC rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Softwall delivery structure.
- Highly robust heavy duty hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air with oil traces, to be used in mining, construction, etc.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

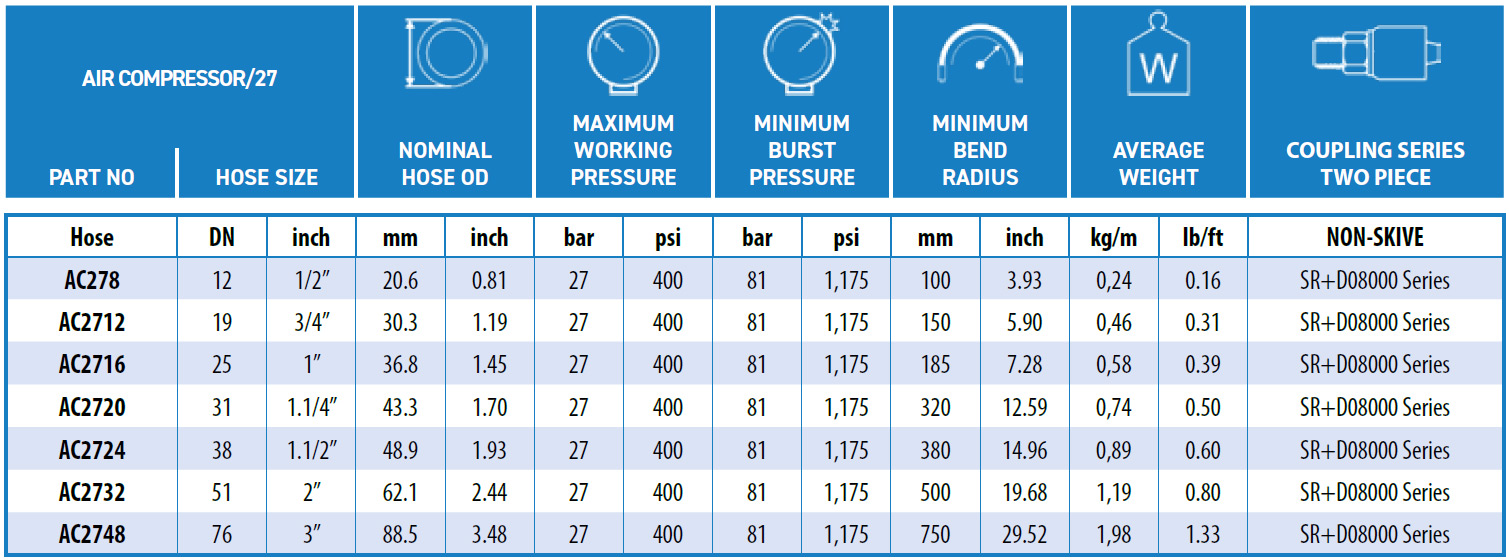

| AIR & WATER COMPRESSOR/27 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AC278 | 12 | 1/2″ | SR+D08000 SERIES |
| AC2712 | 19 | 3/4″ | SR+D08000 SERIES |
| AC2716 | 25 | 1″ | SR+D08000 SERIES |
| AC2720 | 31 | 1.1/4″ | SR+D08000 SERIES |
| AC27241 | 38 | 1.1/2″ | SR+D08000 SERIES |
| AC2732 | 51 | 2″ | SR+D08000 SERIES |
| AC2748 | 76 | 3″ | SR+D08000 SERIES |
DISCLAIMER:
We reserve the right to modify our products and/or related services and/or discontinue the manufacture and/or supply of any of the products and/or related services, without notice. The only official source of technical crimping parameters regarding our products is our Crimp Digital Tools. Printed copies are uncontrolled therefore, please be sure to download the latest version of our App or visit our Web Tool:
