| AIR & WATER COMPRESSOR/27 | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AC278 | 12 | 1/2″ | SR+D08000 SERIES |
| AC2712 | 19 | 3/4″ | SR+D08000 SERIES |
| AC2716 | 25 | 1″ | SR+D08000 SERIES |
| AC2720 | 31 | 1.1/4″ | SR+D08000 SERIES |
| AC27241 | 38 | 1.1/2″ | SR+D08000 SERIES |
| AC2732 | 51 | 2″ | SR+D08000 SERIES |
| AC2748 | 76 | 3″ | SR+D08000 SERIES |
Additional information

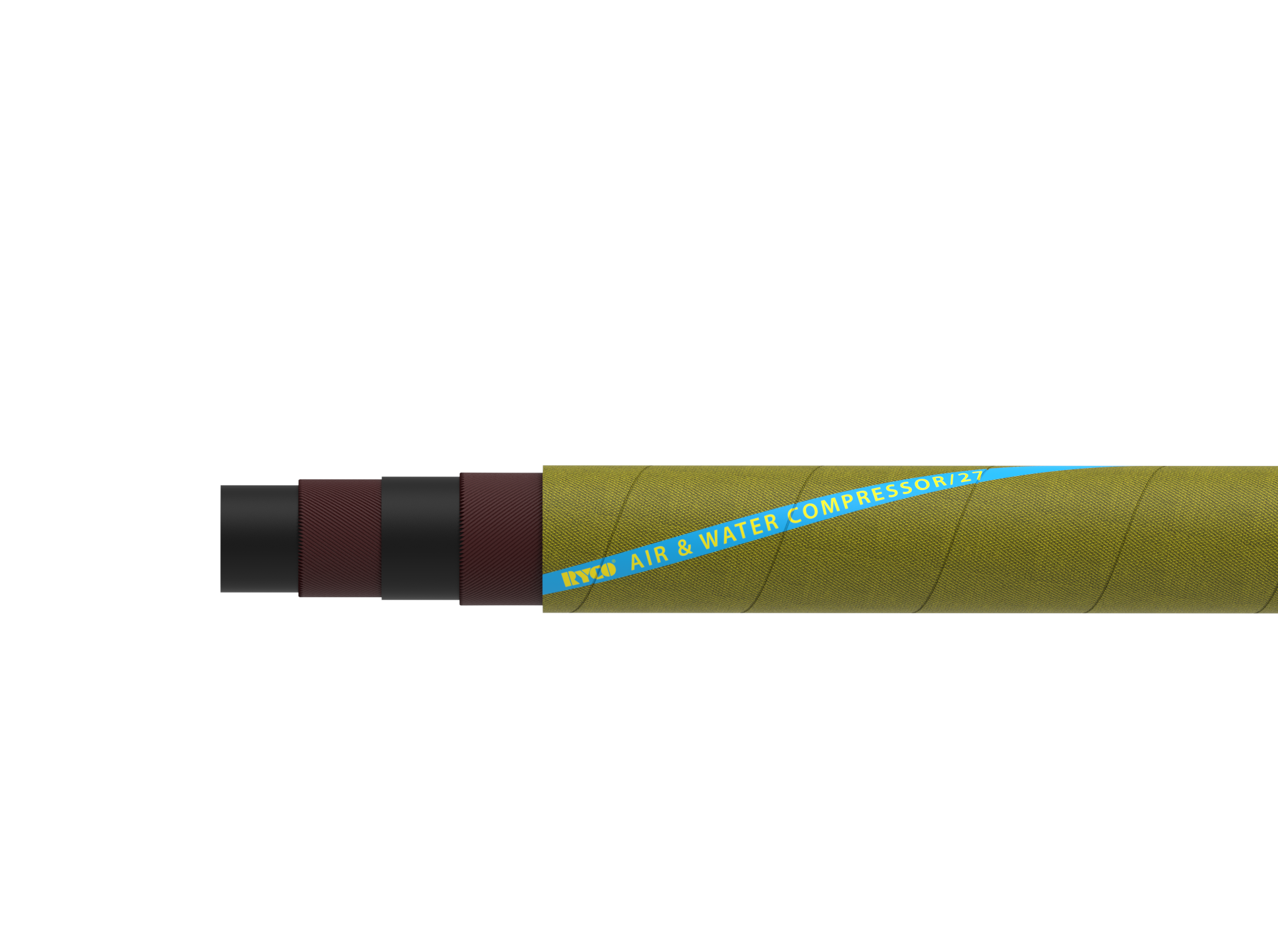

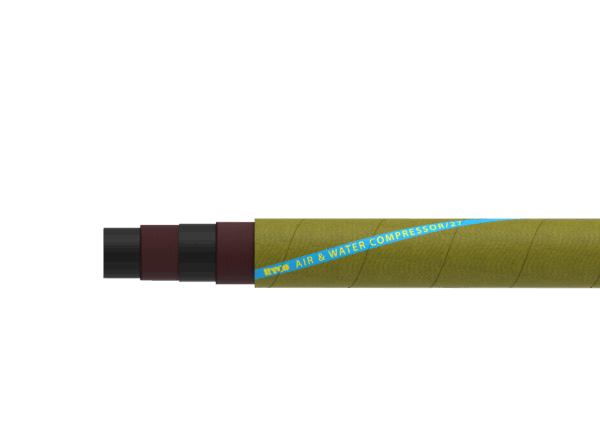

AIR & WATER COMPRESSOR/27
AIR & WATER COMPRESSOR/27
Water & Air compressor hose heavy duty.
TUBE:
Black, synthetic SBR rubber, resistant to oil traces.
REINFORCEMENT:
High tensile textile layers.
COVER:
Yellow synthetic NBR/PVC rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Softwall delivery structure.
- Highly robust heavy duty hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air with oil traces, to be used in mining, construction, etc.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
