AIR & WATER/12 SD

AIR & WATER/12 SD

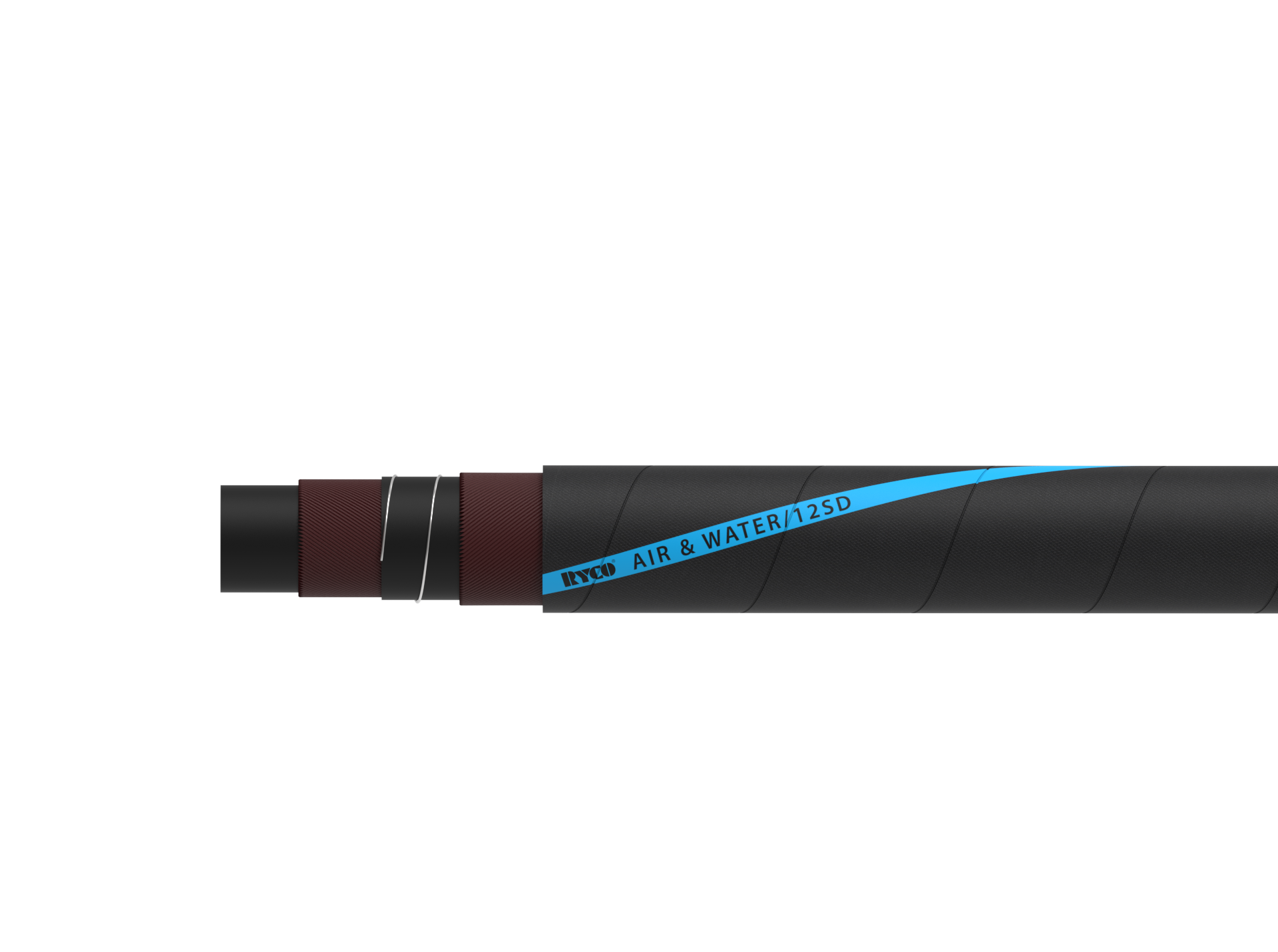

Water & air hose.

TUBE:

Black, smooth, synthetic SBR rubber.

REINFORCEMENT:

High tensile synthetic cord with steel helix body wire.

COVER:

Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.

KEY FEATURES:

• Hardwall suction and delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 60m.

APPLICATION & FLUIDS:

Water or compressed air, to be used in mining, construction, shipyards, etc.

TEMPERATURE RANGE:

From -35°C to + 80°C (-31°F to +176°F).

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.

Market Fittings.
