| AIR & WATER/12 D | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AW12D8 | 12 | 1/2″ | SR+D08000 SERIES |
| AW12D12 | 19 | 3/4″ | SR+D08000 SERIES |
| AW12D16 | 25 | 1″ | SR+D08000 SERIES |
| AW12D20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| AW12D24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| AW12D32 | 51 | 2″ | SR+D08000 SERIES |
| AW12D40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| AW12D48 | 76 | 3″ | SR+D08000 SERIES |
Additional information

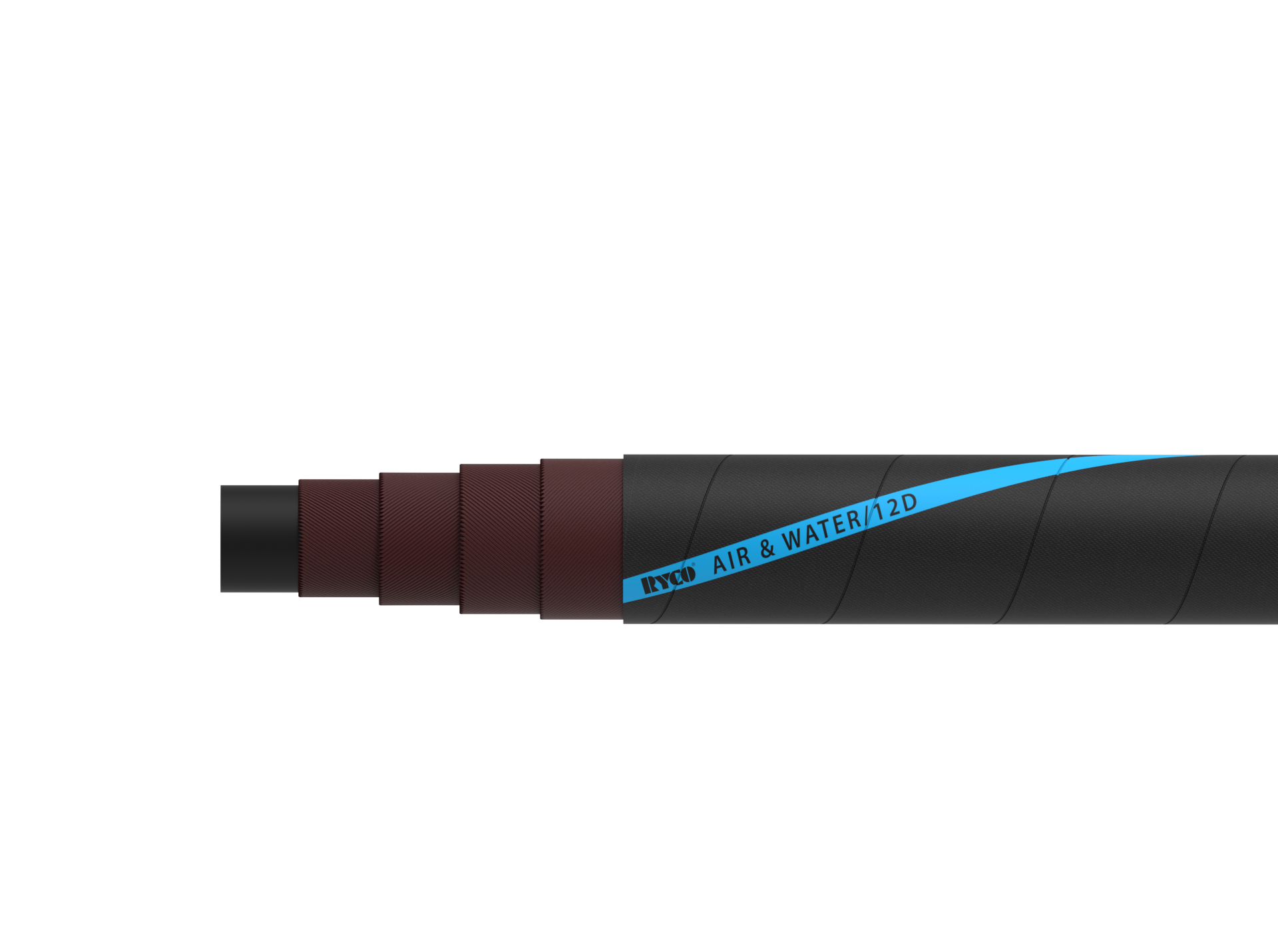

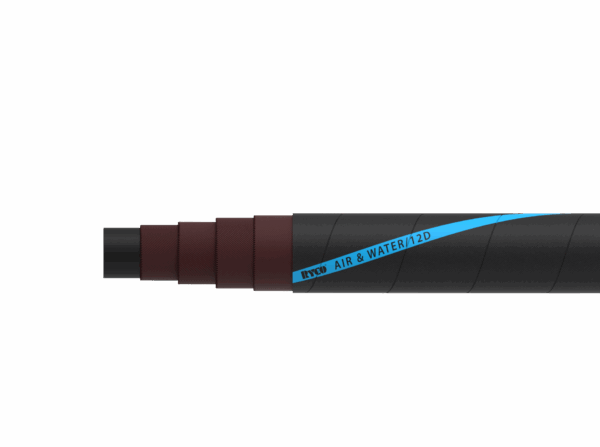

AIR & WATER/12 D
AIR & WATER/12 D
Water & air hose.
TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
High tensile synthetic cord.
COVER:
Black synthetic SBR rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
Softwall delivery structure.
Highly robust hose structure.
Long lasting in severe applications.
Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
Water or compressed air, to be used in mining, construction, shipyards, etc.
TEMPERATURE RANGE:
From -35°C to + 80°C (-31°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.
