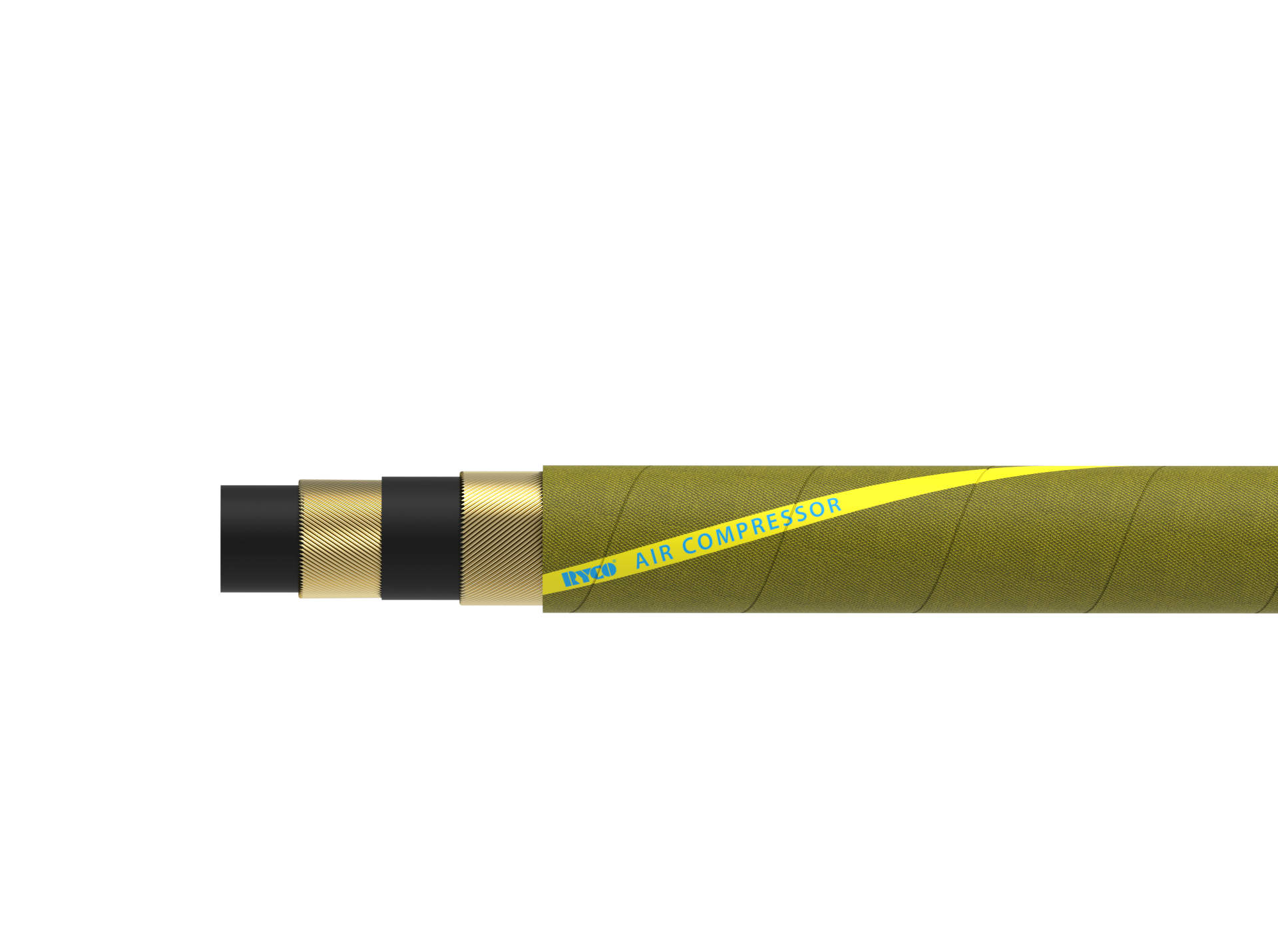

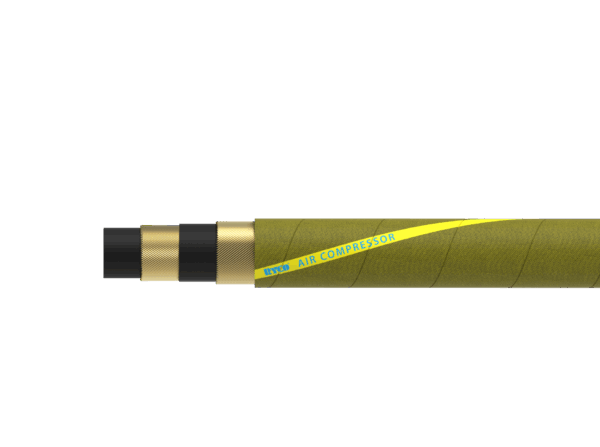

AIR COMPRESSOR
Air compressor hose heavy duty.
TUBE:
Black, smooth, synthetic SBR rubber.
REINFORCEMENT:
Two wire braids or multiple piles of high tensile steel wire spirals.
COVER:
Yellow synthetic NBR/PVC rubber, long lasting, weathering and ozone resistant. Cover is pin-pricked.
KEY FEATURES:
- Heavy duty softwall delivery structure.
- Robust hose structure.
- Long lasting in severe applications.
- Long length assemblies available – Max length: 60m.
APPLICATION & FLUIDS:
High pressure compressed air and oil traces,to be used in mining, construction, etc.
Typically used in compressed air systems and power transmission.
TEMPERATURE RANGE:
From -40°C to + 80°C (-40°F to +176°F).
WORKING PRESSURE:
Maximum working pressures are based on 4:1 (maximum working pressure to minimum burst pressure).
COUPLINGS:
TWO-PIECE CRIMP
SR + D08000 Series.

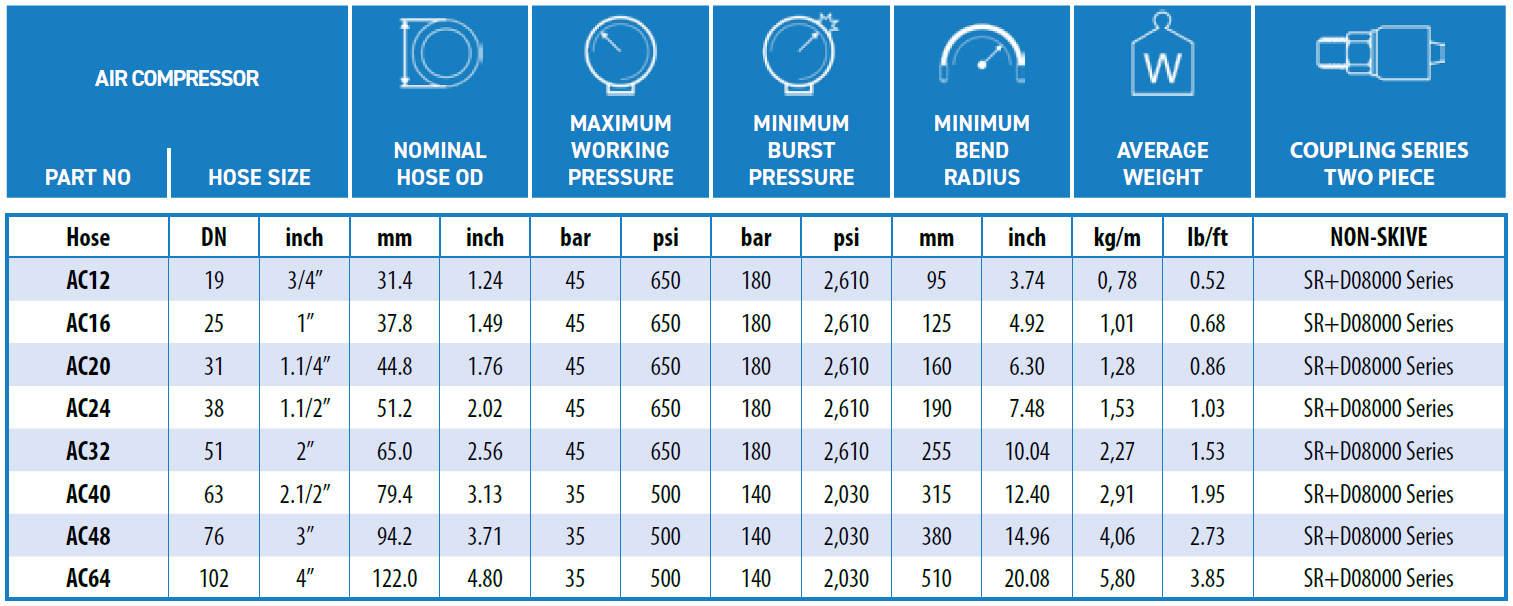

| AIR COMPRESSOR | MATCH COUPLING SERIES | ||
| PART NO | HOSE SIZE | TWO-PIECE | |
| HOSE | DN | INCH | NON-SKIVE |
| AC12 | 19 | 3/4″ | SR+D08000 SERIES |
| AC16 | 25 | 1″ | SR+D08000 SERIES |
| AC20 | 31 | 1.1/4″ | SR+D08000 SERIES |
| AC24 | 38 | 1.1/2″ | SR+D08000 SERIES |
| AC32 | 51 | 2″ | SR+D08000 SERIES |
| AC40 | 63 | 2.1/2″ | SR+D08000 SERIES |
| AC48 | 76 | 3″ | SR+D08000 SERIES |
| AC64 | 102 | 4″ | SR+D08000 SERIES |
