CONCRETE/100 D

CONCRETE/100 D

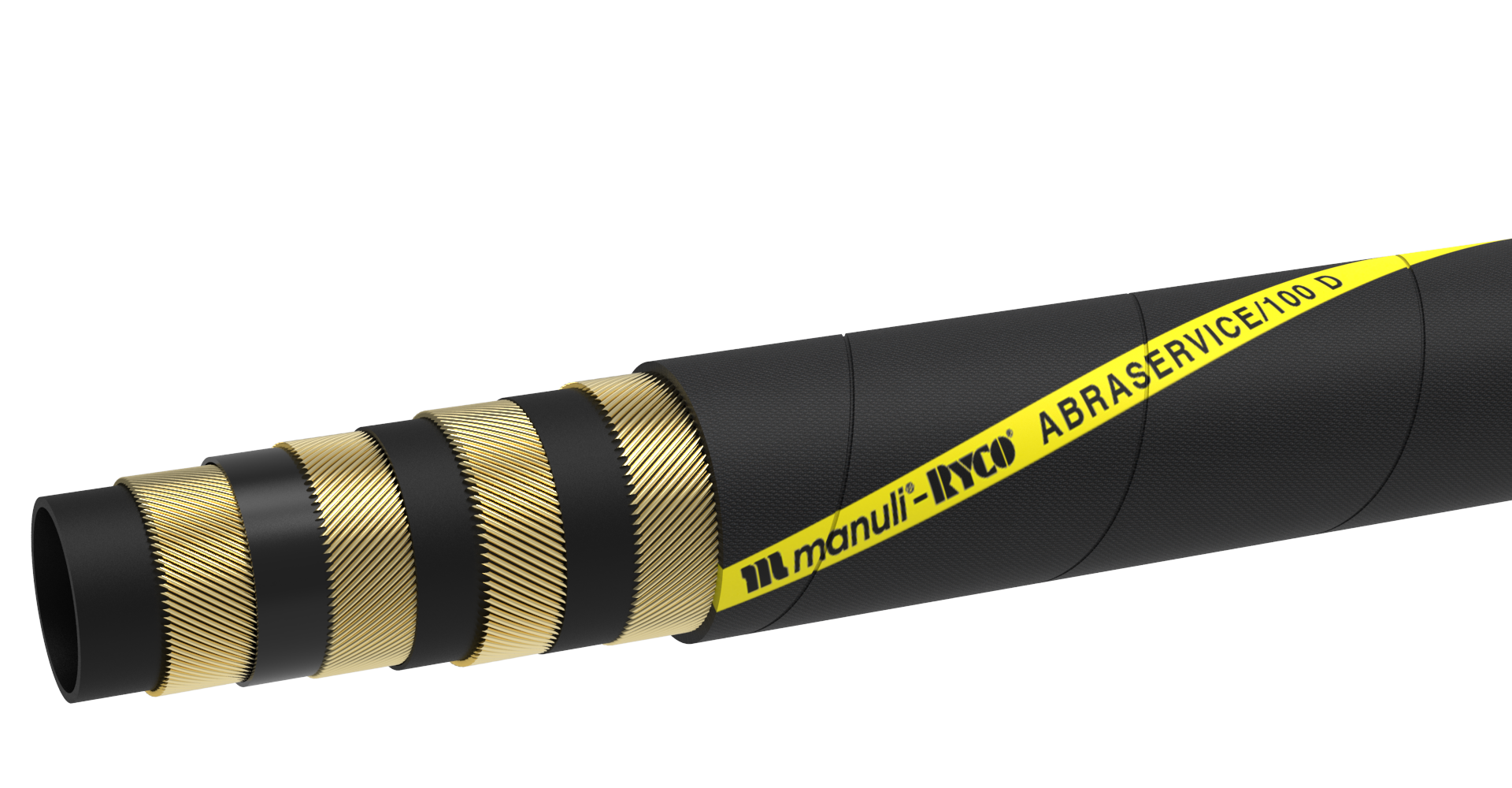

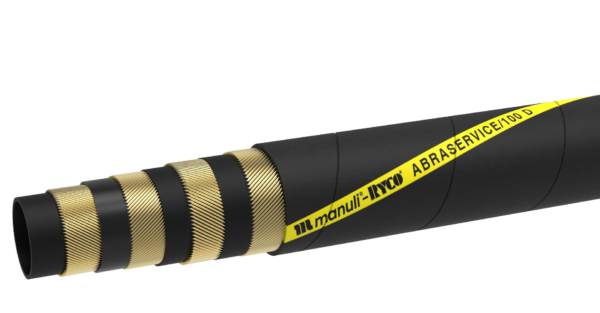

Delivery hose for high-pressure concrete pumping.

TUBE:

Black, anti-static NR/SBR rubber, abrasion resistant thick tube.

REINFORCEMENT:

High tensile steel cord.

COVER:

Black, anti-static NR/SBR rubber, abrasion and weathering resistant.

KEY FEATURES:

• Hardwall delivery structure.
• Robust hose structure for longer life in severe applications.
• High abrasion resistance.
• Integrated crimped fitting solution.
• Long length assemblies available – Max length: 40m.

APPLICATION & FLUIDS:

High-pressure pumping of concrete, plaster, bentonite etc. in construction.

TEMPERATURE RANGE:

From -40°C to + 80°C (-40°F to +176°F).

WORKING PRESSURE:

Maximum working pressures are based on 2.5:1 safety factor (maximum working pressure to minimum burst pressure).

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.
