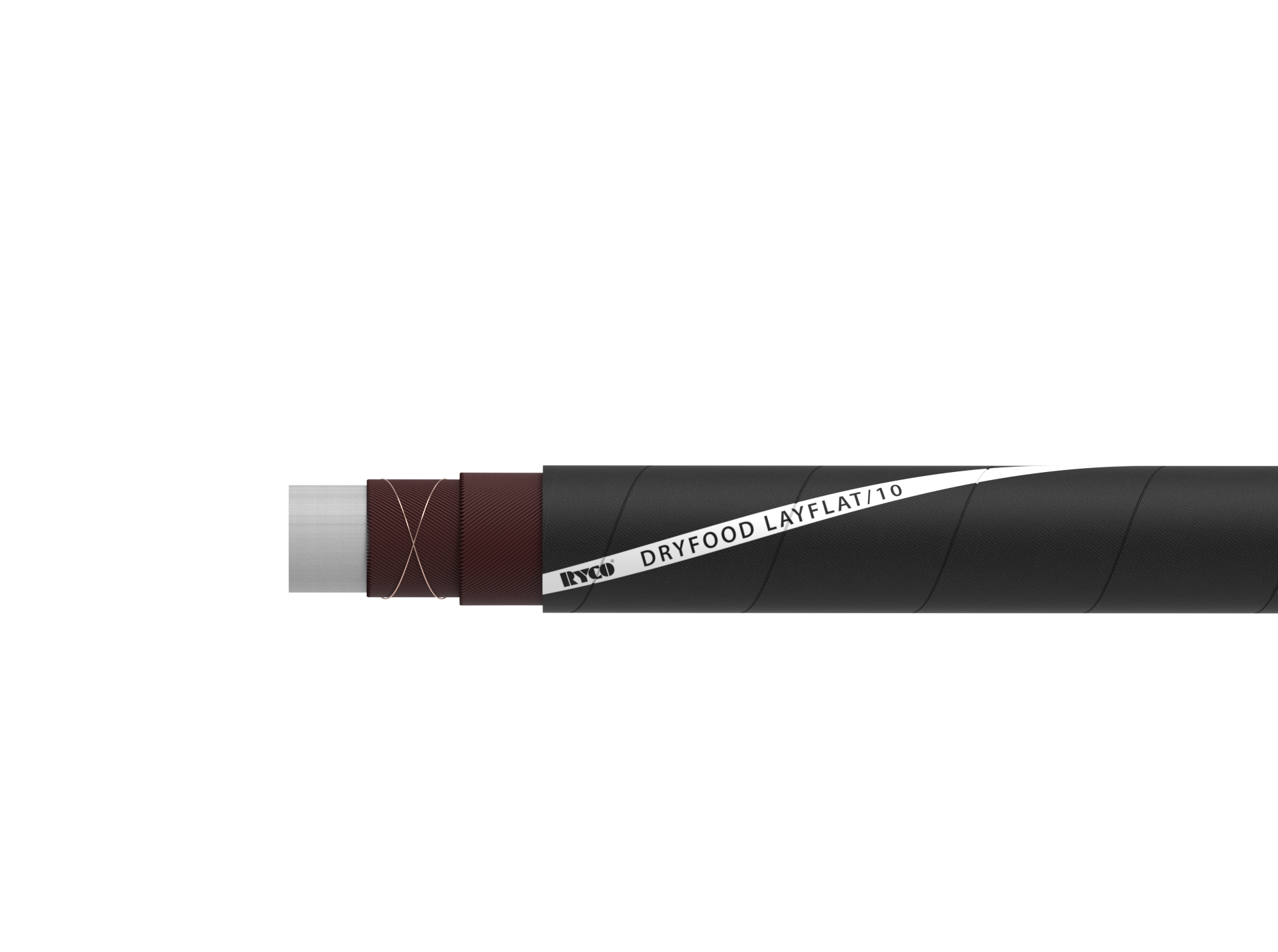

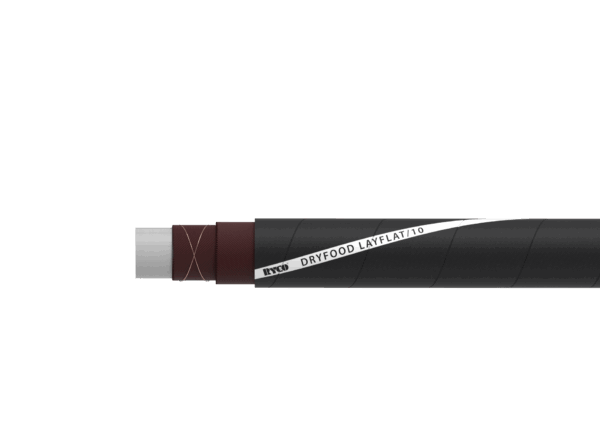

DRY FOOD LAYFLAT/10

DRY FOOD LAYFLAT/10

Layflat hose for dry foods (grains, seed, rice etc.)

TUBE:

White NR rubber, food quality odourless and taste-free .

REINFORCEMENT:

High tensile synthetic cord and 2 crossed copper wires for hose grounding.

COVER:

Black CR rubber, fire proof, anti-static (R<1G Ohm/m), chemical, ozone and weathering resistant.

KEY FEATURES:

• Layflat delivery structure.
• Compact, lightweight and flexible.
• Robust hose structure for longer life in severe applications.
• Long length assemblies available – Max length: 61m.

APPLICATION & FLUIDS:

Delivery hose for dry and abrasive food stuffs (eg: grains, seed, rice, sugar, flour and animal food).

Cover compound is tested an approved according to EN 60079-0:2012 (R ≤ 109 Ohm/m).

Hose structure designed to assure and maintain the requirements for the ATEX working conditions.

TEMPERATURE RANGE:

From -40°C to + 80°C (-40°F to +176°F) – sterilization at 110°C / 230°F for 30 minutes.

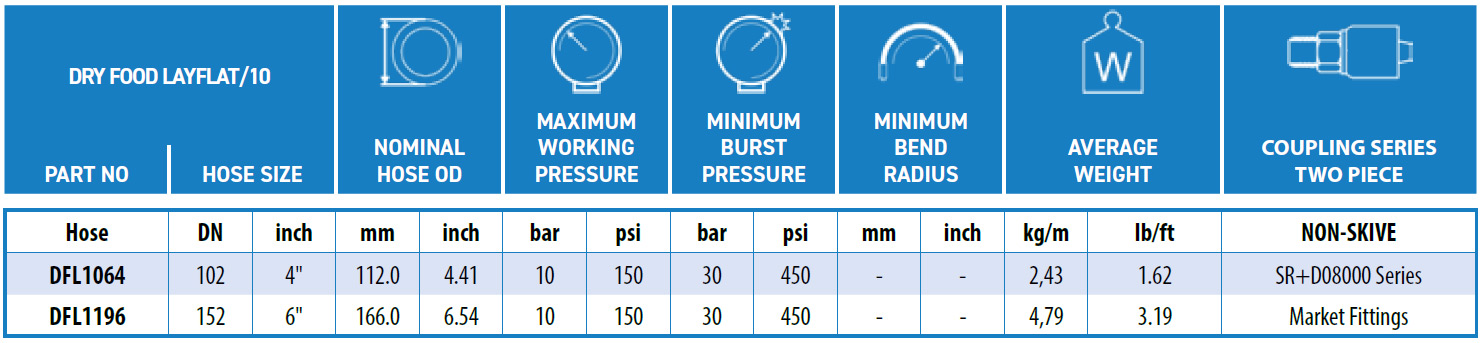

WORKING PRESSURE:

Maximum working pressures are based on 3:1 safety factor (maximum working pressure to minimum burst pressure).

APPLICABLE SPECS:

FDA title 21 art. 177.2600 (a, b, c, d) for dry foods; BfR; ADI free;

D.M. 21/03/73; CE 1935/2004; PHTHALATE free; EN 60079.

COUPLINGS:

TWO-PIECE CRIMP

SR + D08000 Series.

Market Fittings.
