JIC 37° Flare & Uno (O Ring Boss) Threads

JSEAL™/JIC 37° Flare & UNO (O RING BOSS) Threads

JSEAL™ RYCO JSEAL™ Proprietary Connection
JIC JOINT INDUSTRIES COUNCIL Also known as whitworth 55° thread form
UN UNIFIED NATIONAL SAE J1926, ISO 11926-2

JIC & UNO (O RING BOSS) THREAD FORMS ARE THE SAME (ASME B1.1). METHOD OF SEALING DIFFERS.

JSEAL™ is a RYCO proprietary connection that is fully interchangeable and backwards compatible with standard JIC connections.

With a repositioned strike zone away from the male tip, JSEAL™ design drives unrivalled performance, eliminating sweating, cracking, and stretching, while simplifying installation.

The design of JSEAL™ features a convex female seat that is engineered to be used with any JIC Male connection.

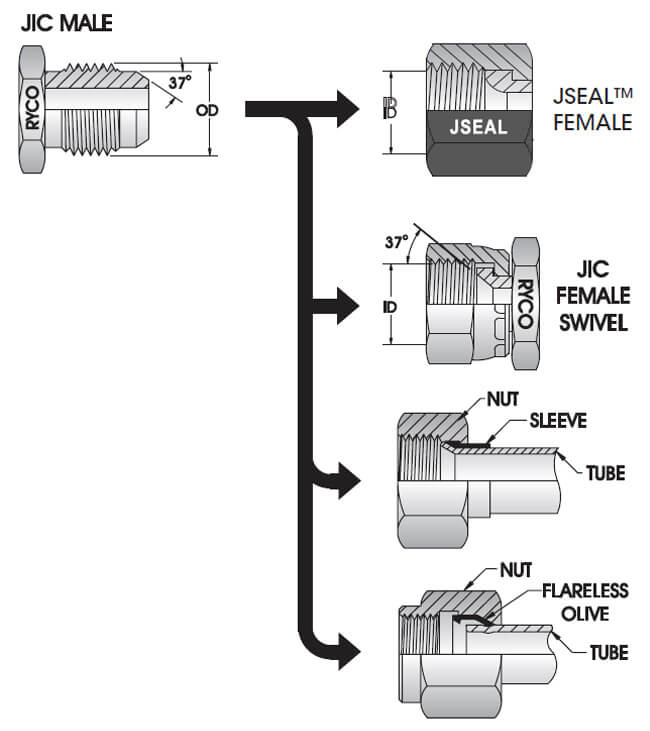

JIC male has 37° flare which seals against 37° seat in female.

JIC male can also seal against 37° flared tubing with JIC nut and sleeve.

JIC male can also be used with RYCO S134 J-Lok Female Nut and Flareless Olive on Imperial OD tubing.

JiC 37 Degrees Uno O Ring Boss Threads 01

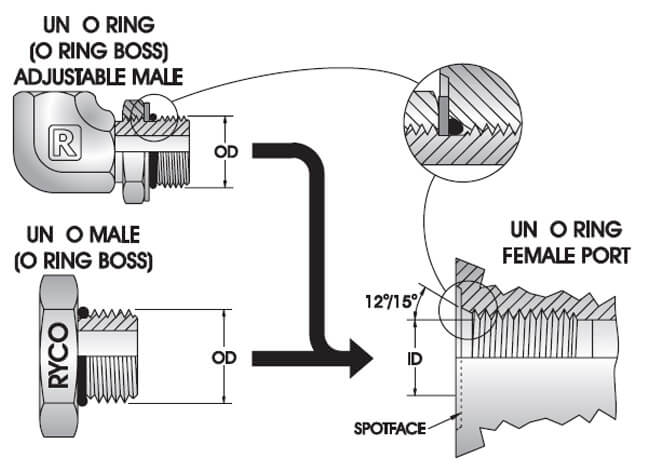

UNO (O Ring Boss) seals with O Ring compressed between hex boss of UN male and 12°/15° tapered bore of UN (O Ring Boss) female port.

For elbows and tees, Back up Washer and Lock Nut allow orientation of fitting to required direction.

JiC 37 Degrees Uno O Ring Boss Threads 02
MALE THREAD OD & PITCH DASH SIZE MALE THREAD OD FEMALE THREAD ID TUBESIZE
inch-TPI mm inch mm inch inch
5/16 – 24 UNF -05 7,9 0.31 6,9 0.27 1/8
3/8 – 24 UNF -06 9,5 0.38 8,5 0.33 3/16
7/16 – 20 UNF -07 11,1 0.44 9,9 0.39 1/4
1/2 – 20 UNF -08 12,7 0.50 11,4 0.45 5/16
9/16 – 18 UNF -09 14,3 0.56 13,0 0.51 3/8
3/4 – 16 UNF -12 19,1 0.75 17,5 0.69 1/2
7/8 – 14 UNF -14 22,2 0.88 20,3 0.80 5/8
1.1/16 – 12 UN -17 27,0 1.06 24,9 0.98 3/4
1.3/16 – 12 UN -19 30,2 1.19 28,2 1.11 7/8
1.5/16 – 12 UN -21 33,3 1.31 31,2 1.23 1
1.5/8 – 12 UN -26 41,3 1.63 39,1 1.54 1.1/4
1.7/8 – 12 UN -30 47,6 1.88 45,5 1.79 1.1/2
2.1/2 – 12 UN -40 63,5 2.50 61,5 2.42 2
Thread size is actual measurement of male thread and pitch is Threads Per Inch (TPI).
